Dual Acting Hydraulic Piston Cylinders for Engineering Truck / Transportation Machinery


Hydraulic cylinders:
Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.


Description:

Double-acting , hydraulic return
Safety valve built-in prevents damage in case of accidental over-pressurization
Unique bearing design withstands side load forces up to 10% of rated cylinder capacity without scoring
Dismountable hardened grooved saddles are standard
Baking varnished external coating and specially plated piston
Base mounting holes are standard on each model
Plunger wiper reduces contamination, extending cylinder life

Custom Order Notice:
We have more items for this Series,please Contact usfor details.

Capacity 50 - 1000 ton
Stroke 50 - 10000 mm
Max. Working Pressure 900 bar

Custom hydraulic cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example

FAQ:

Q1: Are you a manufacturer or a trader?
We are a manufacturer ,our own factory is located in Shandong province,China.
Q2: How do you protect customer's right?
Dallast's work habit is to sign confidential agreement with own/outside factories all the time before start any project.
Q3: How long shall we get the quotation?
Processing time for Enquiries :1-3 days.
Q4: What is your payment term?
Payment term:
1)Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.
2)Samples: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.
3)Products: 30% prepaid as order deposit;70% paid before EX-work.
Q5: Will we have the property of the tooling?
Yes,tooling's cost is one-time charge,the property of toolings will be yours after pay off all the charges.
Q6: What shall we do if the quality is not meet our requirement?
If that is the case after we re-test,we can repay the payment or re-produce until it reach the quality.
Parameter:
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method



The product can be used on agricultural handling equipment ,such as agricultural tractors, Agricultrual farm Truck, agricultural carriage car, agricultural fork lift truck.

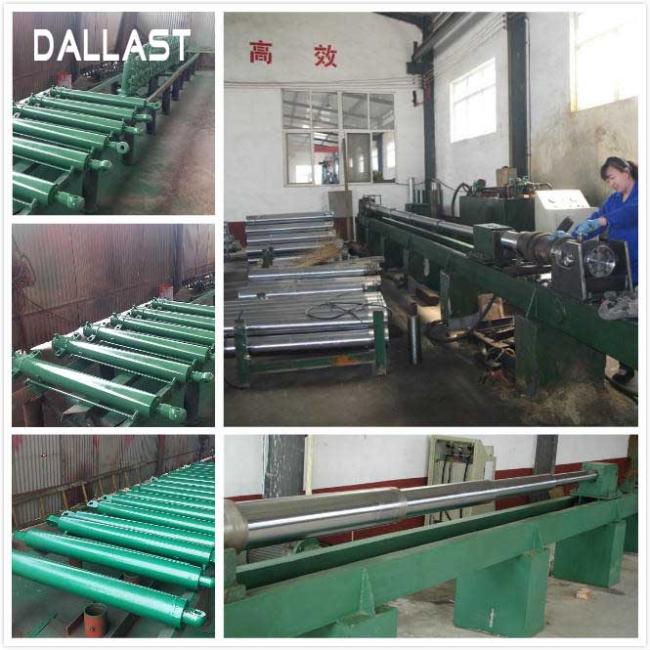

Product Show:
