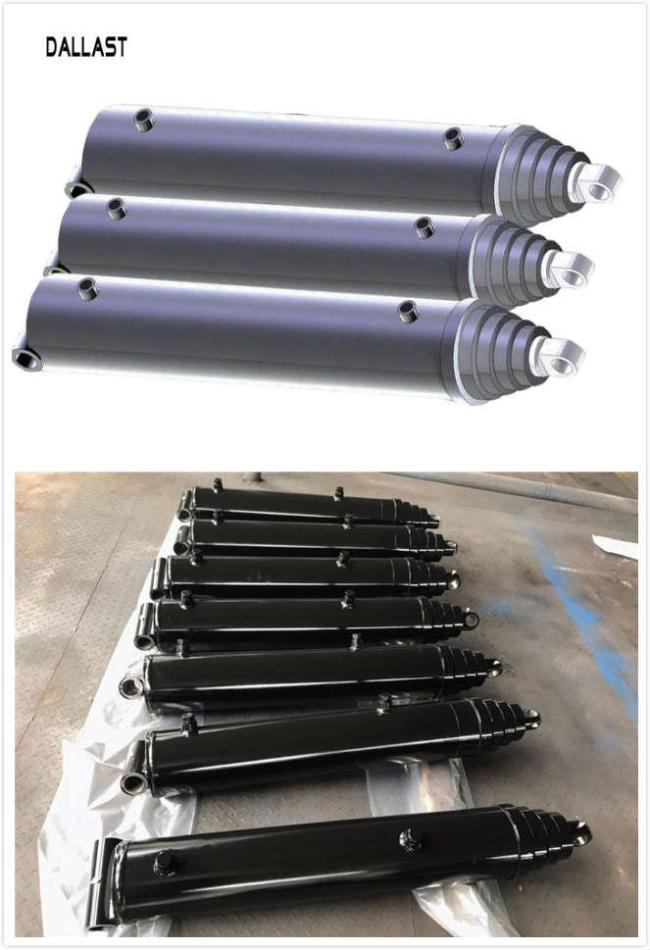

Bore x 176.50’’ Stroke Custom Hoist Single Acting Telescopic Cylinder 4 Stage
Bore x 176.50'' Stroke Custom Hoist Single Acting Telescopic Cylinder 4 Stage
Single acting cylinders transfer force and motion in one direction only; good quality and low noise; the oil way design perfectly and can save the energy, avoid wast; acts on the piston to push the piston rod out
| Description | |
| Mode | 84-4466-180-8 |
| Cylinder Tube OD | 9.12'' |
| Operating Pressure | 2,000 psi |
| # of Stages | 4 |
| Largest Moving Stage Diameter | 8.00'' |
| Stoke | 176.50'' |
| Closed | 59.50'' |
| Extended | 236.00'' |
| Base Mount Width | 9.50'' |
| Base Mount Diameter | 2.12'' |
| Plunger Mount Diameter | 2.03'' |
| Oil Capacity Fill Gal(L) | 4.6(17.8) |
| Oil Capacity Extended Gal(L) | 25.9(100.4) |
| Dry Weight | 515 |
| Warranty | 12 months |
Self-Bleeding design
Pre-loaded v-packing with a self-adjusting wave
Spring energizer to maintain a continuous force on the packing
Threaded head nuts for added strength and field seal adjustment
Longer Bearing Length (overlap) for stability
Application:
The single acting telescopic hydraulic cylinders produced in DALLAST company are mainly used on: tipping trailer; dump truck; side tipping vehicle;compressed equipment,etc.
Features:
When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement; samples can be provide to you before starting cooperation; the most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.
We are factory and can assure the prompt delivery time
Packing can be customized, often using standard export wooden case packing
Piston rod: Material: 35#, SAE1045(45#), 35CrMo, 42CrMo4, etc. Technical Treatment:Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre.
Seal kits: Hallite, NOK, SKF, Parker etc.
Quality control:
1. We have professional quality control department,every step from raw material to finished product
is in the same factory,each procedure will be tested by professional inspector.
2. Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .
After hydraulic cylinder is assemblied , Pressure test would be carried out one by one.We ensure the
testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic
cylinder must be tested without any leakage.
Warranty:
We offer 12 months warranty.
From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.
Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.
And we can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.
