Self-Propelled Mixers Hydraulic Parts Gerotor Hydraulic Motor MP125
Self-Propelled Mixers Hydraulic Parts Gerotor Hydraulic Motor MP125

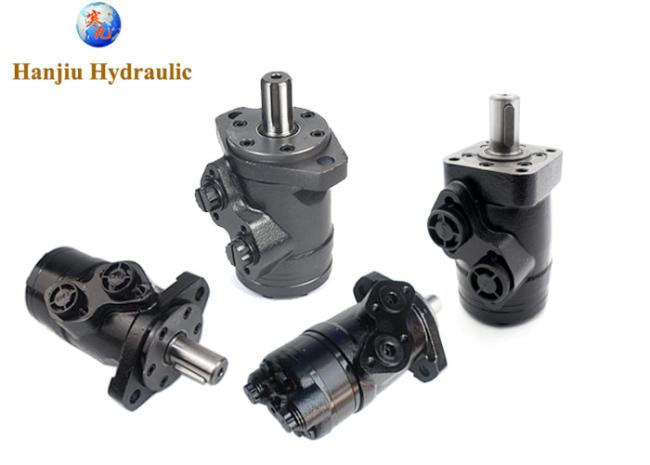

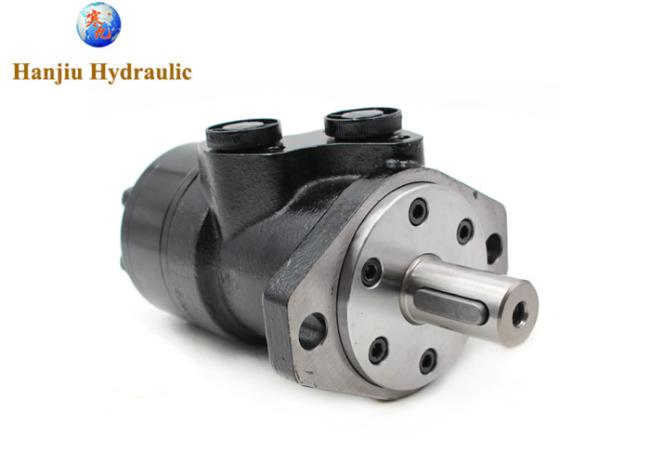

Hanjiu BMP-125 Orbital motors is widely used on self-propelled mixers,feed mixers
the speed and torque perfectly fit the machines, bring the new performance for the equipments
hydraulic gerotor motors specification as below:
- Displacement: 125cc
- Flange :2bolts flange,82.5mm pilot
- Shaft: keyshaft Ø25mm
- Ports: G1/2
- Drain port:G1/4
Specification:
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 |
|
HANJIU Technology is the best hydraulic geroler motors manufacturer from China, export to over 150 countries in the world, with quick leading time, excellent quality and 7/24 hours aftersales service
we are not suppling the hydraulic gerotor motors to hydraulic components distributors, but also machines producer, like auger/post hole diggers/trench/winch/mixers...
Hanjiu techonlogy always put customers right on the first, our products can keep your costs down, and the aftersales service will gurant that our products quality, and we will keep our promise, always benefit the clients
Due to the In the highly competitive environment and the stagnant global economy, Hanjiu is definitely your best partner!
fiting for below brands:
Jaylor
Kverneland
Kuhn
Faresin
Supertino
Almetech
Zago
