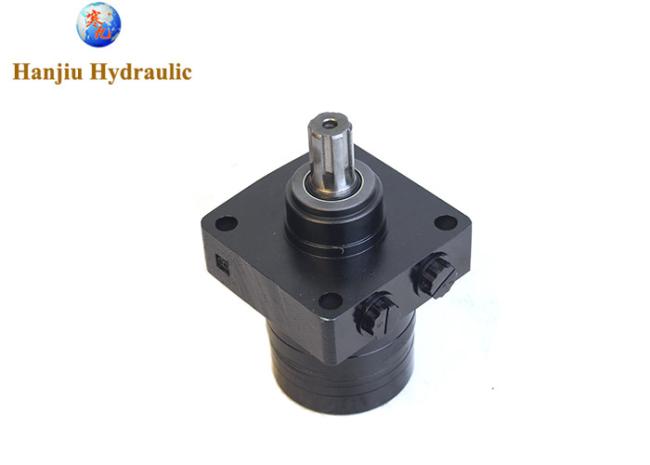

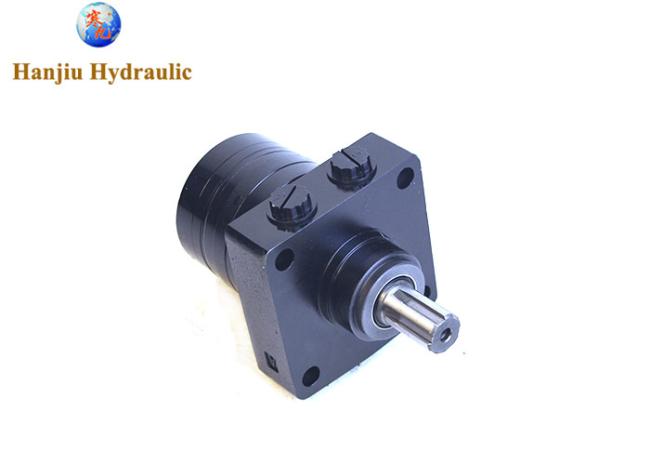

Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange
Hydraulic Wheel Motor,65 cm3/rev,1"6B spline shaft , wheel mounting flange,Parker TE series
Quick review:
Drop in equivalent to TE0065US1100AAAA Parker low speed, high torque hydraulic motor. 4.0 cu. in. / rev displacement. Maximum pressure 140bar continuous, maximum pressure 190bar intermittent. Torque 125N.m. continuous, torque 165N.m. intermittent. Maximum speed 667 RPM continuous. Flow rate 45l/min,1" spline 6B shaft . 7/8-14 SAE ports. 4bolts wheel mounting flange. 1 year warranty.
LSHT Torqmotors
Manufacturer: Hanjiu
This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque. Robust
roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure
shaft seals, robust roller bearings and high flow shaft seal cooling.
Details specifications
| Series: | TE |
| Shaft: | 1" spline shaft |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0065 |
| Mounting: | 4 Bolts wheel mounting flange |
| Ports: | 7/8-14 SAE |
| Geometric Displacement: | 65 cm3/rev (4.0 in3/rev) |
| Maximum Speed: | 842 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 45 lpm (12 gpm) / 57 lpm (15 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 140 bar (2030 PSID) / 190 bar (2750 PSID) |
| Maximum Supply Pressure: | 200 bar (2900 PSID) |
| Maximum Torque - Continuous / Intermittent: | 390 Nm (3452 lb in) / 528 Nm (4673 lb in) |
| Maximum Performance: | 17.4 KW (23.4 HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 312 Nm (2762 lb in) / 411 Nm (3637 lb in) |
| Maximum Side Load at Key: | 6650 N (1500 lb) |
The motor is available in 15 displacements from 36 cc/rev to 392 cc/rev: TE0036 | TE0045 | TE0050 | TE0065 | TE0080 | TE0100 | TE0130 | TE0165 | TE0195 | TE0230 | TE0260 | TE0295 | TE0330 | TE0365 | TE0390
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
