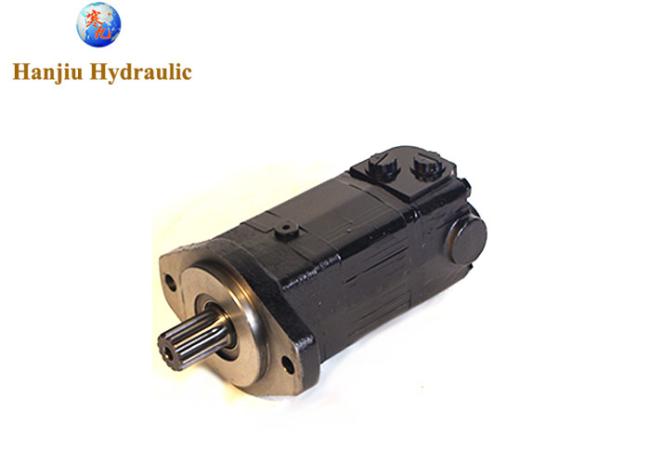

Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange
Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR,2 Bolt SAE B Flange,1 1/4 Inch Involute SAE C Splined
Specification:
104-1215-006
M02240AF04AA0100010000000AAAAF
Disc Motor
Geroler
Disc Valve
| DISPLACEMENT | 400CC |
|
SERIES
|
2000 Series |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | 1 1/4 Inch Involute SAE C Splined |
| DRAIN | 7/16 -20 UNF-2B SAE O-ring Drain Port |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 191 rpm @ 20 gal/min |
| FLOW RATE | 20 gal/min |
| RPM [MAX] | 287 rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | STANDARD, 2 BOLT; 101.6 [4.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 146.0 [5.75] DIA. BOLT CIRCLE. SAE B |
| SPLINES | 1 1/4 Inch Involute SAE C Splined |
| PORT SIZE | SAE-10, 7/8-14 UNF |
| MOTOR TYPE | Disc Valve |
| MOUNT TYPE | 2 Bolt |
TYPES WE SUPPLY :
| 104-1001-006 | 104-1002-006 | 104-1003-006 | 104-1004-006 | 104-1005-006 |
| 104-1006-006 | 104-1007-006 | 104-1143-006 | 104-1023-006 | 104-1024-006 |
| 104-1025-006 | 104-1026-006 | 104-1027-006 | 104-1028-006 | 104-1228-006 |
| 104-1420-006 | 104-1030-006 | 104-1031-006 | 104-1032-006 | 104-1033-006 |
| 104-1034-006 | 104-1035-006 | 104-1229-006 | 104-1422-006 | 104-1038-006 |
| 104-1039-006 | 104-1040-006 | 104-1041-006 | 104-1042-006 | 104-1043-006 |
| 104-1044-006 | 104-1062-006 | 104-1063-006 | 104-1064-006 | 104-1065-006 |
| 104-1066-006 | 104-1067-006 | 104-1068-006 | 104-1421-006 | 104-1088-006 |
| 104-1089-006 | 104-1090-006 | 104-1091-006 | 104-1092-006 | 104-1093-006 |
| 104-1094-006 | 104-1423-006 | 104-1194-006 | 104-1195-006 | 104-1196-006 |
| 104-1197-006 | 104-1198-006 | 104-1199-006 | 104-1201-006 | 104-1202-006 |
| 104-1203-006 | 104-1204-006 | 104-1205-006 | 104-1206-006 | 104-1207-006 |
| 104-1209-006 | 104-1210-006 | 104-1211-006 | 104-1212-006 | 104-1213-006 |
| 104-1214-006 | 104-1215-006 | 104-1217-006 | 104-1218-006 | 104-1219-006 |
| 104-1220-006 | 104-1376-006 | 104-1377-006 | 104-1378-006 | 104-1379-006 |
| 104-1380-006 | 104-1381-006 | 104-1382-006 | 104-1383-006 | 104-1384-006 |
| 104-1385-006 | 104-1386-006 | 104-1387-006 | 104-1388-006 | 104-1389-006 |
| 104-1390-006 | 104-1391-006 |
Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
• Irrigation reels
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China
we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price
and best service. our aim is to make your hydraulic system is easy and affordable!
