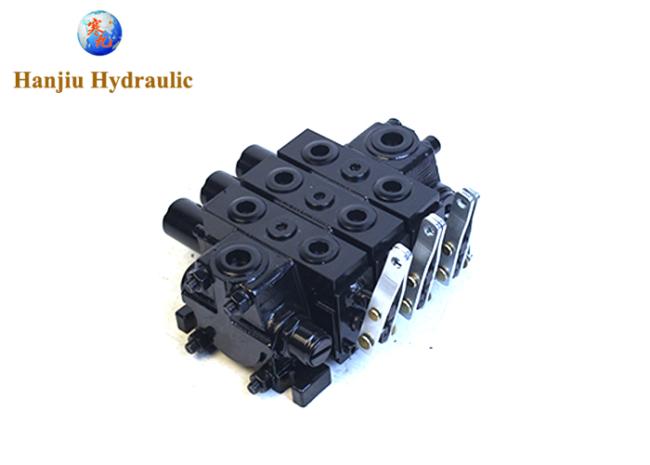

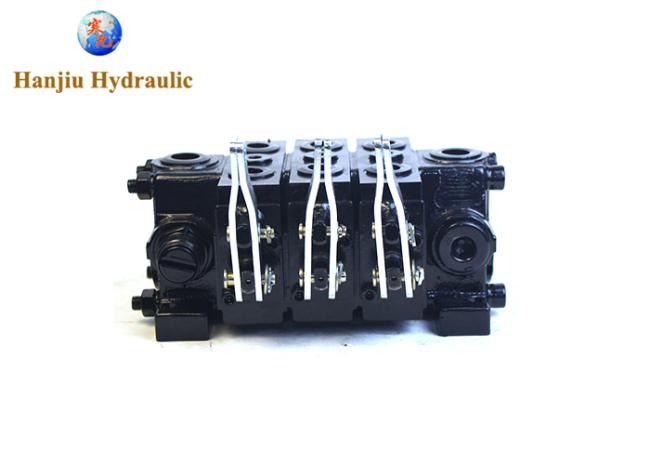

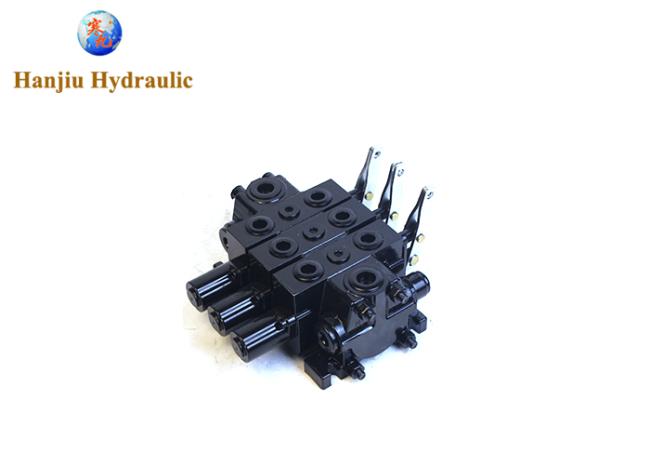

Hydrosila Section Control Valve MPC70 3 Levers 70l/Min
hydrosila section control valve MPC70, 3 levers,70l/min,detent control valve
Quick View:
Directional control valves MPC70 are used in hydraulic systems with the flow up to 70 l/min. The sectional design makes the valve flexible and easily adaptable to a variety of applications.
The open center directional valve is designed for hydraulic systems with fixed displacement pump.
Equipped with main relief valve and load check valve in each section.
Parallel hydraulic circuit.
Variety of 3 and 4 positions spools.
Manual control.
High pressure «carry-over» port is avaible..
Specification:
| SERIES | MPC70 |
| MAX FLOW LPM | 70 |
| MAX PUMP FLOW l/min | 70 |
| MAX WORKING PRESSURE bar | 315 |
| CONSTRUCTION | PARALLEL |
| NUMBER OF SECTIONS | 1 TO 10 |
| SPOOL ACTUATION | MANUAL, MECHANICAL JOYSTICK, CABLE, PNEUMATIC, HYDRAULIC PILOT |
| SECTIONAL STYLE | YES |
| SECTIONAL LOAD CHECK VALVE | YES |
| SERVICE PORT RELIEF | YES |
More series available:
| Type | Number of sections | Nominal flow rate | Max. inlet pressure (P) | Max. work port press. (A/B) |
| l/min | bar | bar | ||
| p40 | 1-8 | 45 | 250 | 320 |
| p80 | 1-8 | 80 | 250 | 320 |
| Hssd5 | 1-8 | 45 | 290 | 320 |
| Hssd11 | 1-8 | 75 | 280 | 320 |
| zt12 | 1-8 | 45 | 290 | 320 |
| zt20 | 1-8 | 90 | 280 | 320 |
| Hsv6 | 1-3 | 45 | 250 | 320 |
| Hsdv10 | 1 | 90 | 300 | 350 |
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Applications:
- Tractors
- Municipal vehicles
- Motor graders
