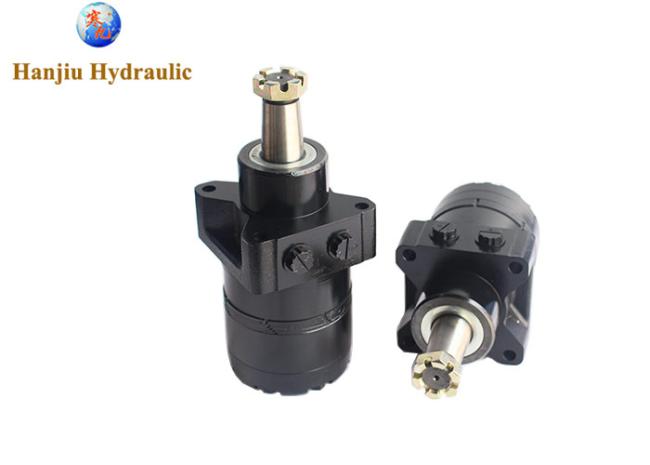

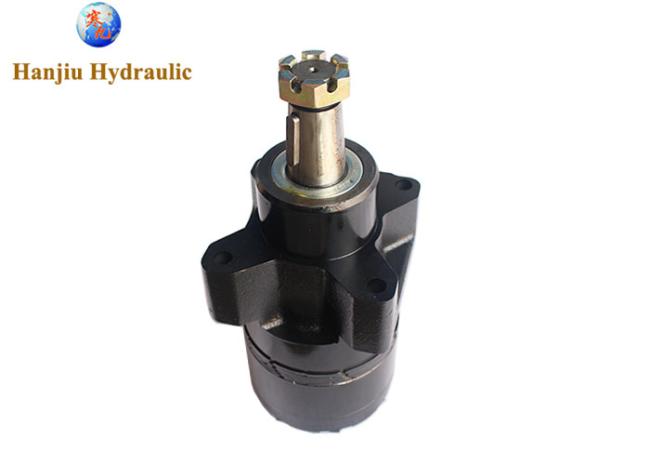

RE 520/521 Series High Torque Hydraulic Motor 520375W3125AJBLE BMER-4
White drive products RE 520/521 series torque hydraulic motor wheel motor 520375W3125AAAAA
HANJIU supply the Torqmotors BMER Series motors matching White RE series motors, the same function.
this type of motors are widely used on agricultral machines, platform equipment, lawn mower machines..
Details specifications
| Series: | TG |
| Shaft: | 1 1/4 tappered shaft |
| Rotation: |
Reverse Standard |
| Displacement (cm3/rev): | 375cc |
| Mounting: | Wheel, Standard |
| Geometric Displacement: | 22.8 in3/rev |
| Maximum Speed: | 200rev/min |
| Maximum Oil Flow (continuous / intermittent): | 75 lpm /90 lpm |
| Max. Differential Pressure (continuous / intermittent): | 205 bar / 240bar |
| Maximum Supply Pressure: | 276 bar |
| Maximum Torque - Continuous / Intermittent: | 990 Nm/ 1140Nm |
| Maximum Performance: | 19 KW |
Specificaion
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
As a young company, Hanjiu is obviously more dynamic and creative, and they put a lot of energy into innovation to ensure that Hanjiu's products can better meet the needs of consumers. More importantly, with the help of China's local advantages, the products produced by Hanjiu have lower cost, so the price is cheaper. Hanjiu has a lot of advanced equipment and excellent technicians, and it is also handy for the production of white wheel motor, not only the product quality is passable, but also the price is also right, which will definitely make you have a very good experience.
