Aftermarket Gerotor Hydraulic Motor Charlynn 4k 109-1450-006 Disc Valve
Price:
Start from 500 usd
MOQ:
1 Sets
Delivery Time:
15 - 45 work days
Brand:
HANJIU
Product Description

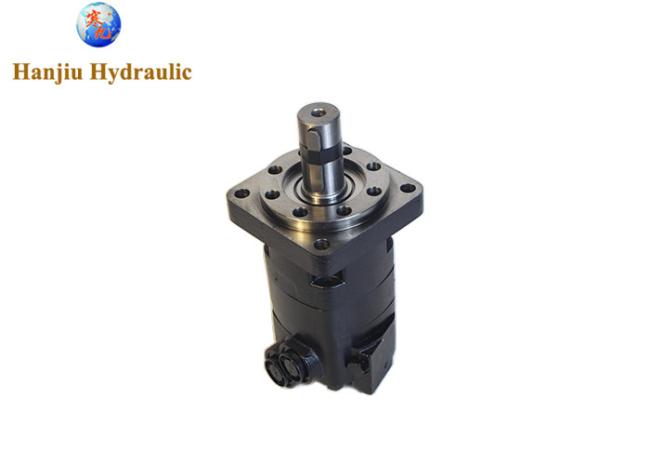

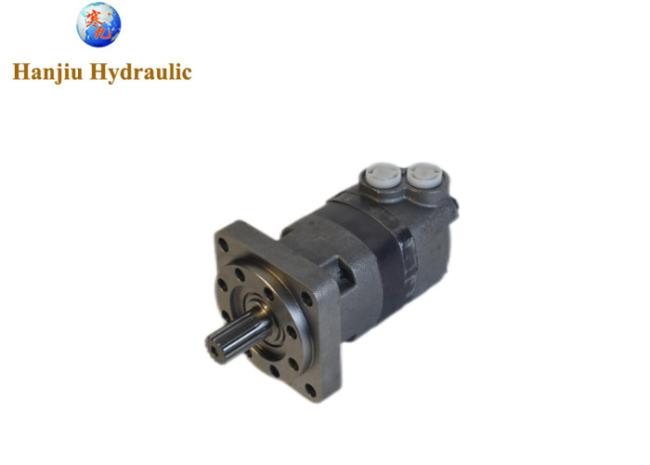

New aftermarket Gerotor hydraulic motor charlynn 4k 109-1450-006 Disc Valve Hydraulic Motors
Disc Motor
Geroler
Disc Valve
3/4 Split Flange Port
15.03 Cubic Inch Displacement Per Rev
Product details:
| MOTOR TYPE | Disc Valve |
| MOUNT TYPE | 4 Bolt |
| DISPLACEMENT (IN3/REV) | 15.03 |
| MOUNTING HOLE SIZE | 0.562 in |
| PORT SIZE | 3/4 unf |
| PAINT/PACKAGING | Individual Box |
| SHAFT SIZE & TYPE | Splined |
| RPM [MAX] | 383 rpm |
| SERIES | 4000 Series |
| MOTOR ELEMENT | Geroler |
| PILOT DIAMETER | 5 in |
| DRAIN | 0.4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| BOLT CIRCLE DIA. | 6 3/8 in |
| GEROTER/GEROLER OPTIONS | Standard |
| MATERIAL | Cast Iron |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 6240 in lb |
| PORT TYPE | Split Flange |
| FLOW RATE | 25 gal/min |
| WEIGHT | 46.16 LB |
Hanjiu Hydraulics regards honest service and product quality as the lifeline of the enterprise. We sell well at home and abroad, the markets include Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions. We are happy to be your hydraulic products partner, try us once, you will not regret it
