Hydraulic Geroler Motor DH80 For Winch Drive Motor 2 Bolts SAE Flange
Price:
Negotiable
MOQ:
50 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description

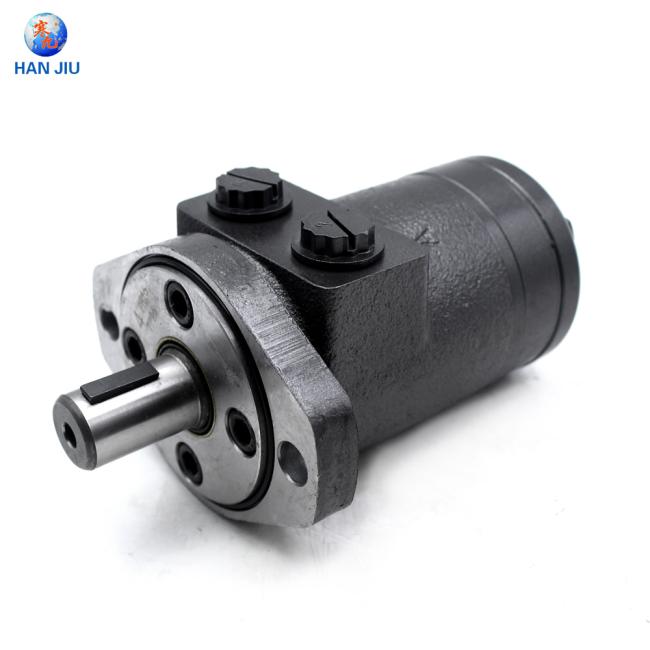

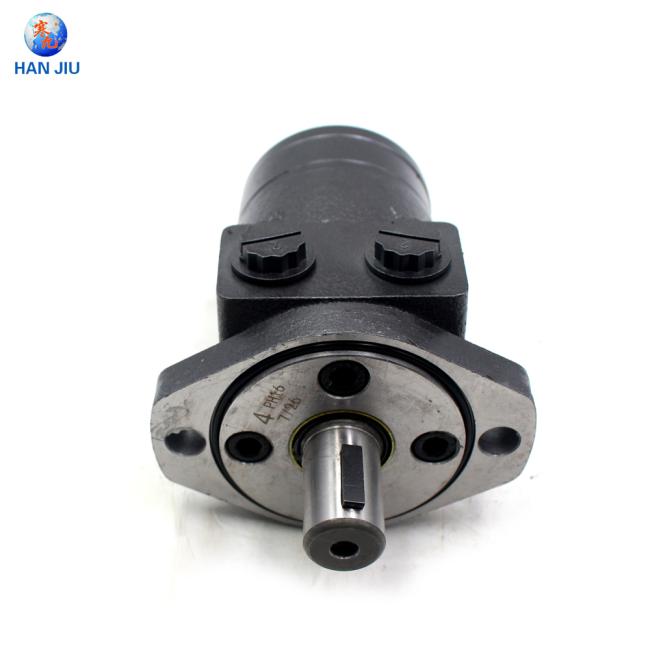

winch hydraulic gerotor motor DH 80, 2 bolts SAE flange, 7/16-20UNF side ports, 1" woodruff key shaft
Product details:
| type | BMPH |
| displacement | 80cc |
| flange: | 2-Bolts standard flange |
| shaft | Shaft Ø25.4, cylindrical shaft |
| oil port | 1/2-14 NPTF, 7/16-20UNF,BSPP 1/2" |
Main Specification
Technical data for BMPH with 25 and 1 in and 1 in splined and 28.56 tapered shaft
| Geometric displacement (cm3/rev.) | 77.7 | |
| Max. speed (rpm) | cont. | 770 |
| int. | 960 | |
| Max. torque (N•m) | cont. | 146 |
| int. | 186 | |
| peak | 218 | |
| Max. output (kW) | cont. | 10.0 |
| int. | 12.0 | |
| Max. pressure drop(MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max. flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.7 | |
The advantage of Bmp is that it can be started at low pressure, equipped with a reinforced shaft seal, has high starting torque and the ability to withstand huge back pressure, and the ability to transfer axial and radial loads. The overall volume is small and exquisite, and the installation is very convenient. After being upgraded by Hanjiu factory technicians, they also have a long lifespan and are very durable.
