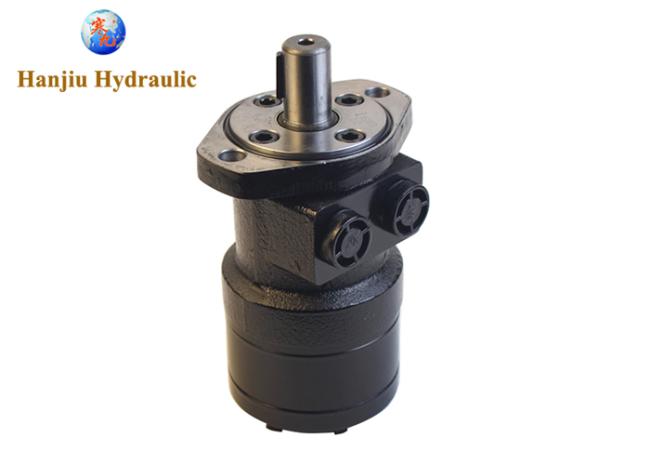

255 Series White LSHT Hydraulic Motor Equivalent 200 Ml/R 1'' Woodruff Key Shaft

Name: 255 Series White LSHT Hydraulic Motor Equivalent 200 Ml/R 1'' Woodruff Key Shaft
Brand: Shijiazhuang Hanjiu Technology Co.,Ltd

Price Negotiable

Price: Contact the seller to get a quote

MOQ: 100 Pieces

Delivery Time: 55 work days

Brand: HANJIU

Product Description

White 255 series hydraulic motor equivalent, 200 ml/r, 1'' woodruff key shaft, 1/2-14 nptf port

Quick review:

BMRS as equivalent of White 255 series, apply to OEMs and aftermarket

They are inexpensive, but excellent compatible with Eaton Charlynn H series

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

More WHITE Hydraulic Motor equivalent available:

WM	(125/126 Series)
WD	(145/146 Series)
WP	(155/156 Series)
RS	(200/201 Series)
WR	(255/256 Series)
WG	(277/278 Series)
WG	(280/281 Series)
WS	(350/351 Series)
WS	(355/356 Series)
WS	(357/358 Series)
CE	(420/421 Series)
CE	(430/431 Series)
RE	(500/501 Series)
RE	(520/521 Series)
RE	(530/531 Series)

About Hanjiu:

A manufacturing brand from China, specializing in low-speed high-torque motors, customer base includes wholesalers, importers, OEMs, they replace Danfoss, White, Eaton, Dana Brevini with Hanjiu low-speed high-torque motors. Hanjiu motors are not expensive, but high quality and fast delivery. We introduce Hanjiu as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion. If you are a hydraulic importers, contact us to talk work together.
