Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4 Hole Magneto Mount Aligned Ports
Price:
Contact the seller to get a quote
MOQ:
100 Pieces
Delivery Time:
55 work days
Brand:
HANJIU
Product Description

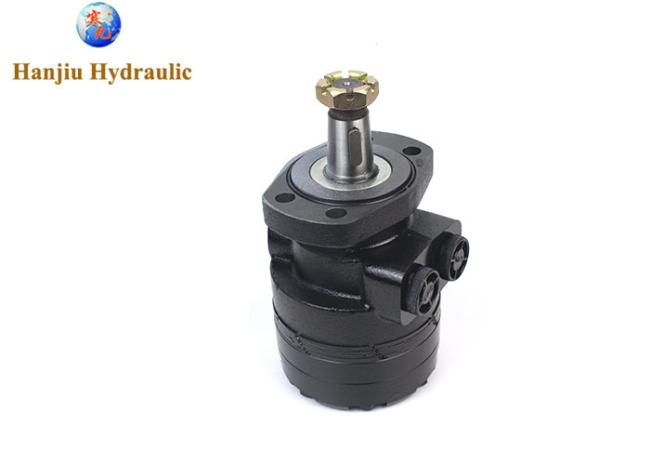

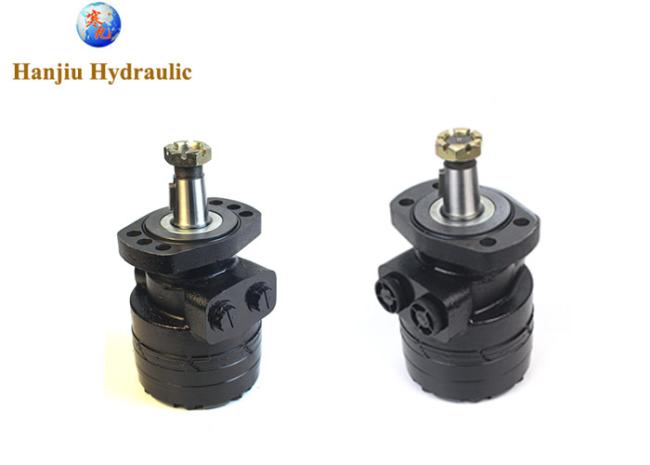

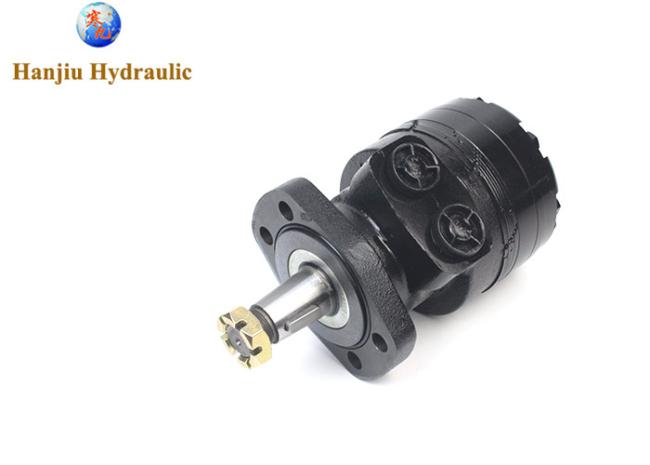

Danfoss RE 505/506 Series Medium Duty Hydraulic Motor 4-Hole, Magneto Mount, Aligned Ports
HANJIU supply the high Torqmotors BMER Series orbit motors matching white/danfoss/cross series motors, the same function,same specification, 100% interchangeable.
Details specifications
| Series: | RE505230A3822AAAAA |
| Shaft: |
31.75mm,tapered shaft
|
| Rotation: | Standard |
| Displacement (cm3/rev): | 230 |
| Mounting: | 4-Hole Magneto Aligned Ports 1/2” BSP.F |
| Geometric Displacement: | 230cm3/rev (14.2 in3/rev) |
| Maximum Speed: | 365 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 70lpm /85 lpm |
| Max. Differential Pressure (continuous / intermittent): | 20.5mpa/ 24mpa |
| Maximum Torque - Continuous / Intermittent: | 625cont. / 710int. |
| Maximum Performance: | 19 KW |
Main Specifications:
| Type |
BMER-2 125 |
BMER-2 160 |
BMER-2 200 |
BMER-2 230 |
BMER-2 250 |
BMER-2 300 |
BMER-2 350 |
BMER-2 375 |
BMER-2 475 |
BMER-2 540 |
BMER-2 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
Typical application:
Medium-duty wheel drives, augers, mixers, winch drives,
swing drives, grapple heads, feed rollers, broom drives
and more
