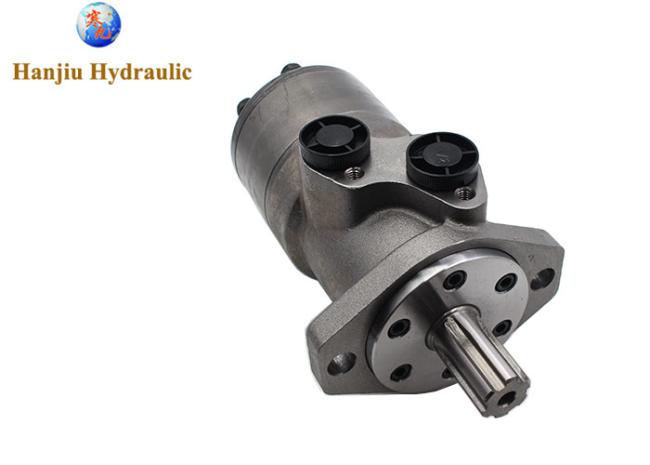

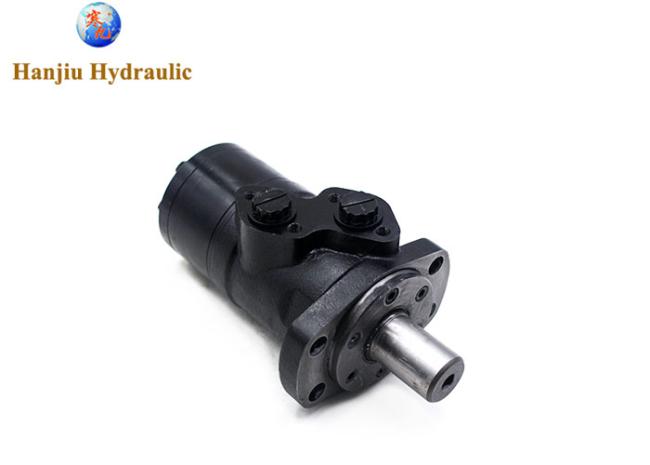

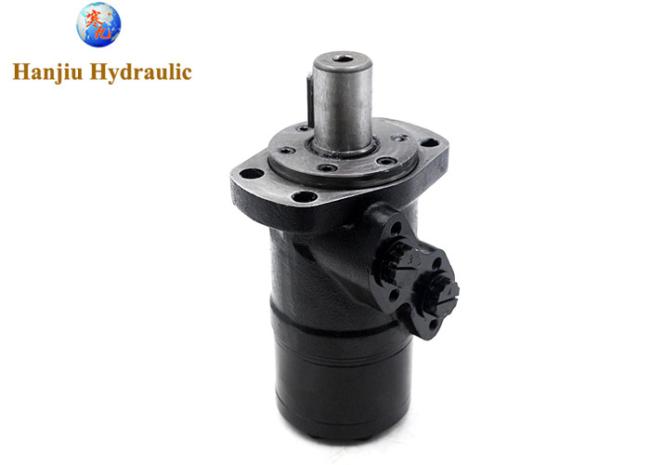

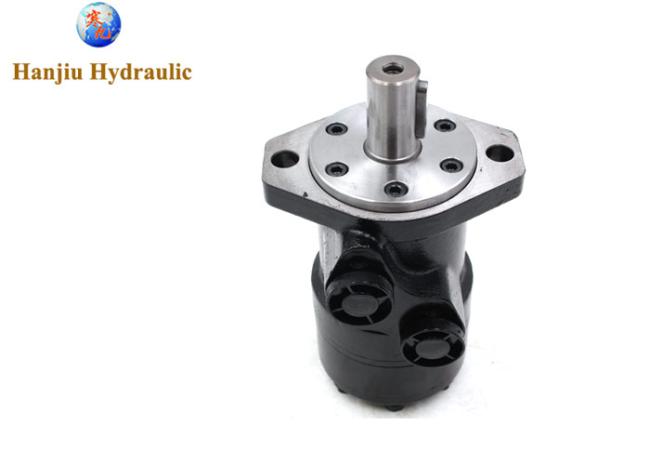

Mp315 Shaft 32mm Side Port Danfoss Omp 315 Motor Cylindrical Shaft 4 Bolt Oval Flange
mp315 Shaft 32mm side Port Danfoss Omp 315 Motor Cylindrical Shaft 4 Bolt oval Flange
Description:
Hanjiu BMP315 = Danfoss OMP315 =MP315
Specifications:
| Type | BMP |
| Displacement | 315CC |
| Shaft | 32MM Cylindrical |
| Flange | A4 OVAL FLANGE |
| Port Position | SIDE |
| Shaft Seal | High Pressure |
| Drain | Yes |
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 |
8 |
|
Hanjiu is an expert in the manufacture of hydraulic gear motors. As an established manufacturing company, Hanjiu's annual output exceeds 500,000pcs. If you have an existing hydraulic system that needs to be replaced or repaired, these hydraulic motors are ideal products. . There are light series hydraulic motors, heavy series hydraulic motors and other models to choose from.
Hanjiu produces a variety of products, including: BMP 50 hydraulic motor, BMSY 200 hydraulic motor, BMK6 200 hydraulic motor, etc. Hanjiu has been committed to improving product quality and customer reputation for more than ten years. We have a whole line of complete The assembly line and sales channels, our parts are transparent and complete from processing to sale. The research is committed to building an international brand and knocking on the door of the world's manufacturing industry with Chinese power. If you are willing to cooperate with us, please contact us , I believe we can be each other's partners.
