White WR 255 Series Hydraulic Motor 375ml/R 4 Bolt Flange 25.4mm Shaft SAE 6B Needle Bearing High Pressure Seal Kit

Price Negotiable
Price: 65 usd/pc
MOQ: 100 Pieces
Delivery Time: 45 - 55 work days
Brand: HANJIU
Product Description



white 255 series Hydraulic Motor 375ml/r, 4 bolt flange, 25.4mm shaft SAE 6B, needle bearing, high pressure seal kit





Quick review:

Hanjiu BMRS series = White Drive Hydrualic Motor 255 series

Product Low Speed, High Torque (LSHT) Motor
Model No. BMRS-375
Displacement 375cc
Flange 4 bolt square

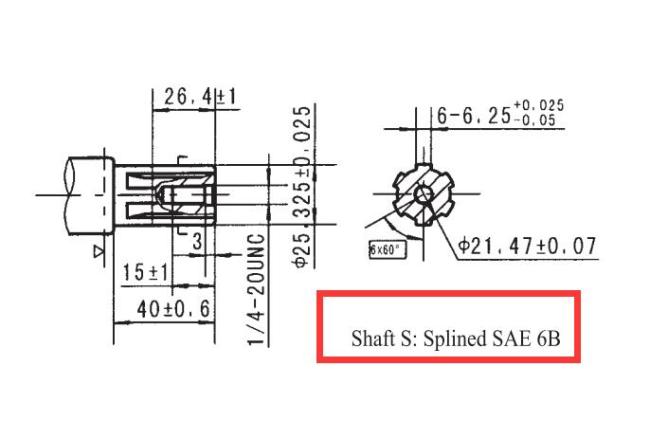

Shaft 25.4mm shaft SAE 6B,
Port 7/8-14 O-ring
Rotation Standard
Color Black
Brand Hanjiu





Specification:



Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

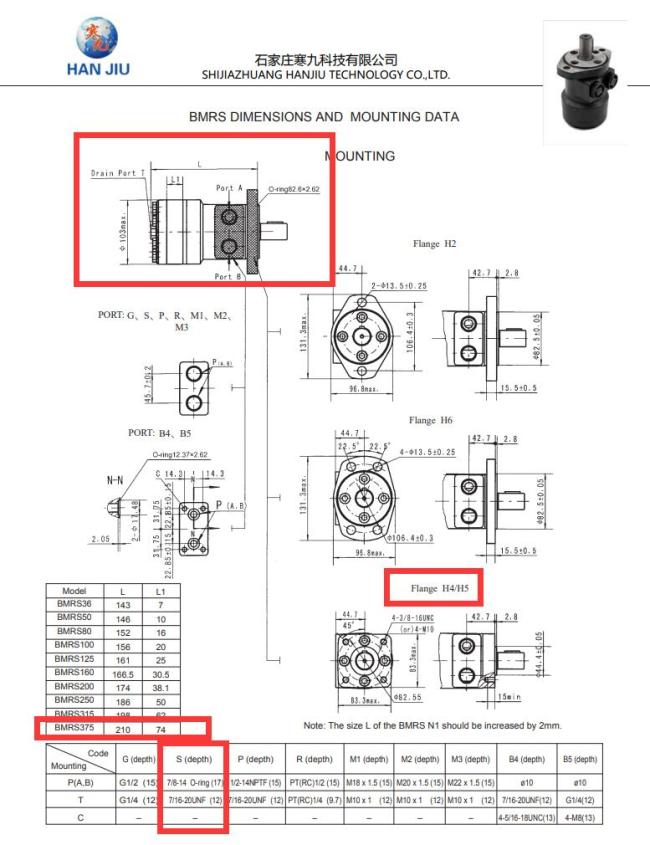

Dimentions:

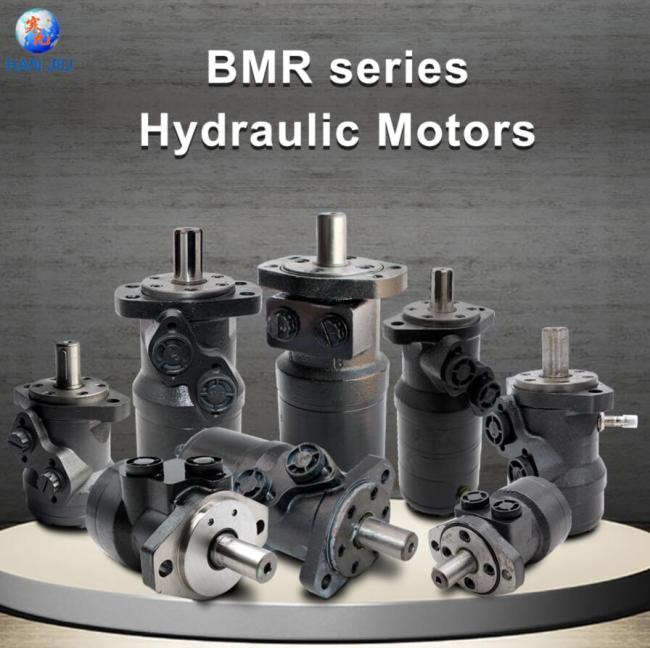

More BMRS series available to match and replace White Drive Hydraulic Motors:









Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!





  • WHITE Hydraulic Motors
    • WM (125/126 Series)
    • WD (145/146 Series)
    • WP (155/156 Series)
    • RS (200/201 Series)
    • WR (255/256 Series)
    • WG (277/278 Series)
    • WG (280/281 Series)
    • WS (350/351 Series)
    • WS (355/356 Series)
    • WS (357/358 Series)
    • CE (420/421 Series)
    • CE (430/431 Series)
    • RE (500/501 Series)
    • RE (520/521 Series)
    • RE (530/531 Series)
