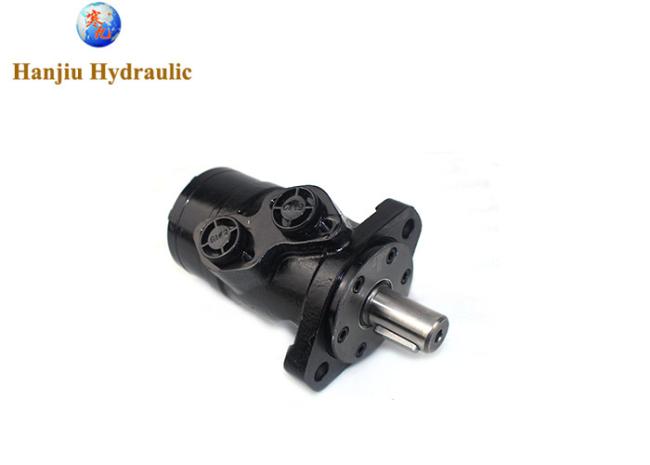

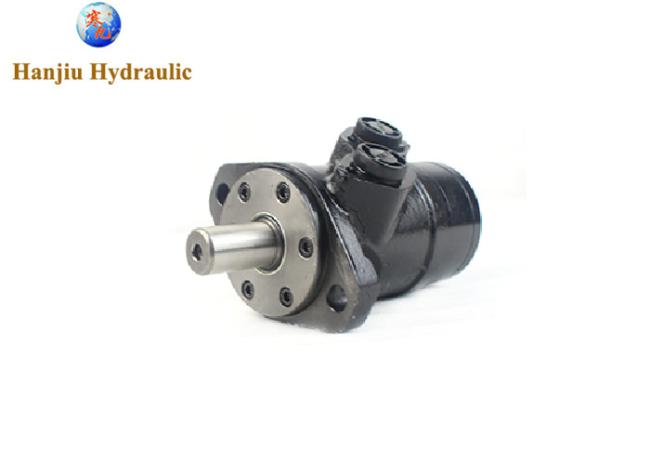

Eaton Xcel Gerotor Low Speed High Torque Motors 016-0357-002 Omp Hydraulic Motor
eaton xcel gerotor low speed high torque motors 016-0357-002 omp hydraulic motor
Hanjiu technology supply the BMP Series motors, matching Danfoss OMP hydraulic motors,
and Eaton XCEL Gerotor motors, same specification, same quality.
hydraulic motors specification as below
BMP-80-2-A-D=016-0357-002
- Displacement: 80cc
- Flange:2 bolts flange, Ø82.55mm
- Shaft: Straight key25mm, paralle key 6.35x6.35x31.75
- Ports: G1/2
- Drain port:G1/4
Specifications:
| Type | BMP BMPH BMPW 36 |
BMP BMPH BMPW 50 |
BMP BMPH BMPW 80 |
BMP BMPH BMPW 100 |
BMP BMPH BMPW 125 |
BMP BMPH BMPW 160 |
BMP BMPH BMPW 200 |
BMP BMPH BMPW 250 |
BMP BMPH BMPW 315 |
BMP BMPH BMPW 400 |
BMP BMPH BMPW 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
other types order code :
016-0206-002
016-0207-002
016-0208-002
016-0227-002
016-0230-002
016-0231-002
016-0246-002
016-0252-002
016-0253-002
016-0254-002
016-0255-002
016-0256-002
016-0257-002
016-0258-002
016-0259-002
016-0260-002
016-0262-002
016-0355-002
016-0356-002
016-0357-002
016-0358-002
016-0359-002
016-0360-002
016-0361-002
016-0362-002
016-0363-002
016-0364-002
016-0365-002
016-0396-002
