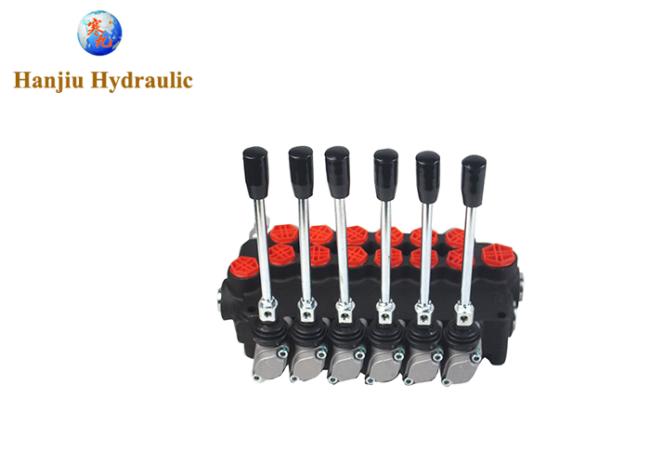

Badestnost Hydraulic Monoblock Valve 6p80 1a1a1a1a1a1a1gkz1,G3/4 Bsp Ports Spring Control Type
BADESTNOST hydraulic monoblock valve 6P80 1A1A1A1A1A1A1GKZ1,G3/4 BSP Ports spring control type
Product details:
P80 - series
A - spool diagram
1 - spool centering with springs
G - type of connecting thread: P, A, B - G1/2; T, N - G3/4
KZ1 - type of manual control
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 80 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
P80 A1GKZ1
P80 A8GKZ1
2P80 1A1A1GKZ1
2P80 1A8A8GKZ1
3P80 1A1A1A1GKZ1
3P80 1A8A8A8GKZ1
4P80 1A1A1A1A1GKZ1
4P80 1A8A8A8A8GKZ1
5P80 1A1A1A1A1A1GKZ1
5P80 1A8A8A8A8A8GKZ1
6P80 1A1A1A1A1A1A1GKZ1
6P80 1A8A8A8A8A8A8GKZ1
Based on the characteristics of Hydraulic Directional Valve, Hanjiu here reminds everyone that some factors need to be considered when ordering: valve type, valve flow rate, valve pressure, valve control mode, valve structure, installation and connection, and the availability of accessories. Substitutability (for example, whether original equipment components are replaceable) and dielectric compatibility. Finally, there are some conventional interface dimensions, weight, etc. You can rest assured of the reputation of Hanjiu hydraulic products. We accept appointments for factory visits. Each product has a long service life and is easy to repair and maintain. We provide one-stop solutions and look forward to cooperating with you.
