Low Speed High Torque Hydraulic Motors Parker Te0065 Wheel Drive Motor 31.75 Mm Tapered Shaft 7/8-14 O Ring Ports

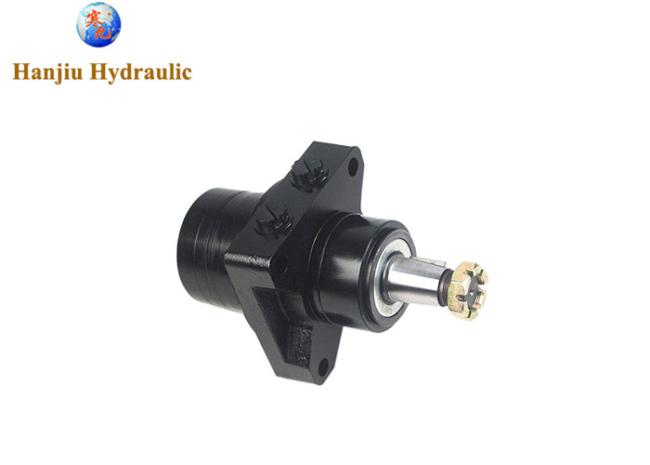

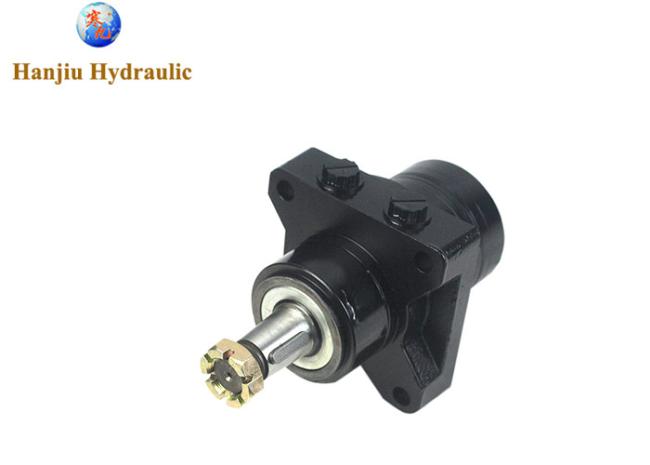

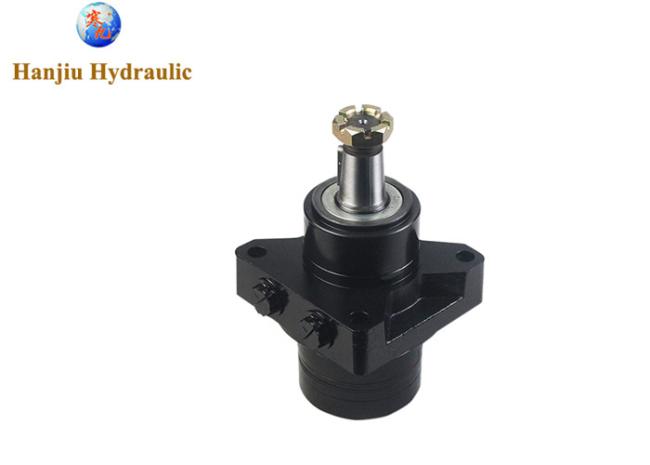

Low Speed High Torque Hydraulic Motors Parker TE0065 wheel drive motor 31.75 mm tapered shaft,
7/8-14 O-Ring port
Quick review:
The HANJIU BMJ Series Torqmotor is a durable low speed, high torque hydraulic motor. It is ideal for light duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotation.
Features and benefits include:
Roller bearings
Robust construction for longer life
Continuous oil flow across internal splines for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal as standard
Innovative design eliminates the need for a drain
Hanjiu BMJ motors
| Series: | BMJ motors |
| Shaft: | 1.25" Tapered shaft |
| Rotation: |
Standard rotation |
| Displacement (cm3/rev): | 0065 |
| Mounting: | Wheel mounting |
| Geometric Displacement: | 65cm3/rev (4.0 cu in / rev) |
| Maximum Oil Flow (continuous / intermittent): | 45 lpm / 57lpm |
| Max. Differential Pressure (continuous / intermittent): | 140 bar / 190bar |
| Maximum Supply Pressure: | 200 bar |
| Maximum Torque - Continuous / Intermittent: | 126 Nm / 176Nm |
| Maximum Output(continuous / intermittent) | 8.3 KW /13.9kw |
Main Specifications:
| Type | BMJ 65 |
BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | |||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
The motor is available in 15 displacements from 36 cc/rev to 392 cc/rev:
replace Parker TE0036 | TE0045 | TE0050 | TE0065 | TE0080 | TE0100 | TE0130
| TE0165 | TE0195 | TE0230 | TE0260 | TE0295 | TE0330 | TE0365 | TE0390

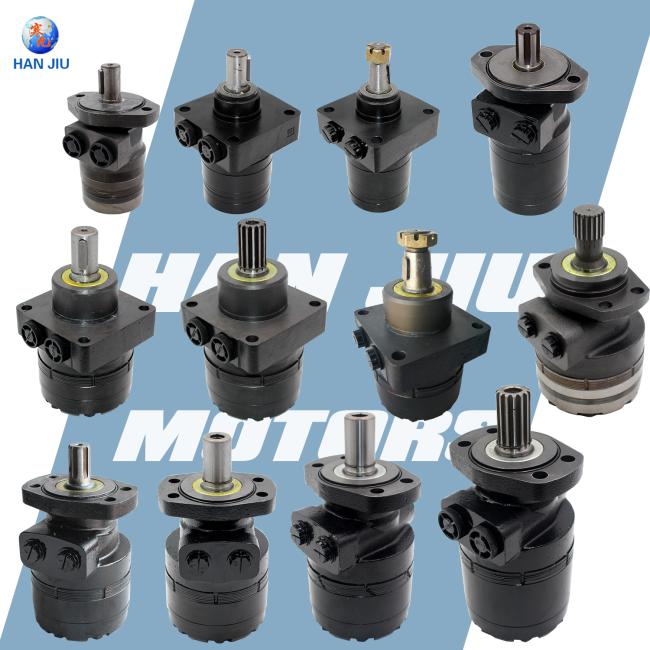

More PARKER TORQMOTORS
