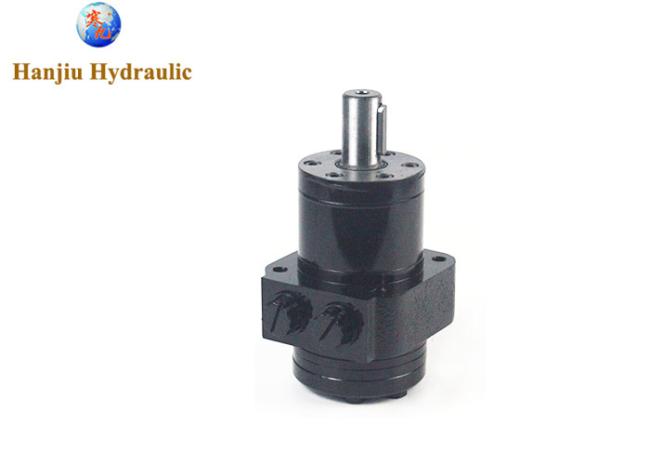

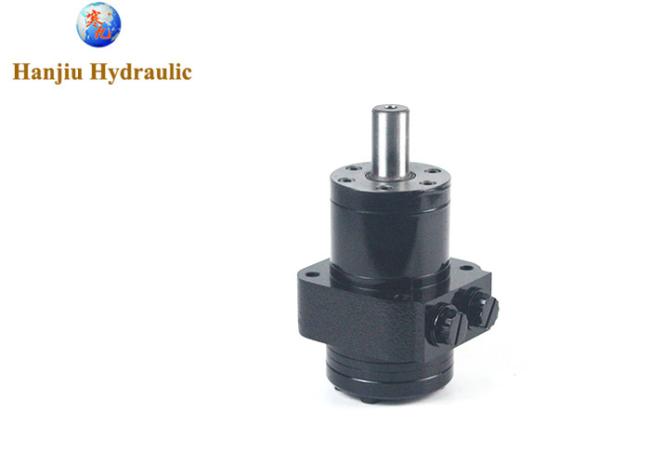

Spool Valve Mp36 Hydraulic Wheel Drive Motor With Straight Key Shaft 36cc Gerotor Motor
spool valve hydraulic motors MP36 Wheel Drive Motor With Straight Key Shaft 36cc Gerotor Motor
Hanjiu BMPWN-36 motors has the same specification of below types
hydraulic motors specification as below:
- Displacement: 36cc
- Flange :wheel Ø103mm
- Shaft: key 25 mm straight shaft
- Ports: M22
- Drain port:M14
Specification:
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 |
|
also matching type
| types | OMPW 50 | OMPW 80 | OMPW 100 | OMPW 125 | OMPW 160 | OMPW 200 | OMPW 250 | OMPW 315 | OMPW 400 |
| Cylindrical shaft 25 mm | 151-7101 | 151-7102* | 151-7103 | 151-7104* | 151-7105 | 151-7106 | 151-7107 | 151-7108 | 151-7109 |
| Tapered shaft 28,5 mm | 151-5301 | 151-5301 | 151-5301 | 151-5301 | 151-5301 | 151-5301 | 151-5301 | 151-5301 | 151-5301 |
Hanjiu hydraulic orbit motors include BMP, BMR, BMS, BMT, BMV, etc., 100% of which can be used to replace
Danfoss, Eaton CHAR-LYNN, M+S, etc. Looking forward to your purchase, Hanjiu will provide you with the most comfortable service.
