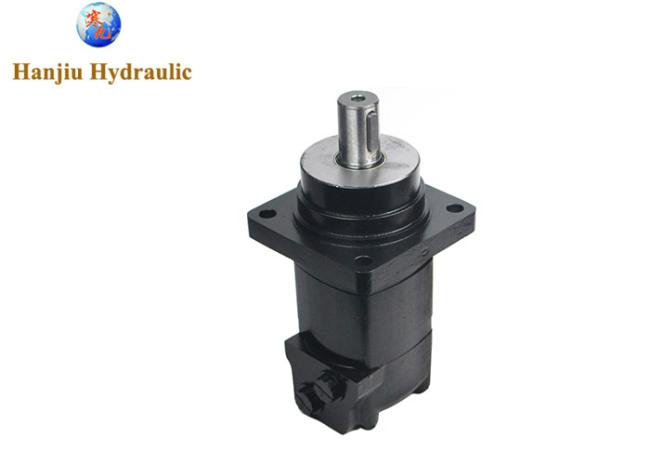

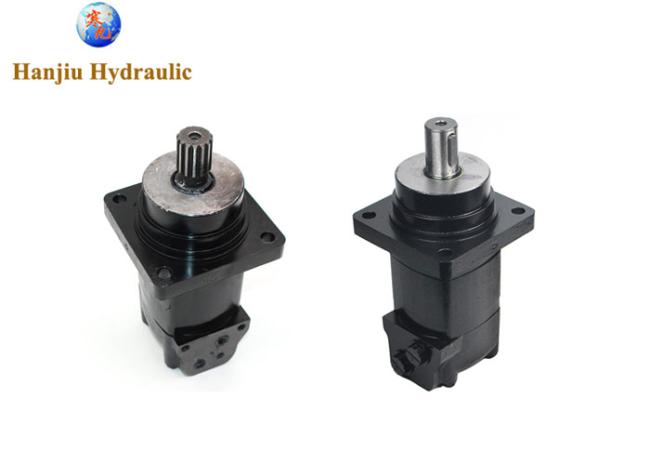

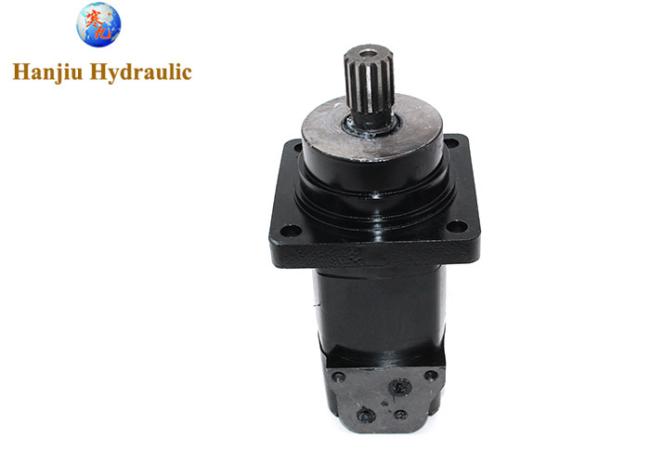

Charlynn 2k Hydraulic Wheel Drive Motor 105-1094-006 Low Speed High Torque
Price:
Start from 95 usd
MOQ:
100 Sets
Delivery Time:
35 - 45 work days
Brand:
HANJIU
Product Description
Charlynn 2k Motor 105-1094-006 Wheel Drive Motor Low Speed High Torque Hydraulic Motor
Specification:
| DISPLACEMENT | 315CC |
|
SERIES
|
2000 Series |
| PORT LOCATION | 12.70 [.500] AND 15.88 [.625] DIA. MANIFOLD PORTS WITH 3X .375-16 UNC-2B PORT BLOCK MOUNTING HOLES |
| SHAFT TYPE | 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH |
| DRAIN | .4375-20 UNF-2B SAE O-RING PORT |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 191 rpm @ 20 gal/min |
| FLOW RATE | 20 gal/min |
| RPM [MAX] | 287 rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | WHEEL, 4 BOLT; 108.0 [4.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 147.6 [5.81] DIA. BOLT CIRCLE. 127.0 [5.00] DIA. REAR MOUNT PILOT |
| TYPE | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 125CC | 160CC | 200CC | 250CC | 315CC | 400CC | 475CC | ||
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
TYPES WE SUPPLY :
105-1134
105-1135
105-1136
105-1137
105-1138
105-1139
105-1140
105-1141
105-1001
105-1002
105-1003
105-1004
105-1005
105-1006
105-1007
105-1060
105-1152
Applications
• Skid Steer Attachments
• Swing Motor
• Brush Cutters & Mowers
• Harvesting Equipment
• Directional Boring any place pressure relief protection is optimal for system or motor performance and life
• Turf equipment
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China
we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price
and best service. our aim is to make your hydraulic system is easy and affordable!
Eaton motor
Low speed high torque motor
LSHT motor
charlynn 2k motor
wheel drive motor
hydraulic orbital motors
