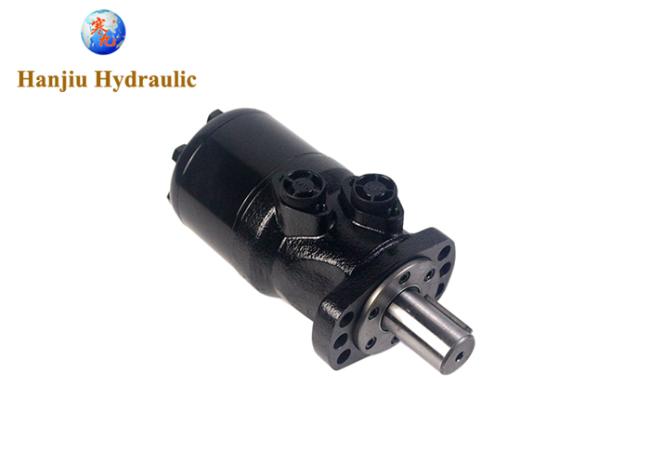

Omh 500cc Orbit Hydraulic Motor 830-1170nm 35mm Cyclindrical Shaft
Product Description:
BMH500-6-M-D-B(35MM)Hanjiu hydraulic motor is a type of motor designed for reliable operation in any hydraulic system. The motor features a unique design that allows it to deliver high torque at low speed, making it ideal for a variety of applications. The motor has a shaft type that can be spline, taper, or cylindrical. It also has a rated torque of between 155 - 185 rpm, and is covered by a 1-year warranty.
Features:
- Product Name: Low Speed High Torque Hydraulic Motor
- Rated Speed: 155 - 184 rpm
- Max Flow: 75 - 90 L/min
- Displacement: 500 ml/r
- Max Pressure: 18MPa
- Mounting Type: 4×Ø13.5 Rhomb×flange Pilot Ø82.5×6
- Feature: replace Danfoss OMH, replace M+S MH
Technical Parameters:
| Parameter | Value |
|---|---|
| Brand | Hanjiu |
| Warranty | 1 Year |
| Displacement | 500ml/r |
| Temperature Range | -20℃~80℃ |
| Control Type | Hydraulic |
| Weight | 13kg |
| Vibration Level | ≤0.2mm/s |
| Shaft Type | Cylindrical |
| Rated Speed | 155 - 184 rpm |
| Noise Level | ≤80dB |
| Rated Torque | 830 -1170Nm |

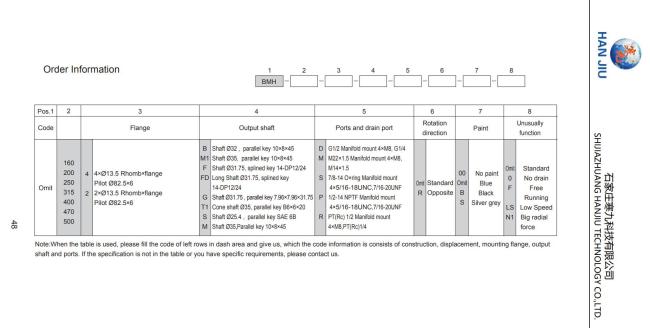

Drawing:
Applications:
Hanjiu BMH500-6-M-D-B (35MM) Low Speed High Torque Hydraulic Motor is an ideal choice for applications requiring high torque at low speeds. The motor is specifically designed to fit Danfoss OMH and M+S MH series motors, providing optimal performance and reliability. It offers a maximum flow of 75 - 90L/min, a rated speed of 155 - 184rpm, and a noise level of ≤80dB. Mounting types include 2 hole and 4 hole, and shaft types include spline, taper and cylindrical. All Hanjiu products are CE and ISO certified, and are available with a minimum order quantity of 100 pcs. Prices start at 115 per motor, and delivery time is 25-35 days. Payment terms are 30% deposit, with the balance due before shipping. Hanjiu also offers a supply capacity of 20000 pcs/month.
Customization:
Brand Name: Hanjiu
Model Number: BMH500-6-M-D-B (35MM)
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 100 PCS
Price: 115
Packaging Details: Standard export package
Delivery Time: 25 - 35 days
Payment Terms: 30% deposit, balance before shipping
Supply Ability: 20000 pcs/month
Temperature Range: -20℃~80℃
Noise Level: ≤80dB
Warranty: 1 Year
Type: Low Speed High Torque Hydraulic Motor
Control Type: Hydraulic
Support and Services:
We provide the highest quality technical support and service for our Low Speed High Torque Hydraulic Motor. Our expert team of engineers is available to provide comprehensive advice and solutions for any related issue.
We provide a wide range of services, including installation and commissioning of Low Speed High Torque Hydraulic Motors, maintenance and repair, and troubleshooting of any operational issues. We also provide advice on product selection, installation, and operation.
Our technicians are available 24/7 to provide prompt and reliable service. We are committed to providing our customers with the highest quality service and support.
