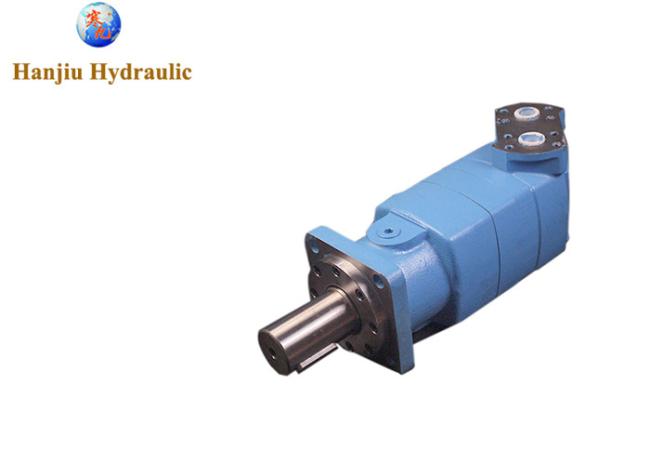

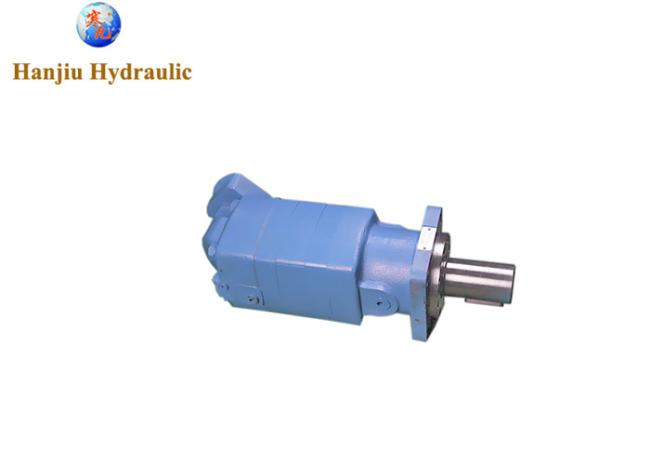

Low Speed Gerotor / Geroler Char Lynn 119-1041-003 Motor For Port Equipment
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description
Low-Speed Gerotor/Geroler charlynn 119-1041-003 motor for Port Equipment
Product details:
- Disc Motor
- Geroler
- Disc Valve
- 7/16-14 UNC-2B Split Flange Port
- 29.26 Cubic Inch Displacement Per Rev
DESCRIPTION
- Disc-valve, hydraulic motor built for high torque and low speed.
APPLICATIONS
- Boring, Industrial, Metal Forming, Port Equipment, Saw Mill
FEATURES
- Standard type
- Lowest pressure drop motor in the industry
- Highly-efficient Geroler motor provides energy savings
| Main Specification | ||||||
| Type | BMK10 | BMK10 | BMK10 | BMK10 | ||
| 345 | 480 | 665 | 940 | |||
| Geometric displacement | 345 | 480 | 665 | 940 | ||
| (cm3 /rev.) | ||||||
| Main speed(rpm) | cont. | 501 | 354 | 254 | 179 | |
| int. | 784 | 552 | 396 | 279 | ||
| Max torque N.M | cont. | 1040 | 1475 | 2085 | 2700 | |
| int. | 1390 | 1965 | 2610 | 3440 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | |
| int. | 27.5 | 27.5 | 27.5 | 27.5 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | ||
| 119-1028 |
| 119-1032 |
| 119-1044 |
| 119-1040 |
| 119-1029 |
| 119-1033 |
| 119-1045 |
| 119-1041 |
| 119-1030 |
| 119-1034 |
| 119-1046 |
| 119-1042 |
| 119-1047 |
| 119-1035 |
| 119-1043 |
| 119-1031 |
