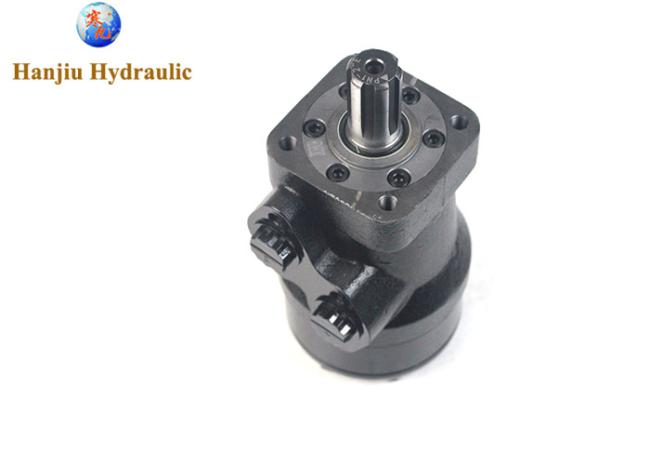

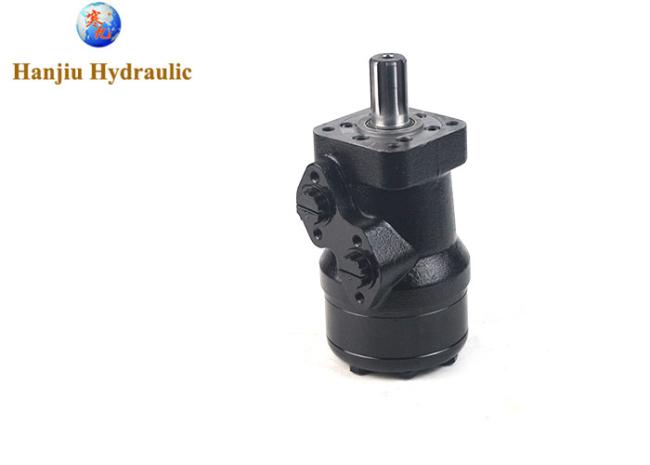

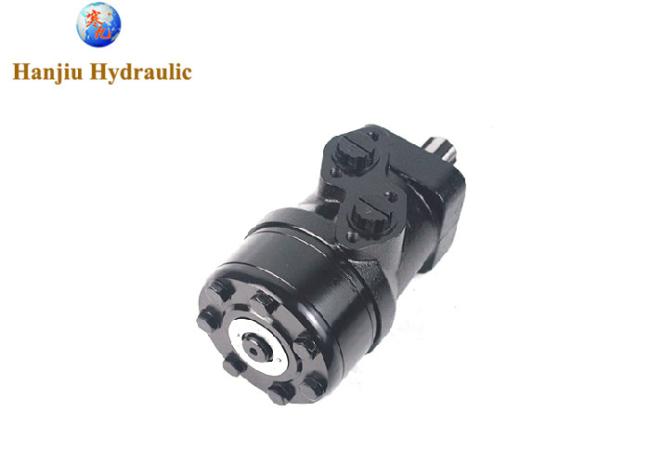

Mrq160sh Hydraulic Orbit Motor Square Flange Sae 6b Shaft With Needle Bearing
MRQ160SH Hydraulic orbit motor square flange SAE 6B shaft with needle bearing
Product details:
| product type | BMR motors,OMR160,MR160 spool valve motor |
| displacement | 160cc |
| flange | square flange-4bolts |
| shaft | SAE 6B shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Hanjiu Technology provides services for walking, steering, power transmission and lifting systems, and our main industry is to provide hydraulic system solutions. The hydraulic motor application range perfectly covers agricultural tractors, garden tractors, dump trucks, forklifts, combine harvesters, fishing, sweepers, water tanks, trailers, cranes, truck cranes, excavators, loaders, bulldozers, machine tools and other light, medium and heavy equipment. In addition to industrial use, our motors can also be used to replace 100% of original international brands, such as Danfoss, Char Lynn, M+S, Rexroth and other series brands. Because the hydraulic motors sold by Hanjiu are manufactured with the most advanced technology and equipment, they are of high quality, more compact in structure, smaller in size and low in noise. It can also be personalized for customers, so it is favored by customers from all over the world. Every motor for sale, from design, processing, production, assembly, testing to after-sales, Hanjiu has established a perfect quality system to ensure that they are delivered to customers in full compliance with our commitments.
Hanjiu Technology Company can provide you with corresponding products according to the application of various industries, and have the ability to provide high-quality hydraulic motors for you in large quantities, and you will buy our products at a very preferential price. We look forward to receiving your inquiry and we will reply as soon as possible within 24 hours.
