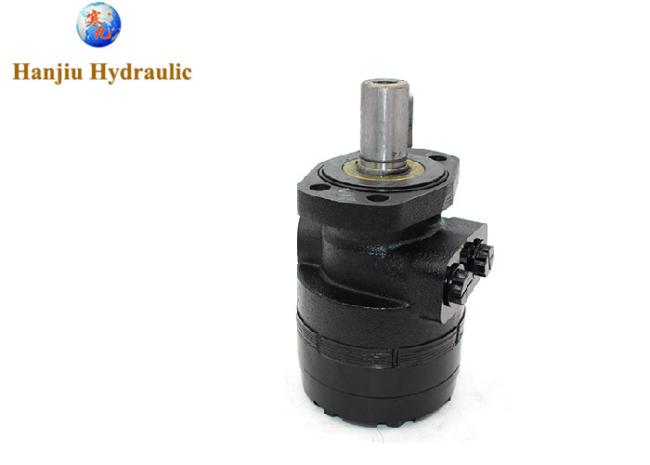

500120a3120baaaa Replacement Hydraulic Motor Parker Tg White Danfoss 500 Series Torqmotor
500120A3120BAAAA Replacement Hydraulic Motor Parker TG White Danfoss 500 Series Torqmotor
Part Number:
500120A3120BAA
BMER-2-125-MS-G2-R-B LSHT Hydraulic Motor
4 Bolt Magneto Mount
7.4 Cu In. Displacement (125cc)
1-1/4" Keyed Shaft
#10 SAE ports (7/8-14 UNF)
Replaces the following brands and model numbers
Dynamic : BMER-2-125-MS-G2-R-B
White: 500120A3120BAAAA
White:505120A3120AAAAA
Parker:TG0125ES030AAAA
Specifications:
| CODE | DISPLACEMENT | CONT MAX | INTER MAX | CONT MAX FLOW | INTER MAX FLOW lpm (gpm) | CONT MAX TORQUE Nm (lb-in) | INTER MAX TORQUE Nm (lb-in) | CONT MAX PRESSURE BAR (psi) | INTER MAX PRESSURE BAR (psi) | PEAK MAX PRESSURE BAR (psi) |
| cc (in3/rev) | SPEED rpm | SPEED rpm | lpm (gpm) | |||||||
| 120 | 121 (7.4) | 360 | 490 | 45 (12) | 61 (16) | 327 (2900) | 383 (3400) | 207 (3000) | 241 (3500) | 276 (4000) |
| 160 | 162 (9.9) | 370 | 470 | 61 (16) | 76 (20) | 475 (4200) | 542 (4800) | 207 (3000) | 241 (3500) | 276 (4000) |
| 200 | 204 (12.4) | 300 | 370 | 68 (18) | 83 (22) | 542 (4800) | 633 (5600) | 207 (3000) | 241 (3500) | 276 (4000) |
| 230 | 232 (14.2) | 260 | 320 | 68 (18) | 83 (22) | 644 (5700) | 712 (6300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 260 | 261 (15.9) | 260 | 350 | 76 (20) | 91 (24) | 712 (6300) | 791 (7000) | 207 (3000) | 241 (3500) | 276 (4000) |
| 300 | 300 (18.3) | 250 | 320 | 83 (22) | 95 (25) | 825 (7300) | 938 (8300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 350 | 348 (21.2) | 220 | 270 | 83 (22) | 95 (25) | 921 (8150) | 1045 (9250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 375 | 375 (22.8) | 200 | 250 | 76 (20) | 91 (24) | 1006 (8900) | 1158 (10250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 470 | 465 (28.3) | 160 | 200 | 76 (20) | 91 (24) | 1096 (9700) | 1184 (10475) | 172 (2500) | 189 (2750) | 207 (3000) |
| 540 | 536 (32.7) | 140 | 170 | 76 (20) | 91 (24) | 983 (8700) | 1243 (11000) | 138 (2000) | 172 (2500) | 207 (3000) |
| 750 | 748 (45.6) | 100 | 130 | 76 (20) | 91 (24) | 1062 (9400) | 1237 (10950) | 103 (1500) | 121 (1750) | 138 (2000) |
A hydraulic torqmotor is a type of hydraulic motor that converts hydraulic energy into mechanical energy to drive a load. It is commonly used in various industrial applications, such as construction machinery, agricultural equipment, and material handling systems.
The hydraulic torqmotor works on the principle of fluid power, utilizing the force of a pressurized hydraulic fluid to generate rotational motion. The motor consists of a housing, an output shaft, and a set of gears or pistons. When hydraulic fluid is supplied to the motor, it enters the housing and applies pressure to the gears or pistons, causing them to rotate.
One of the key advantages of a hydraulic torqmotor is its ability to provide high torque output at low speeds. This makes it ideal for applications that require heavy lifting or high power transmission. Additionally, the motor can operate in both directions, allowing for bidirectional rotation and precise control.
Another benefit of the hydraulic torqmotor is its compact size and lightweight design. Compared to other types of motors, such as electric motors, the hydraulic torqmotor offers a higher power-to-weight ratio, making it more suitable for mobile and space-constrained applications.
Moreover, the hydraulic torqmotor is highly efficient, with minimal energy loss during operation. This is due to the hydraulic fluid being non-compressible, ensuring that the power transmitted from the fluid to the motor is maintained without significant losses.
Maintenance of a hydraulic torqmotor is relatively simple. Regular inspection and lubrication of the gears or pistons, as well as monitoring the hydraulic fluid levels, help ensure optimal performance and prolong the motor's lifespan.
In conclusion, the hydraulic torqmotor is a versatile and efficient hydraulic motor that finds widespread use in various industrial applications. Its ability to provide high torque output, compact size, and bidirectional rotation make it a preferred choice for many industries. With proper maintenance, the hydraulic torqmotor can offer reliable and long-lasting performance.
HANJIU brand hydraulic torque motor, affordable, fine quality, strong logistics capabilities make it easy for people all over the world to own.
