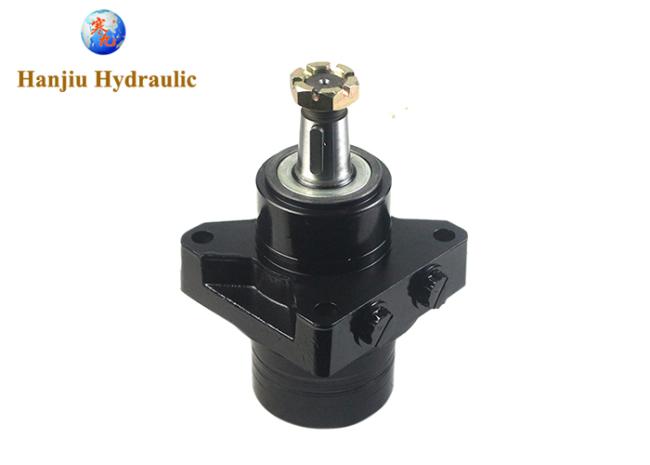

Parker Tj Series Replacement Motor 65 Ml/R Wheel Flange Taper Shaft
Parker TJ series replacement motor from China manufacturer Hanjiu, 65 ml/r, wheel flange, Taper shaft
Quick review:
Hanjiu BMJ-65 = Parker TJ065 apply to Turf equipment
Also BMJ series with more mounting and shaft apply to Scissors lifts, Boom lifts, mowers, Greens mowers, Sand trap rakes, Railroad maintenance equipment, Industrial sweepers and floor polishers, Skid steer attachments and many more.
Specification:
BMJ-65-WS-T3
- Displacement: 65cc
- Flange : 4-13.5 Wheel flange, pilot 82.55*7
- Ports: 7/8-14 O-ring
- Shaft: cone-shaft 31.75mm
Specification:
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max.pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 |
|

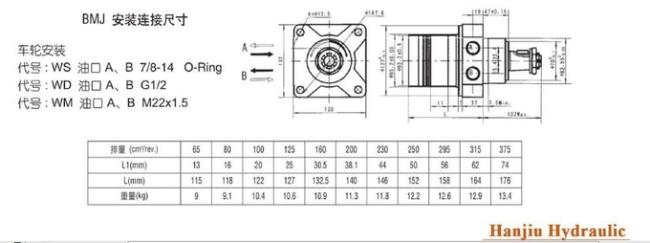

Dimentions:
More BMER series to match Parker TF series

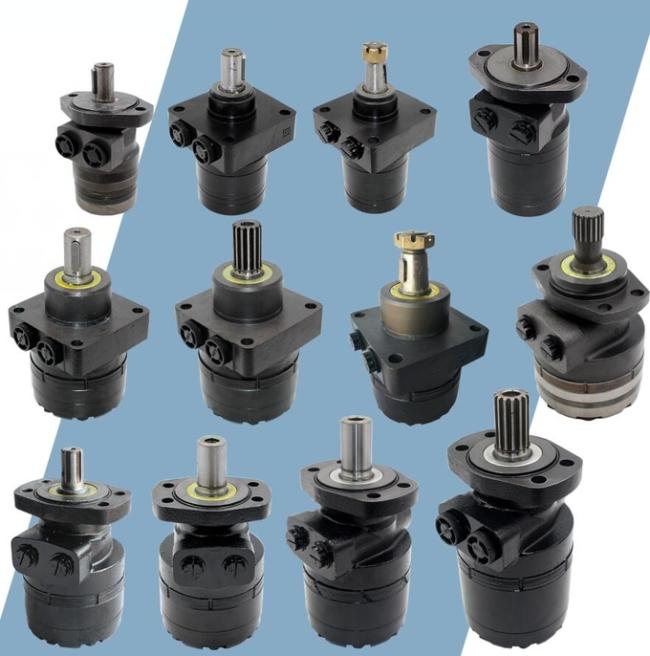

More Parker replacement motor available:
- TE
- TB
- TC
- TF
- TG
- TJ
- TK
More hydraulic motors available:
About Hanjiu:
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
