Hydraulic Motor 6673411 For Bobcat Snowblower SB240 2118 2418 SB200 6673411H

Price Negotiable
Price: Start from 95 usd
MOQ: 100 Sets
Delivery Time: 35 - 45 work days
Brand: HANJIU
Product Description

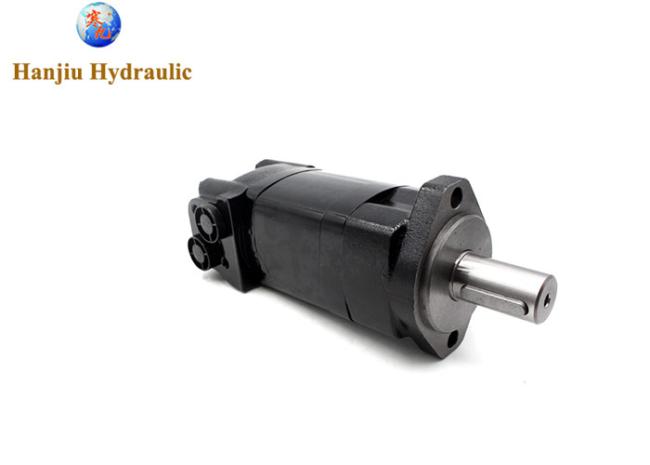

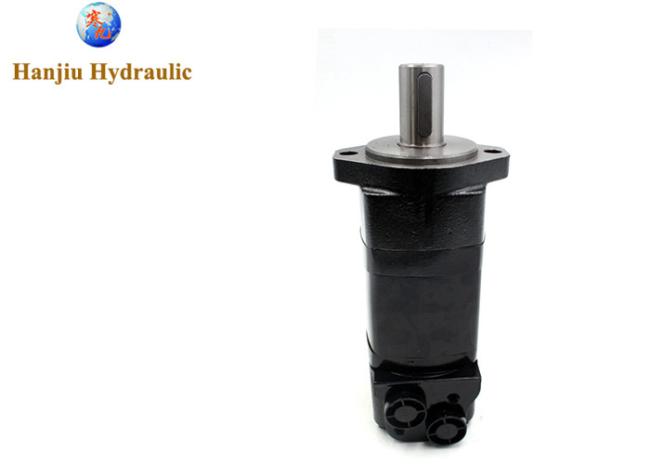

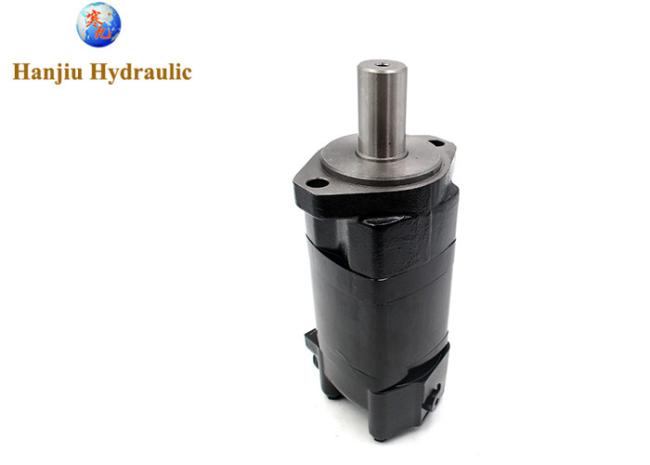

 Hydraulic Motor 6673411 For Bobcat Snowblower SB240 2118 2418 SB200 6673411H



Hanjiu technology offer the hydraulic low speed high torque motor, BMK2 series motors for snowblower

perfect performance for this machines



the details as below



type code :104-3578-006

hanjiu code :BMK2-400-E2-G-D

Specification:

DISPLACEMENT 400CC
SERIES
2000 Series
PORT LOCATION Side Port, Staggered
SHAFT TYPE 31.75 [1.250] DIA. STRAIGHT SHAFT WITH .375-16UNC-2B THREAD IN END, 7.938 [.3125] SQ X 31.75 [1.250] STRAIGHT KEY
DRAIN 7/16-20unf
MAXIMUM SPEED @ CONTINUOUS FLOW 191 rpm/287rpm
FLOW RATE 75l/min
RPM [MAX]  287rpm
DUTY Standard-Duty
GEROTER/GEROLER OPTIONS Standard
MOUNTING TYPE STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A
PORT SIZE 7/8-14 UNF-2B SAE O-RING PORTS
MOTOR TYPE Disc Valve

























Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
• Irrigation reels



HANJIU hydraulic motor expert, rich specifications, rapid manufacturing, reasonable price, perfect service, looking forward to your consultation.

our participation
Integrity: Our hydraulic motors create added value for the distributors by cutting their costs,sloving their current problems,bringing excelent service and solid products
Simplicity: Our orbit motors are safe, simple to operate and easy to maintain.
Versatility: Our hydraulic motors ,have different types, different flange and shaft, meet for multiusage
Stability: Our hydraulic motors are produced with strictly quality control, greatly satified for the customers, generating a return on investment and growth.
