Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Price:
Negotiable
MOQ:
50 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description

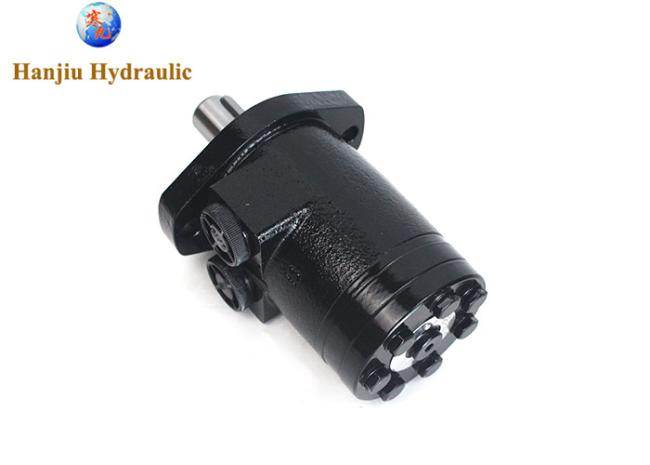

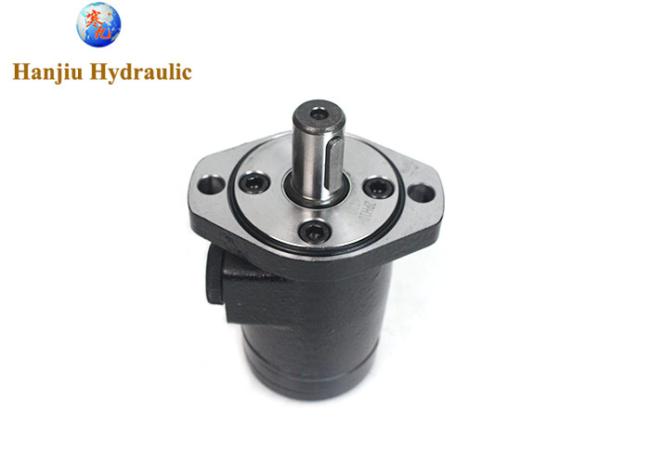

charlynn 101-1195-009 hydraulic gerotor motor, 100cc, 2 bolts flange with straight key shaft high torque motor
HANJIU Technology supply the BMPH series motors, code BMPH-100-H2R-A-G, matching Eaton charlynn H series 101-1195-009
with needle bearing , high torque motor,and flange rotate 90 degrees
Details:
- Displacement: 100cc
- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
- Ports: G1/2 (A & B), G1/4(T)
| Geometric displacement (cm3/rev.) | 100cc | |
| Max. speed (rpm) | cont. | 615 |
| int. | 770 | |
| Max. torque (N•m) | cont. | 182 |
| int. | 227 | |
| peak | 264 | |
| Max. output (kW) | cont. | 11.0 |
| int. | 13 | |
| Max. pressure drop(MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max. flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.9 | |
-
Benefits:• High efficiency• Powerful compactpackage• Design flexibility• Extended leak-freeperformanceApplications:• Agricultural augers,harvesters, seeders• Car wash brushes• Food processing• Railroad maintenanceequipment• Machine tools• Conveyors• Industrial sweepers andfloor polishers• Saw mill works• Turf equipment• Concrete and asphaltequipment• Skid steer attachments
EATON Hydraulic Motors
- J (129-)
- H (101-)
- S (103-)
- T (158-)
- W (162-)
- 2000 (104-, 105-, 106-, 193-)
- 4000 (109-, 110-, 111-)
- 6000 (112-, 113-, 114-)
- 10,000 (119-, 120-, 121-)
