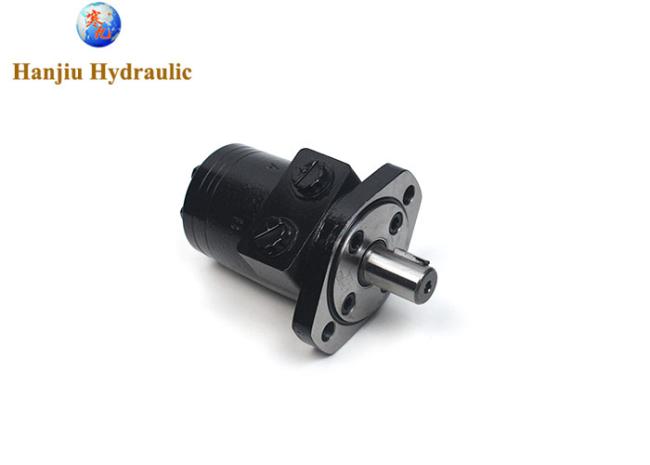

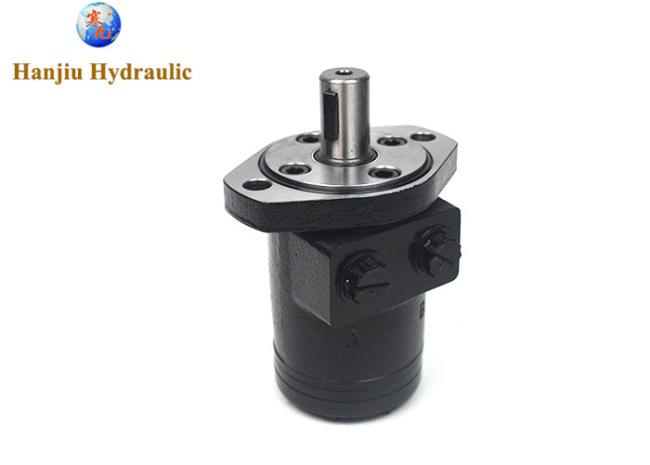

Charlynn Eaton H Series BMPH-50 Hydraulic Motor 50ml/R 2 Bolt Flange 1'' Shaft High Pressure Seals

Name: Charlynn Eaton H Series BMPH-50 Hydraulic Motor 50ml/R 2 Bolt Flange 1'' Shaft High Pressure Seals
Brand: Shijiazhuang Hanjiu Technology Co.,Ltd

Price Negotiable

Price: 47

MOQ: 100 Pieces

Delivery Time: 35 work days

Brand: HANJIU

Product Description

charlynn Eaton H series BMPH-50 Hydraulic Motor 50ml/R 2 Bolt Flange 1'' Shaft, high pressure seals

Quick review:
Item , Hydraulic Motor
Direction , Left and right
OEM #, BMPHX-050-H2-K-S-TRB
Displacement , 50cc
Flange , 2-Bolt
Shaft Size , 1" shaft with woodruff key
Port , 7/8-14 O-ring
Speed , 1150 - 1450 rpm
Torque , 100 - 148 Nm
Max Flow , 60 - 75 Lpm

Main Specifications:

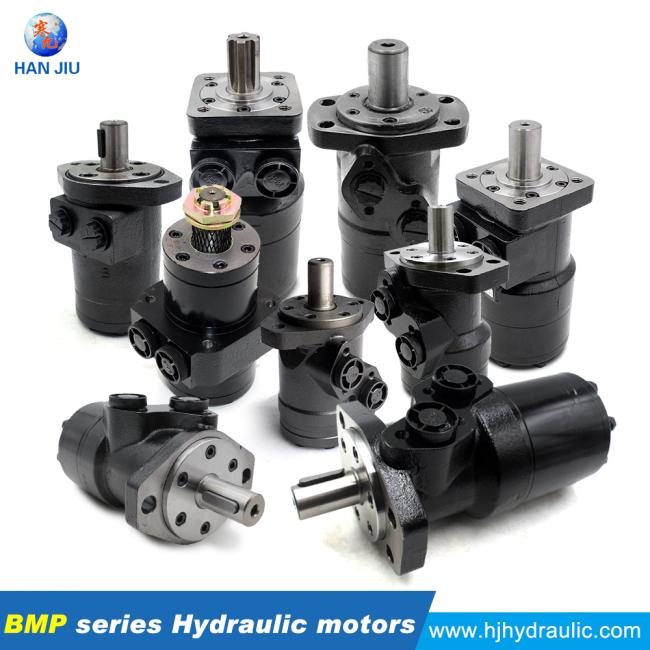

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

APPLICATIONS

Agricultural augers, harvesters, seeders, snow plows, railroad maintenance equipment, concrete and asphalt equipment and more.
