Engine Compatible With OMT800, square mounting flange ,40mm straight key shaft hydraulic heavy motor

Price Negotiable

Price: 160 usd/pc

MOQ: 100 Pieces

Delivery Time: 0 - 45 work days

Brand: HANJIU

Product Description

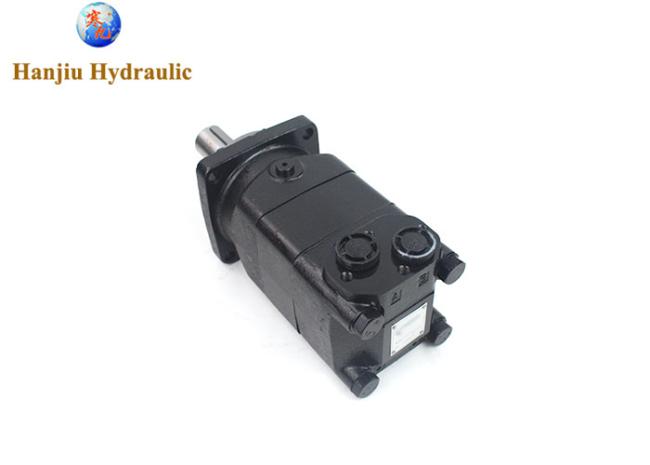

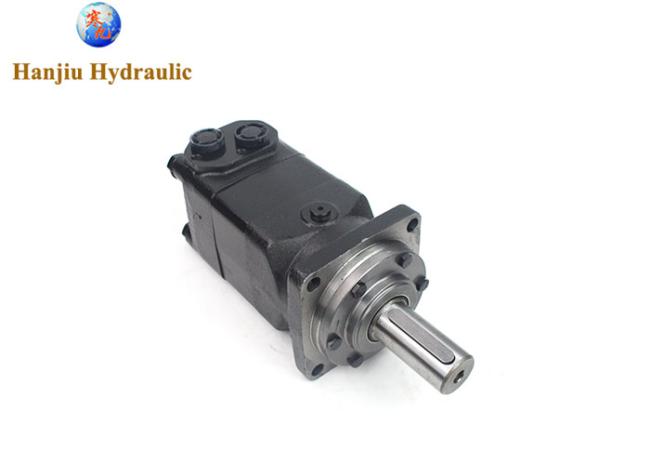

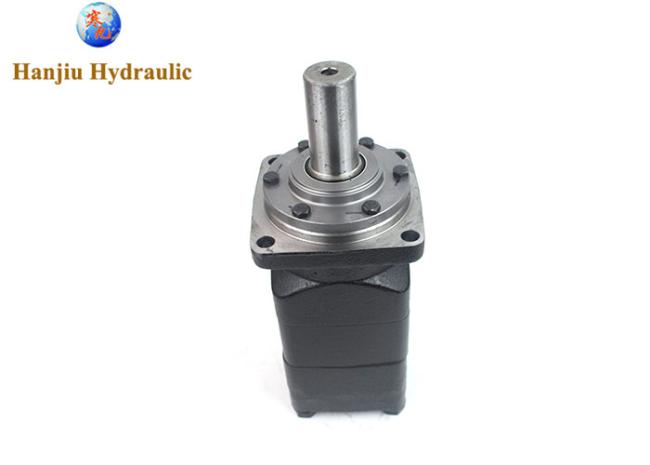

Engine Compatible With OMT800, square mounting flange ,40mm straight key shaft hydraulic heavy motor

Quick review:

Hanjiu BMT = Char-Lynn 6000, Danfoss OMT/OMTS, M+S MLHT

Model Number:

BMT-800-4-M-D

Quick detail:

Product	Hydraulic Heavy Motor
Model No.	BMT-800-4-M-D
Size	800 ml/r
Flange	4-Ø14 Square-flangeØ160, pilotØ125×9
Shaft	Shaft Ø40
Rotation	bio-Clockwise
Port	G3/4, drain port G1/2
Features	Danfoss interchangeable

Technical Specs.:

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
