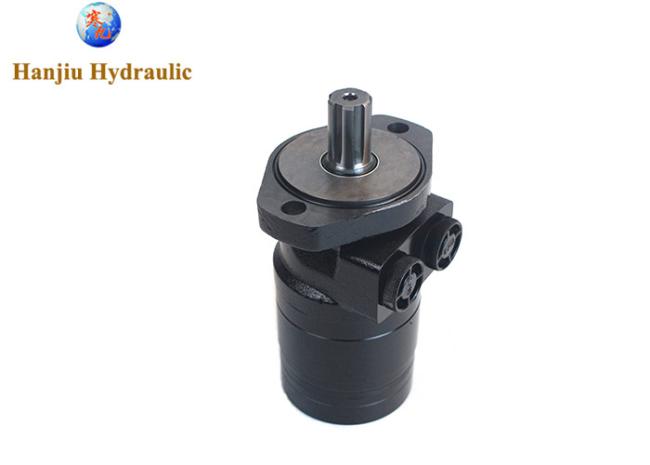

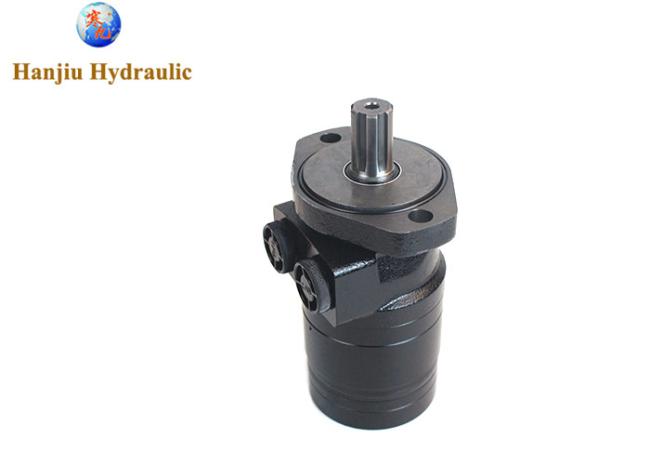

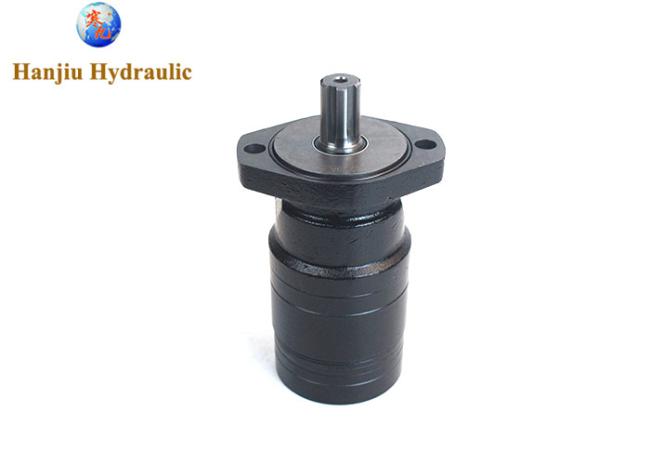

Parker TB Series Motor TB0195 SAE A Flange G1/2 BSPP Ports Spline 6B Shaft - Low Speed High Torque Motor
Parker TB series motor TB0195,SAE A flange, G1/2 BSPP ports, spline 6B shaft - Low Speed High Torque Motor
Quick review:
Model number: BME2-200-HD-S-R
Displacement:200 ml/r
Speed, 229-289 rpm
Torque, 382-520 Nm
Output, 9-15.7 Kw
Pressure Drop, 14 - 29 MPa
Flange, square mount
Shaft, 25.4mm key shaft with hole
Rotation, CCW
Features, suit Parker TB0195AW110AAAA
Here is it's technical details:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
Orbital Motor Advantages
1. Large output torque, suitable for heavy-duty working conditions
The hydraulic motor can maintain a constant speed and torque output for a long time, making it suitable for applications that require a continuous and stable output. This is especially important in industrial environments where precision and reliability are critical.
2. Explosion-proof model has high safety to use
The hydraulic motor is fully enclosed and can be used safely in dust, wet (even underwater), combustible environment, and is much more reliable than explosion-proof (flameproof) motors.
3. Safe and reliable to use, long life
Properly maintained hydraulic systems are known for their long service life. This extended service life is especially valuable in continuous operating applications, where minimizing downtime and maintenance requirements is critical to improving operational efficiency.
4. Flexible control, can be operated from a distance
Hydraulic motors provide excellent control of speed and direction, which is essential for applications that require precise motion and positioning, such as robotics and CNC machines. Their ability to maintain a stable output improves the accuracy of these systems. The hydraulic system can be operated remotely, which is advantageous in situations where access to the machine is limited or dangerous. This feature enhances security and enables greater control flexibility.
5. High efficiency
Hydraulic motors are known for their high efficiency, which means they convert a large percentage of hydraulic energy into mechanical work. Maintaining this efficiency even during continuous operation helps minimize energy waste and operating costs.
In addition to the above common advantages, the hydraulic motors produced by Hanjiu Technology also have many unique advantages, our hydraulic motors are smaller and have a longer life in extreme environments. We offer services for walking, steering, power transmission and lifting systems, and we welcome you to discover more individual hydraulic motor solutions.
