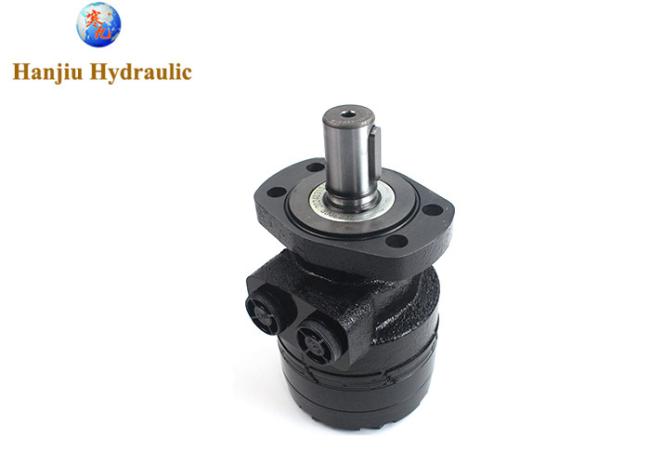

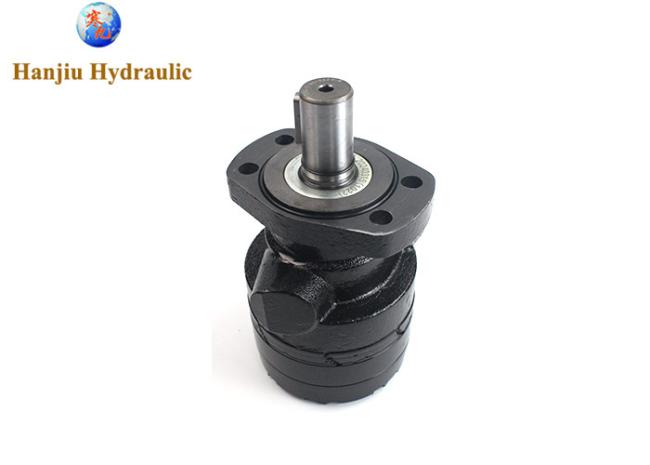

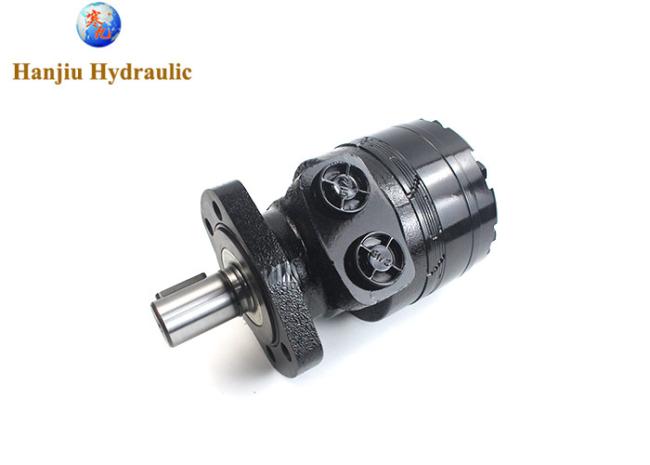

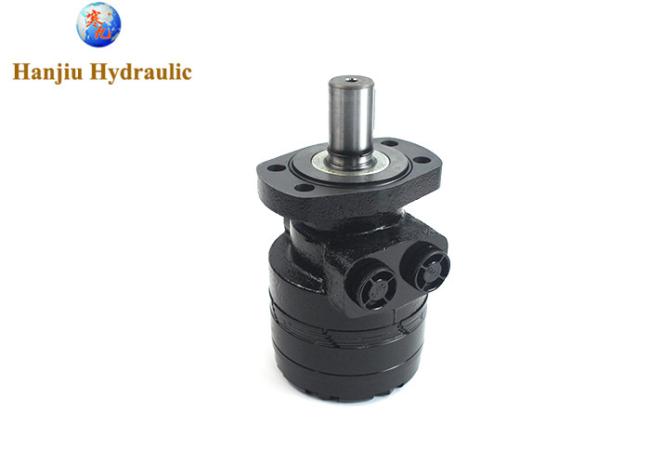

Hydraulic Motor 300ml/R 4-Bolt Magneto Flange 32mm Straight Shaft G1/2 BSPP Parker LSHT TorqmotorsTG

Hydraulic Motor 300ml/R 4-Bolt Magneto Flange 32mm Straight Shaft, G1/2 BSPP Parker LSHT Torqmotors

Quick review:

Model no.: BMER-2-300-MD-B1-R

matching Parker TG0280MW460AAAA

Specification:



Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
	int.	60	75	85	85	90	95	95	90	90	90	90



The orbital hydraulic motor is a mechanical device used in many industrial equipment. It is mainly used to convert hydraulic energy into mechanical energy.

The operation of the orbital hydraulic motor is based on the principle of hydraulic force. When hydraulic fluid is pumped into the engine, it creates pressure that causes the rotor to spin. The rotor is connected to an output shaft that transfers the mechanical energy produced by the motor to the machine or equipment it powers.

This type of hydraulic motor is very efficient because it offers high starting torque and constant rotation speed. Additionally, it is capable of operating in extreme conditions, such as high temperatures or corrosive environments.

The orbital hydraulic motor also has the advantage of being compact and lightweight, which facilitates its integration into equipment and machines. Additionally, it is easy to maintain and repair, reducing maintenance costs.

In industry, orbital hydraulic motor is used in many fields such as agriculture, construction, mining and automobile. It is used to power equipment such as cranes, bulldozers, drills and agricultural machinery.

In conclusion, the orbital hydraulic motor is an essential device in many industrial sectors. With its efficiency, durability and versatility, it contributes to optimizing machine performance and increasing productivity in various applications.

HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.
