BMR160 OMR 160 N F Hydraulic Motor Compatible With White Drive Products

Name: BMR160 OMR 160 N F Hydraulic Motor Compatible With White Drive Products
Brand: Shijiazhuang Hanjiu Technology Co.,Ltd

Price Negotiable

Price: Contact the seller to get the best offer

MOQ: 100 Pieces

Delivery Time: 55 work days

Brand: HANJIU

Product Description

Welcome!
Hydraulic Motor manufacturer from China specializes in high performance hydraulic motors for mixing, sweeping, lifting, conveying and various applications
For example, tranportation, engineering, construction, agriculture, forestry, etc.
Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

BMR160 OMR 160 N F Hydraulic Motor 11104624 compatible with White Drive Products

Quick review:

BMR-BK01-160-2-A-M-G

displacement	160ml/r
speed	378 - 475 rpm
torque	360 - 460 nm
mounting	2 bolt
shaft	25mm

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

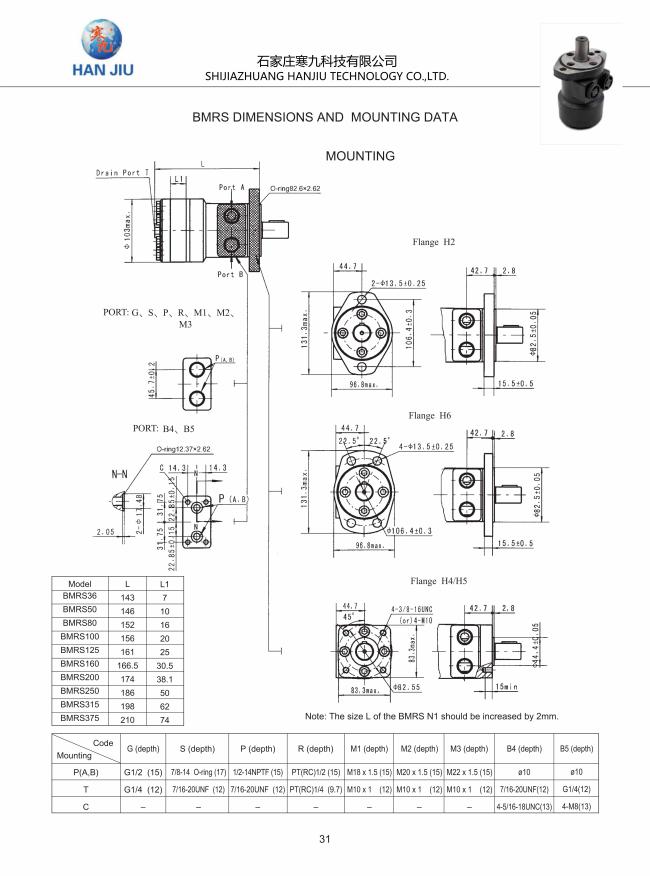

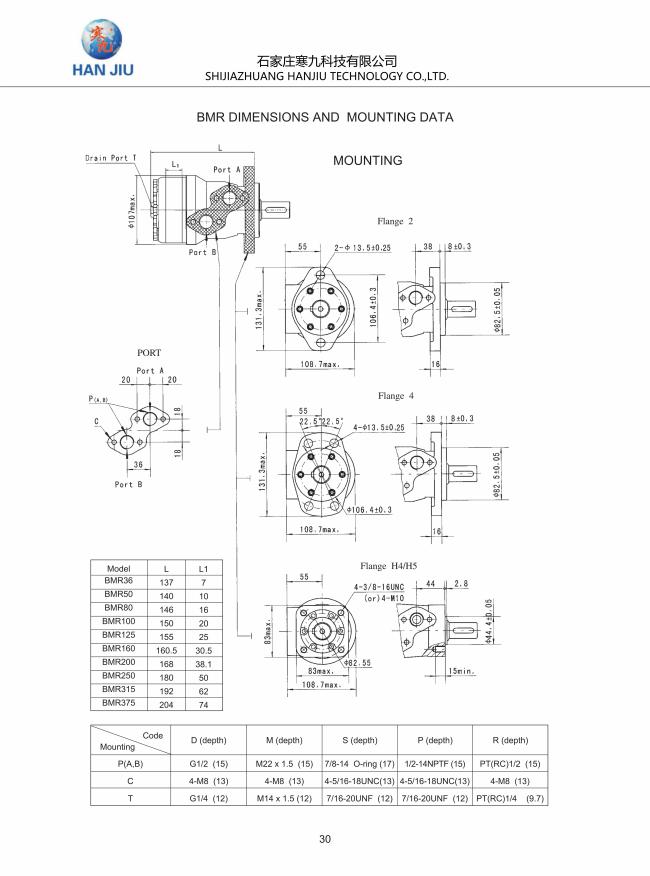

Meareuement of BMR motor:

More BMR series Hydraulic Motors:

About the manufacturer Hanjiu:

HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, mixing machine manufacturer in Italy, sweeping machine manufacturer in UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoos, Eaton, Parker, and White are all good partners for us. If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your needs.
