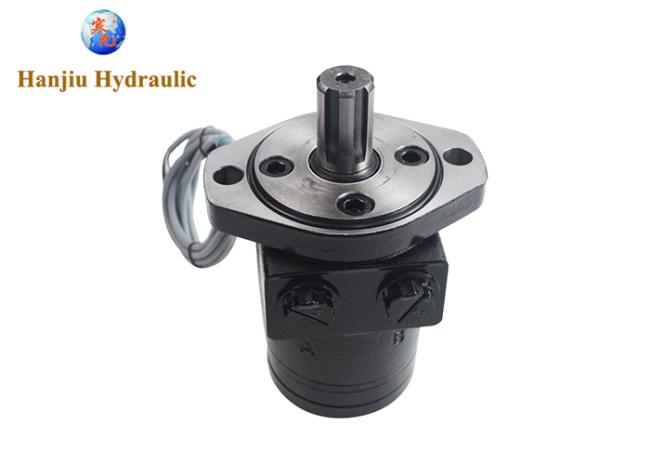

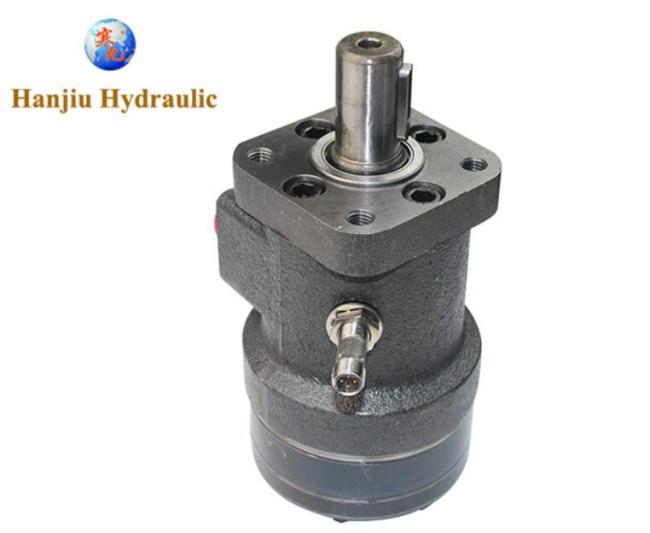

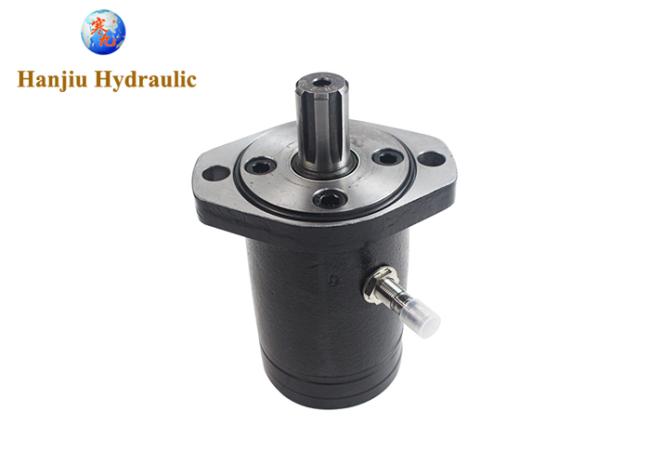

China Hydraulic Motor Manufacturer BMPH Orbital Motors With Speed Sensor

Price Negotiable

Price: 99 usd/pc

MOQ: 100 Pieces

Delivery Time: 0 - 35 work days

Brand: HANJIU

Product Description

Welcome!
From China, we manufacture hydraulic motors

8cc-985cc, standard, free running, big radial force, speed sensor, brake
If you are a dealer, OEM, please contact us to discuss cooperation

Quick review:

Model no.: BMPH-100-H2-S-S-B

Flange: 2 bolt

Shaft: 1'' 6B

Feature: with Speed sensor

Details specifications

Specification:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

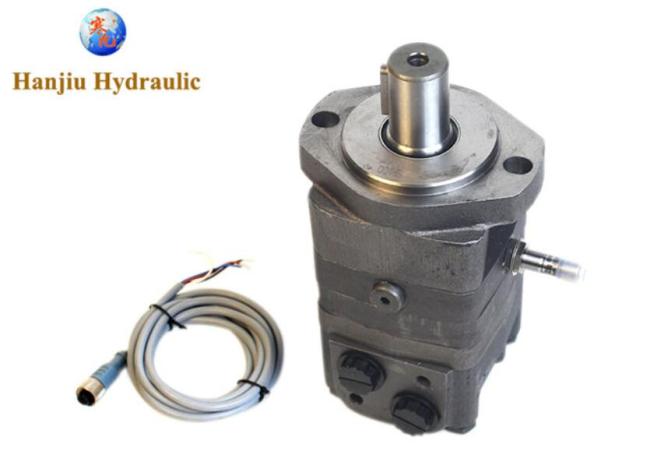

More hydraulic motor with speed sensor available from us:

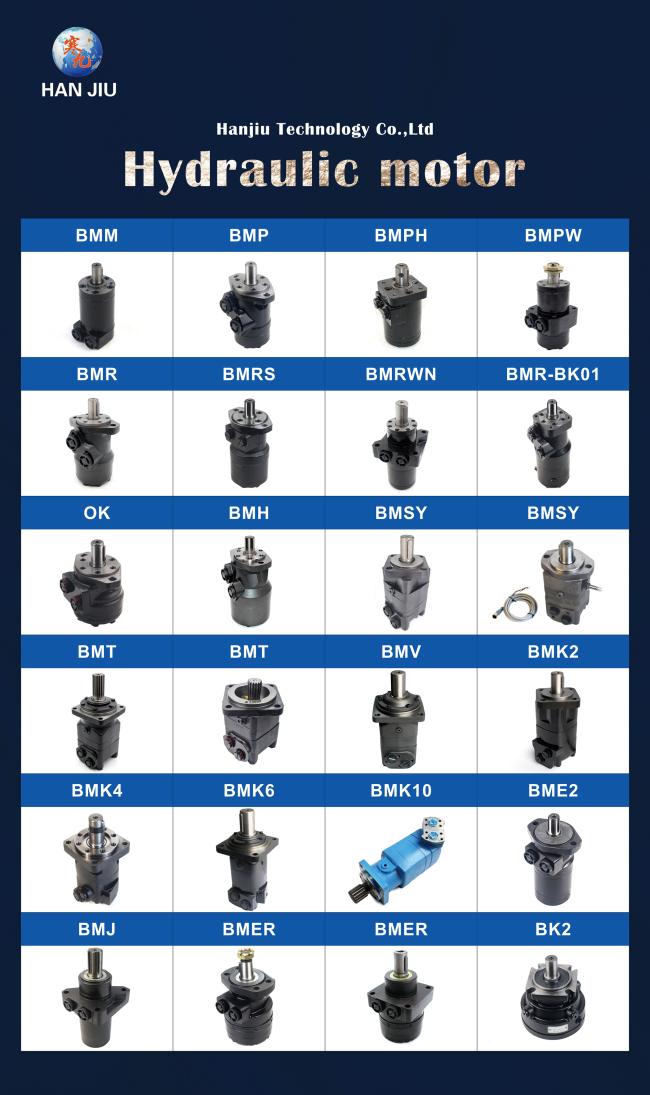

More hydraulic motor available from us:

MODEL	DISPLACEMENT
BMM	8	cc
	12.5	cc
	20	cc
	32	cc
	40	cc
	50	cc
BMP	50	cc
	80	cc
	100	cc
	125	cc
	160	cc
	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
BMR	50	cc
	80	cc
	100	cc
	125	cc
	160	cc
	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
BMH	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
BMS	80	cc
	100	cc
	125	cc
	160	cc
	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
BMK2	80	cc
	100	cc
	125	cc
	160	cc
	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
BMK6	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
	630	cc
	800	cc
	985	cc
BMER	200	cc
	250	cc
	300	cc
	350	cc
	375	cc
	475	cc
	540	cc
	750	cc
BMT	200	cc
	250	cc
	315	cc
	400	cc
	500	cc
	630	cc
	800	cc
	985	cc
BMV	315	cc
	400	cc
	500	cc
	630	cc
	800	cc
	985	cc
