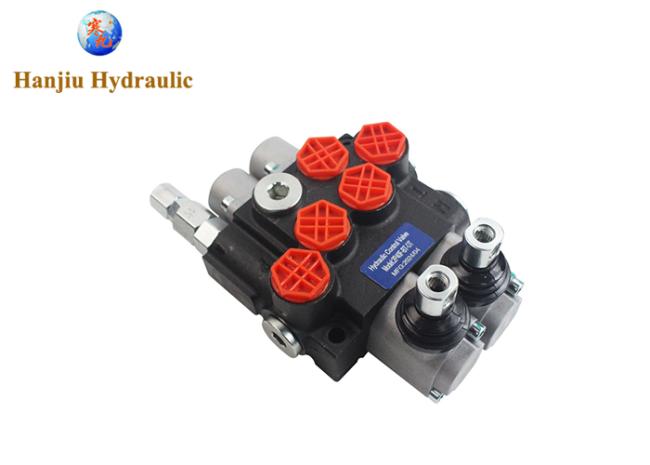

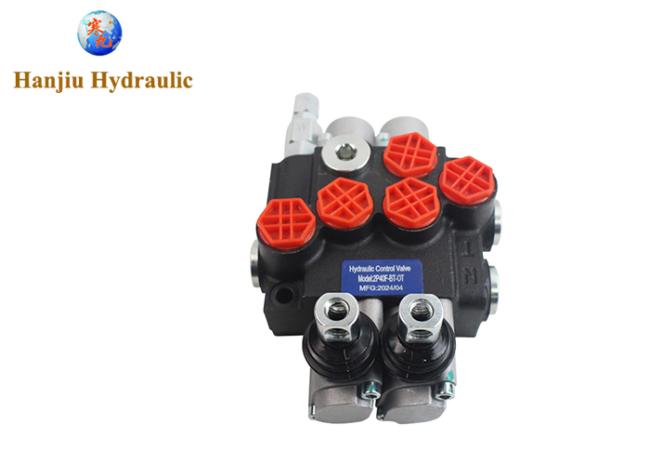

40 Liter Monoblock Control Valve 2P40 Two Spools G 3/8" Open Center Spool 2P40 A1C1 GKZ1
40 liter monoblock control valve, 2P40 , two spools , G 3/8" , open center spool , 2P40 A1C1 GKZ1
Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components. P40 series are monoblock directional control valves and manufactured with up to seven levers. Hanjiu offer 2P40 A1C1 GKZ1 directional control valve.
Product details:
P40 - series
A - spool diagram
1 - spool centering with springs
G - type of connecting thread: P, A, B - G3/8; T, N - G1/2
KZ1 - type of manual control
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
2P40 A1A1 SKZ1
2P40 A1C1 GKZ1
P40 A8 GKZ1
4P40-1A1A1A1A1-GKZ1
5P40-A1A1A1A1A1-GKZ1
7P40-7*A1-GKZ1
