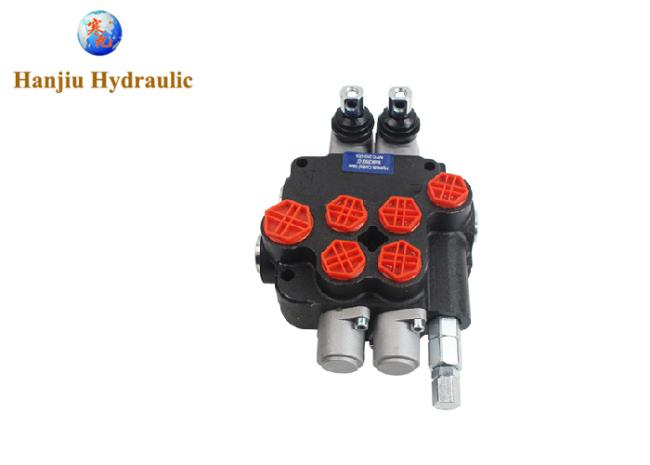

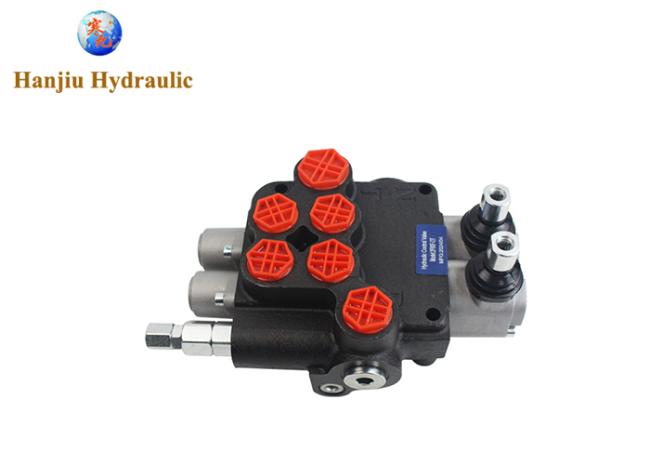

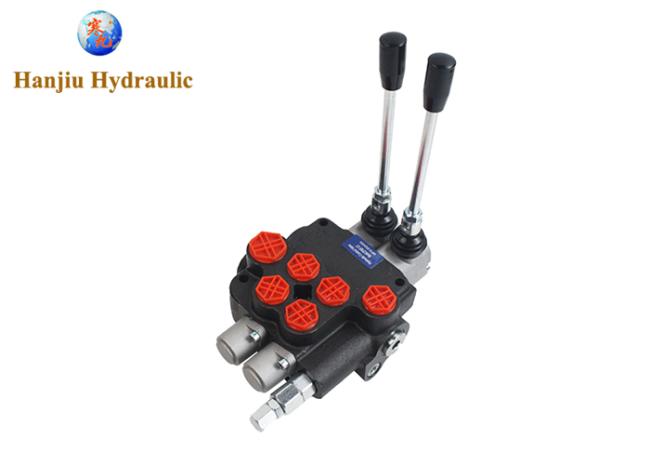

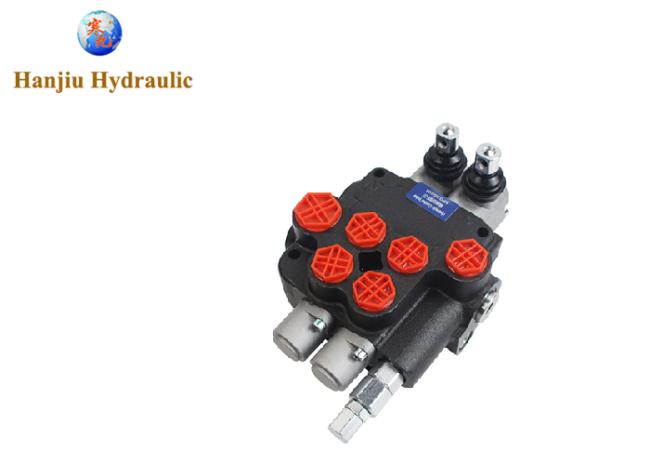

P80 Two Bank 2P80 A1GKZ1 Manual Hydraulic Directional Control Valves
P80 TWO BANK 2P80 A1GKZ1 MANUAL HYDRAULIC DIRECTIONAL CONTROL VALVES
It can be used for agricultural machinery, tractors, sprayers, turners, HDS loaders, construction machinery, loaders, ambulances, car transporters, excavators, sweepers, industrial and construction machinery, forestry, horticulture and other fields.
The distributor is equipped with a safety valve. They have a dust-, water- and oil-resistant sealing rubber cover.
| flow rate | 80 liters |
| number of spools | 2spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 100-315bar |
| inlet port size | G3/8,G1/2, G3/4 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard handle |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8,G1/2,G4/3,G1 |
| outlet section type | top outlet,side |
| outlet port size | G3/8,G1/2,G4/3,G1 |
The distributor has a neutral (middle) position and two working positions (up and down).
When released, the lever will automatically return to the neutral (0) position
– 0. neutral position – the oil is directed to the overflow
– In the case of working position 1 – oil flow – gear, the piston rod extends.
– 2nd working position – oil flow – the piston rod retracts at the cylinder.
