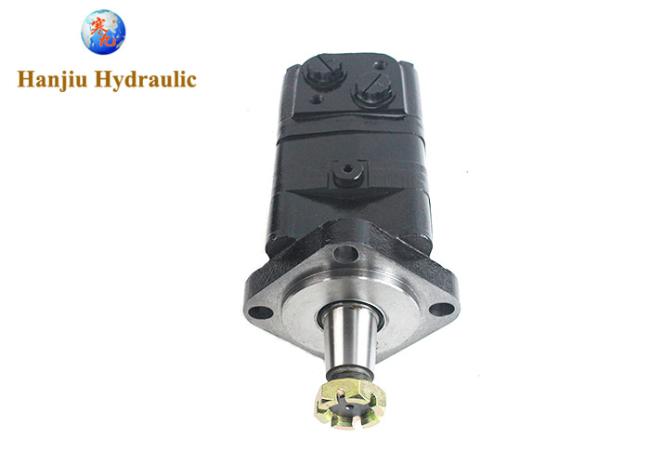

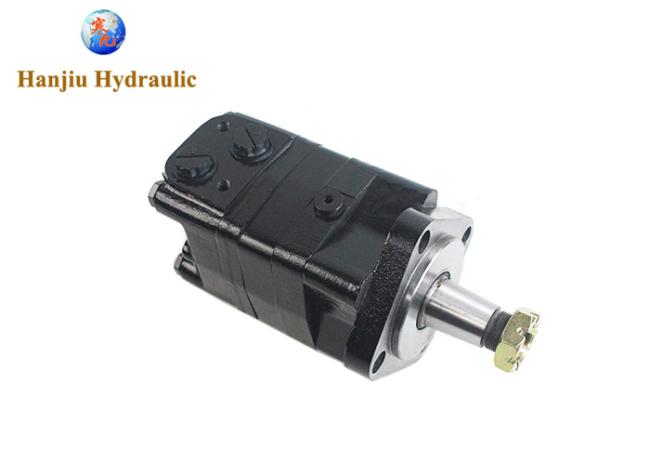

OMS125 Hydraulic Orbital Motor 151F2216 BMSY125 Standard Mounting Flange Tapered 1.25 In Shaft 7/8-14 UNF Ports
OMS125 Hydraulic orbital motor 151F2216 BMSY125 Standard mounting flange, Tapered 1.25 in shaft ,7/8-14 UNF ports
the details as below
hanjiu code :BMSY-125-E4-T3-SG= 151F2216
Specification:
| DISPLACEMENT | 125CC |
|
SERIES
|
DANFOSS OMS Series,M+S-MS Series, HANJIU--BMSY SERIES |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | Tapered 1.25 in shaft |
| DRAIN | 7/16-20UNF |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 191 rpm/287rpm |
| FLOW RATE | 75l/min |
| RPM [MAX] | 287rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | 4-Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3 |
| PORT SIZE | 7/8-14unf |
| MOTOR TYPE | Disc Valve |
This type of mootr are widely used on conveyors
Why Hydraulic Motors Are Ideal for Conveyors
High Torque at Low Speeds Many conveyor applications require consistent movement at slower speeds, especially when handling heavy or bulky materials. Hydraulic motors excel at delivering this specific power characteristic, efficiently driving the conveyor belt.
Variable Speed Control The ability to regulate the flow and pressure of the hydraulic fluid allows for fine-tuned control over the speed of the conveyor belt. This is crucial for adapting to different material types, capacities, and loading conditions.
Adaptability to Various Conveyor Types Hydraulic motors can be incorporated into diverse conveyor systems, from heavy-duty belt conveyors used in mining operations to smaller conveyors used in manufacturing or food processing facilities.
Starting and Stopping Hydraulic motors can handle frequent starts and stops efficiently, a common requirement in many conveyor applications.
The specific type and size of the hydraulic motor used in a conveyor depend on the conveyor's size, capacity, material to be transported, and desired speed control.
Modern conveyor systems with hydraulic motors might incorporate features like
Variable displacement hydraulic motors These allow for adjusting the motor's output based on the material load or belt speed requirements, optimizing performance and efficiency.
Overload protection valves These safety features safeguard the hydraulic system from damage caused by excessive loads on the conveyor belt.
By understanding the role of hydraulic motors in conveyor systems, you gain a deeper appreciation for the technology that keeps these essential machines moving materials efficiently across numerous industries.
HANJIU Technology Precision manufacturing, providing solutions for hydraulic Motor.
