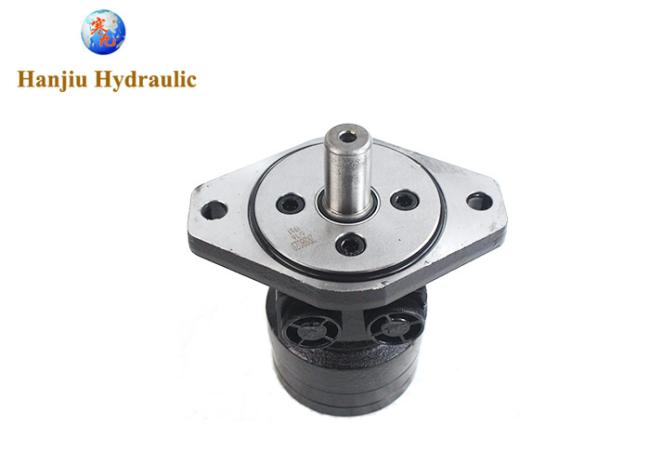

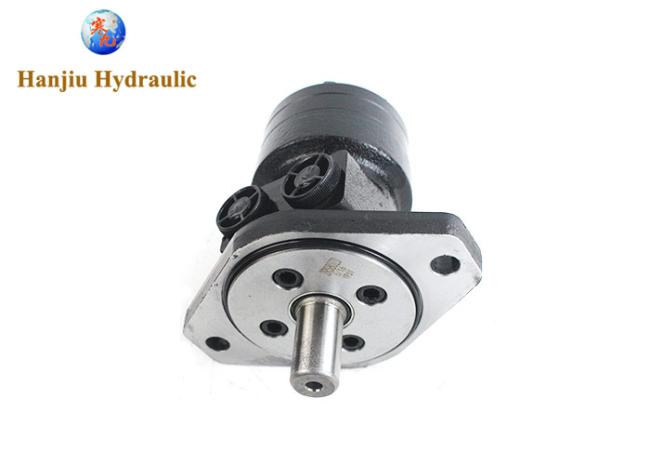

Lsht Hydraulic Motor BMRS-80-H7-A-G 80cc SAEB Mounting Flange With 25mm Key Shaft
Lsht Hydraulic Motor BMRS-80-H7-A-G,80cc, SAEB mounting flange with 25mm key shaft
Features:
- Shaft: 25mm straight Key shaft
- Flange: SAE "B" 2-Bolt Mounting
- Ports: G1/2
- Drain: G1/4
- Corrosion-resistant Black Paint
Technical Specifications for BMRS-80-H7-A-G:
- Displacement: 4.6 in³/rev (76 cm³/rev)
- Max Speed: 750 rpm (cont) / 940 rpm (int)
- Max Torque: 195 N.M (cont) / 220 N.M (int)
- Max Differential: 17.5MPA (cont) / 20MPA (int)
- Max Flow: 60l/min (cont) / 75l/min (int)
Drop-In Replacement for:
- Char-Lynn 103- SERIES
Main Specifications:
Technical data for BMRS with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |

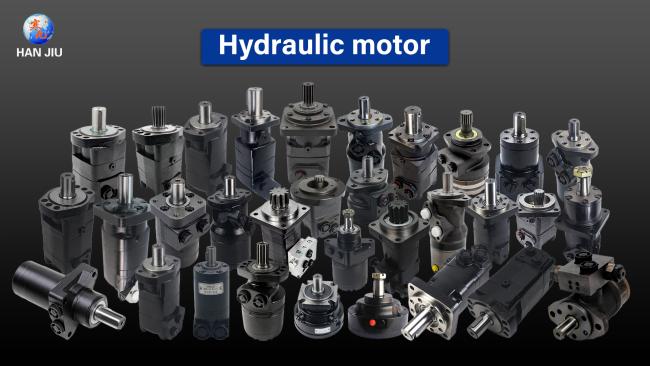

HANJIU Technology supply the wide range of hydraulic motors, from BMM, BMP , BMR, BMH ,BMSY, BMT, BMV to H Series, S Series, 2000,4000,6000,10000 series low speed high torque motors, also TE, TF,TG torquemotors. at the same time, we can also customised hydraulic orbit motors as per customers drawings
if you have inquiry for hydraulic motors, any inquiry for choosing correct motors for your equipments, pls check with Hanjiu technology !
