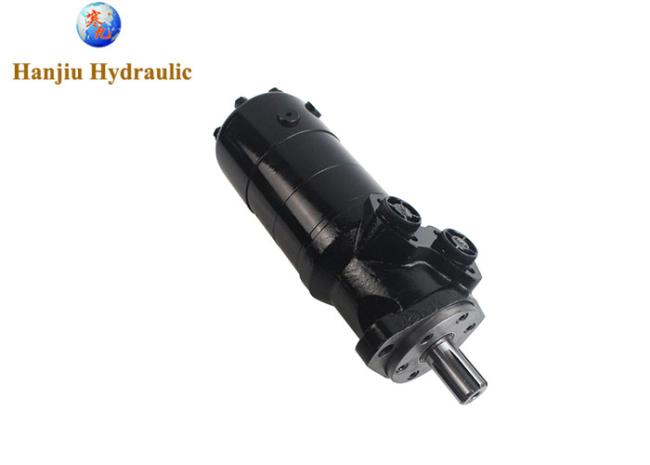

White 11029276 OMR F 200 Hydraulic Motor With Brake Release Connection G ¼ SAE 6B Spline Shaft
White 11029276 OMR F 200 Hydraulic Motor with Brake release connection G ¼, SAE 6B spline shaft
Specifications:
- order type 11029276=bmr-bk3b-200-2edgn1
- displacement = 200cc
- 2 bolt standard flange
- SAE 6B shaft
- G1/2 Manifold Mount, 4-M8, G1/4 port threads and drain ports
- brake release port G1/4
Specifications:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR Bk3 36 |
BMR Bk3 50 |
BMR Bk01 80 |
BMR Bk3 100 |
BMR Bk01 125 |
BMR Bk3 160 |
BMR Bk3 200 |
BMR Bk3 250 |
BMR Bk3 315 |
BMR Bk3 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
When choosing an orbital motor, consider the following factors
Displacement Determines the amount of fluid displaced per revolution.
Operating pressure Affects motor torque and speed.
Speed The desired rotational speed of the output shaft.
Torque The required output force.
Efficiency The desired power conversion efficiency.
Mounting options Compatibility with your equipment.
Environmental conditions The operating environment's impact on the motor.
Would you like to provide more details about your specific application or requirements This information can help me recommend suitable orbital motor options and potential suppliers.
Please feel free to ask any further questions you may have.
