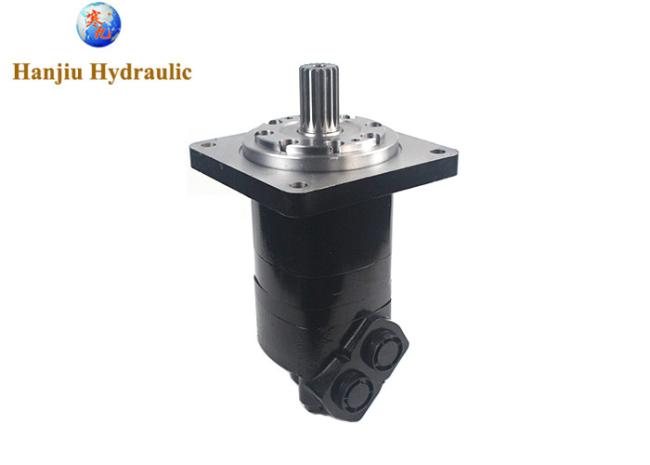

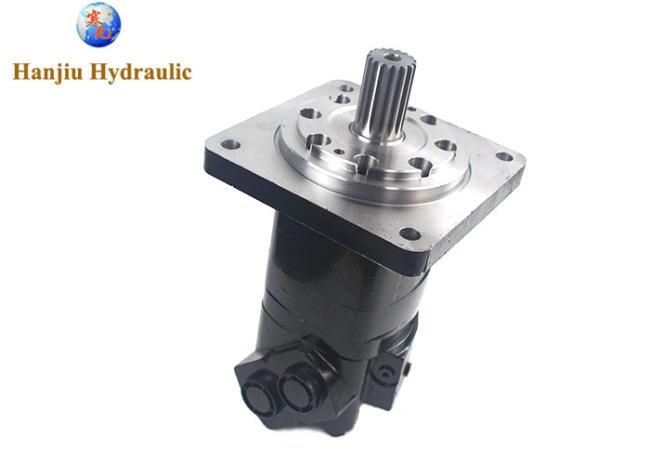

Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor

Name: Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Brand: Shijiazhuang Hanjiu Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 50 Pieces

Delivery Time: 25 - 35 work days

Brand: HANJIU CHINA

Product Description

hydraulic low speed high torque motor 112-1031-006 spline shaft big flange charlynn 6000 motor

Product details

order type:BMK6

displacement:312 cubic centimetre per revolution

Flange:Standard; (SAE D) 4 Bolt; 152.4 [6.00] Pilot Dia. 15.24 [.600] Dia. Holes On 228.6 [9.00] Dia. Bolt Circle; (SAE D) With O-Ring Groove To Accept Arp-163 O-Ring

shaft:spline

ports:1.3125-12 UN-2B SAE O-Ring Ports - Staggered Ports

fit:Mobile equipment, Snow Removal, Mowing, Spayer, Trencher, Wood products

quality:aftermarket OEM quality

Main Specifications:

Type		BMK6 200	BMK6 250	BMK6 315	BMK6 400	BMK6 500	BMK6 630	BMK6 800	BMK6 1000
Geometric displacement (cm3 /rev.)		195.6	246.1	311.6	391.3	490.8	623	802.4	981.6
Main speed(rpm)	cont.	765	610	480	382	304	240	186	152
	int.	865	830	690	570	455	360	280	230
Max torque N.M	cont.	565	710	920	1160	1445	1480	1580	1675
	int.	840	1080	1325	1625	1880	1890	1880	1860
Max pressure drop (Mpa)	cont.	20	20	20	20	20	17.5	14	14
	int.	30	30	30	30	27.5	22.5	15.5	14
Weight (kg)		26.3	26.8	27.3	28	28.8	29.6	30.5	32

CHARLYNN 6000 SERIES MOTORS WE CAN SUPPLY

112-1001-006	112-1375-006	112-1145-006	112-1093-006	112-1069-006
112-1005-006	112-1383-006	112-1150-006	112-1094-006	112-1076-006
112-1006-006	112-1446-006	112-1158-006	112-1095-006	112-1080-006
112-1007-006	112-1456-006	112-1161-006	112-1096-006	112-1088-006
112-1011-006	112-1528-006	112-1162-006	112-1097-006	112-1089-006
112-1012-006	112-1560-006	112-1163-006	112-1098-006	112-1090-006
112-1013-006	113-1019-006	112-1164-006	112-1099-006	112-1091-006
112-1017-006	113-1020-006	112-1166-006	112-1104-006	112-1092-006
112-1018-006	113-1021-006	112-1180-006	112-1107-006	113-1075-006
112-1019-006	113-1022-006	112-1182-006	112-1108-006	113-1076-006
112-1020-006	113-1023-006	112-1193-006	112-1109-006	113-1077-006
112-1021-006	113-1025-006	112-1206-006	112-1111-006	113-1078-006
112-1022-006	113-1026-006	112-1207-006	112-1115-006	113-1079-006
112-1023-006	113-1027-006	112-1209-006	112-1116-006	113-1080-006
112-1024-006	113-1028-006	112-1213-006	112-1128-006	113-1081-006
112-1025-006	113-1047-006	112-1214-006	112-1131-006	113-1082-006
112-1026-006	113-1051-006	112-1215-006	112-1138-006	112-1320-006
112-1052-006	113-1052-006	112-1216-006	113-1083-006	112-1324-006
112-1053-006	113-1053-006	112-1217-006	113-1084-006	112-1334-006
112-1054-006	113-1057-006	112-1218-006	113-1085-006	112-1336-006
112-1055-006	113-1058-006	112-1219-006	113-1086-006	112-1345-006
112-1056-006	113-1059-006	112-1220-006	113-1087-006	112-1350-006
112-1057-006	113-1063-006	112-1227-006	113-1093-006	112-1359-006
112-1058-006	113-1064-006	112-1229-006	113-1095-006	112-1360-006
112-1059-006	113-1065-006	112-1230-006	113-1100-006	112-1067-006
112-1060-006	113-1066-006	112-1247-006	113-1101-006	112-1068-006
112-1061-006	113-1067-006	112-1253-006	113-1108-006	113-1073-006
112-1062-006	113-1068-006	112-1254-006	113-1121-006	113-1074-006
112-1063-006	113-1069-006	112-1264-006	113-1133-006	112-1307-006
112-1064-006	113-1070-006	112-1287-006	113-1140-006	112-1309-006
112-1065-006	113-1071-006	112-1290-006	113-1143-006	113-1157-006
112-1066-006	113-1072-006	112-1305-006	113-1150-006	113-1165-006
