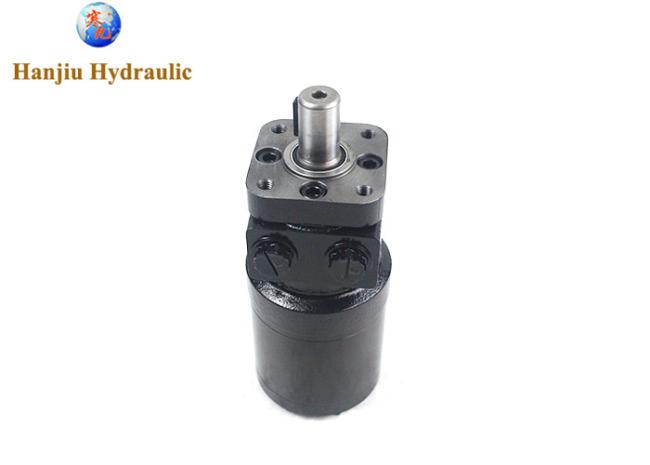

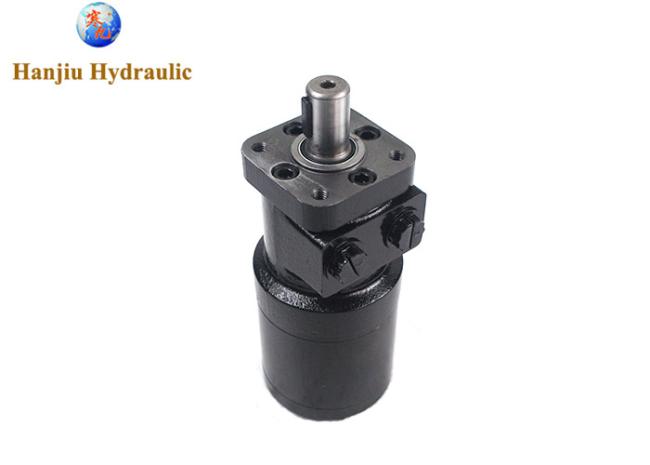

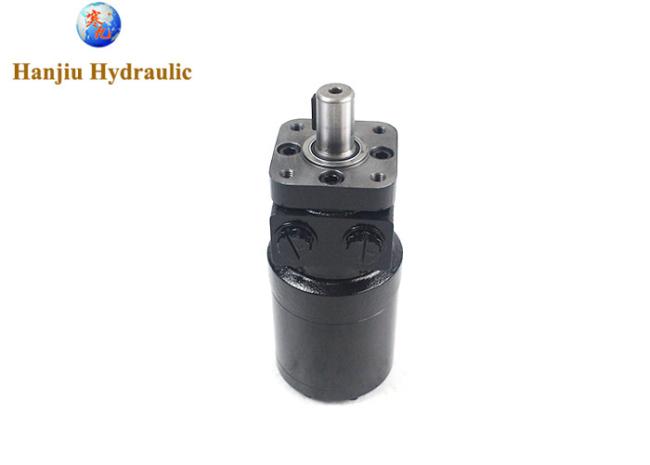

BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft
Price:
Negotiable
MOQ:
50 units
Delivery Time:
10-15 working days
Brand:
Hanjiu
Product Description
BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM,Straight key shaft
Features:
- Shaft: φ25.4mm woodruff key
- Flange: 4 bolt Mounting
- Ports: 7/8-14 O-ring
- Drain: 7/16-20UNF
- Corrosion-resistant Black Paint
Technical Specifications for BMRS-375-H4-K-S
- Displacement: 22.7 in³/rev (375 cm³/rev)
- Max Speed: 155 rpm (cont) / 190 rpm (int)
- Max Torque: 365 N.M (cont) / 495 N.M (int)
- Max Differential: 7.0MPA (cont) / 10MPA (int)
- Max Flow: 60l/min (cont) / 75l/min (int)
Drop-In Replacement for:
- Char-Lynn 103- SERIES
Main Specifications:
Technical data for BMRS with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Applications:
• Agricultural augers,harvesters, seeders
• Car wash brushes
• Food processing
• Railroad maintenance equipment
• Machine tools
• Conveyors
• Industrial sweepers and floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt equipment
• Skid steer attachments
