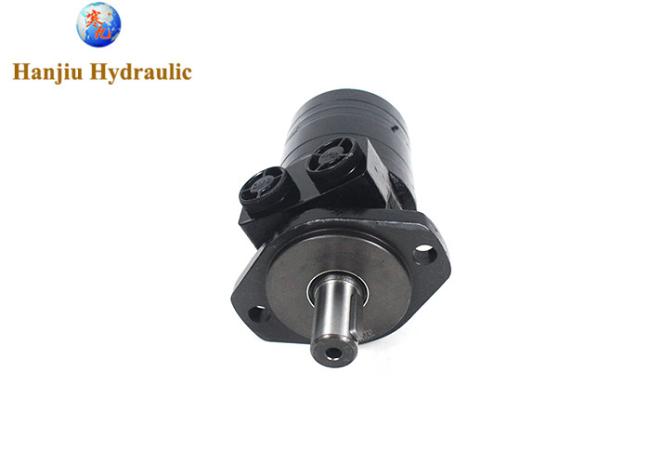

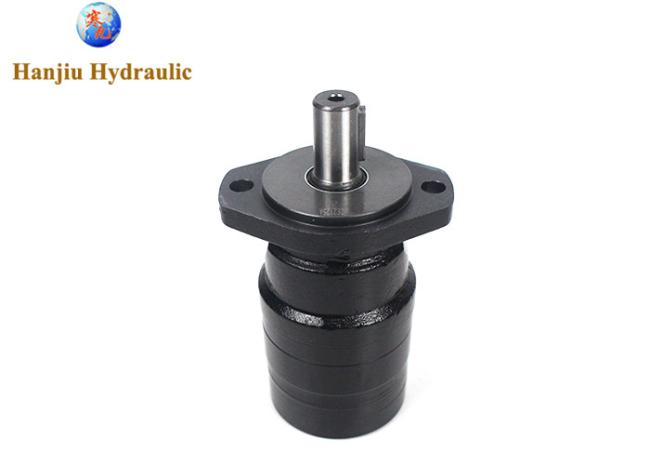

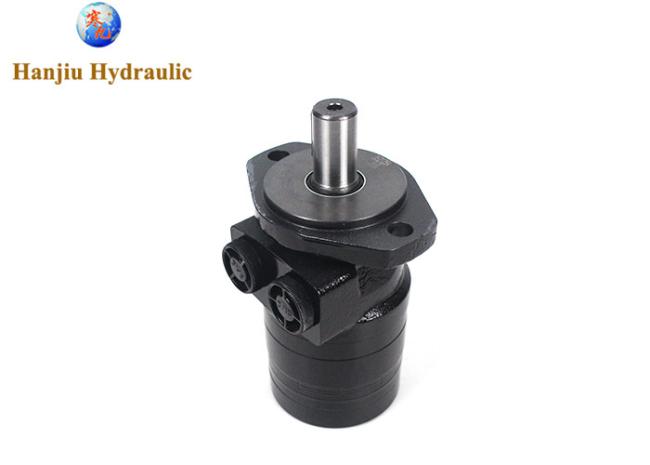

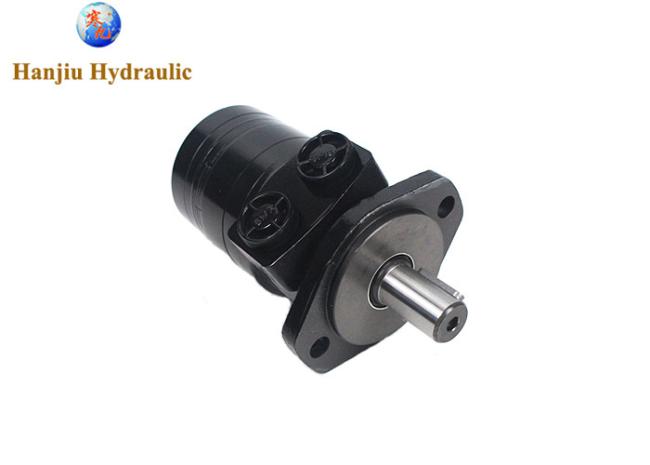

Parker Torque Motor TE Series Orbital Motor 130cc SAE 2 Bolt Flange With 25mm Key Shaft
Parker Torque Motor TE Series Orbital motor,130cc, SAE 2 bolt flange with 25mm key shaft
Details specifications
| Series: | TE |
| Shaft: | 25mm Straight Key shaft |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0125 |
| Mounting: | SAE "A" 2 Bolt |
| Ports: | G1/2 |
| Geometric Displacement: | 125 cm3/rev (10 in3/rev) |
| Maximum Speed: | 441rev/min |
| Maximum Oil Flow (continuous / intermittent): | 45 lpm (12 gpm) / 57 lpm (15 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 140 bar (2030 PSID) / 190 bar (2750 PSID) |
| Maximum Supply Pressure: | 200 bar (2900 PSID) |
| Maximum Torque - Continuous / Intermittent: | 245 Nm / 335 Nm |
| Maximum Performance: | 14.1 KW (23.4 HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 245 Nm / 335Nm (3637 lb in) |
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
The HANJIU BME2 Series is a durable hydraulic torque motor with superior side load capacity, high-pressure shaft seal and smooth low-speed operation. HANJIU BME2 motors are designed for vehicle propulsion, augers, chain drives, winches, boom rotate and other light-duty applications. Intermittent pressures go to 27500 psi. Max dynamic side load capability is 1500 lb.
The HANJIU BME2 Series is available in 11 displacements ranging fromn 65 cc/rev to 375 cc rev at pressure up to a maximum supply pressure of 200 bar. The BME2 Series can carry up to 1500 lb dynamic side load at the key – Robust construction for longer life – Continuous oil flow across internal splines for longer life – Superior side load capacity – Smooth, extra low speed operation – High pressure shaft seal is standard – Innovative design eliminates the need for a case drain
