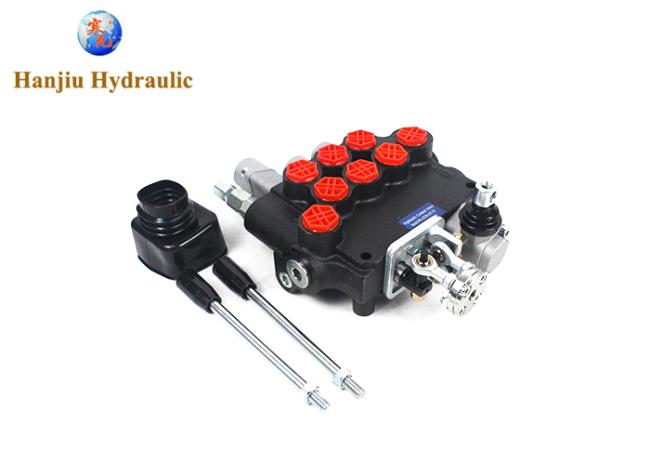

Hydraulic Monoblock Valve 3P80 Air Control Type+manual Control With BSPP 1/2 Ports For Harvesters
hydraulic monoblock valve 3P80, air control type+manual control with BSPP 1/2 ports for harvesters
The P80 Manual and Joystick 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It features manual and joystick control,
a 2-section monoblock structure, a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. This valve is suitable for use in temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| flow rate | 80 liters |
| number of spools | 2 spools with joystick+1 lever |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 250bar |
| inlet port size | G3/8,G1/2, G3/4 |
| spool type | 4 positons, double acting |
| handle side arrangement | standard handle |
| spool cap side arrangement | 3position, spring return |
| working section arrangement | standard type |
| work port size | G3/8,G1/2,G4/3,G1 |
| outlet section type | top outlet,side |
| outlet port size | G3/8,G1/2,G4/3,G1 |
Applications:
Material Handling: Forklifts, Telehandlers, Stackers, Aerial Platforms
Construction and Earth Moving: Excavators, Loaders, Bulldozers, Graders
Agriculture: Tractors, Harvesters, Sprayers, Bale Wrappers
industrial Vehicles: Sweepers, Waste Compactors, Hook-Loaders, Skip Loaders
