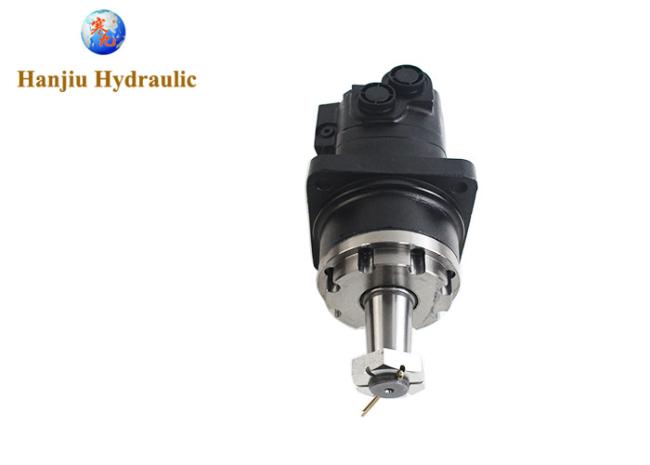

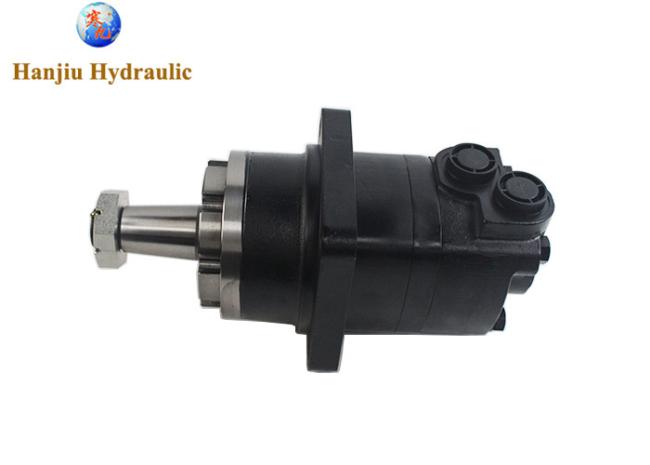

Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 hydraulic orbit motor 205.5 CM3/R 4 Bolt 12.54 CID [12.54 IN3/R] O-Ring Port
Quick review:
110-1084-006
- Displacement: 12.54 CID Mount: 4 BOLT WHEEL Shaft: 1.62 TAPERED - SLOTTED HEX NUT
- Port: 1.06 SAE O RING STAGGERED SERIES: 4000 SERIES DISPLACEMENT: 205.5 CM3/R [12.54 IN3/R]
- MOUNTING TYPE: WHEEL, 4 BOLT; 139.70 [5.500] PILOT DIA.14.27 [.562] DIA. HOLES ON 165.10 [6.500] DIA. BOLT CIRCLE. OUTPUT SHAFT: 41.28 [1.625] DIA. TAPERED WITH 11.112 [.4375] SQ X 31.75 [1.250] STRAIGHT KEY, 1.250-18UNEF-2A THREAD WITH SLOTTED HEX NUT
- PORTS: 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS CASE FLOW OPTIONS: .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE
features
- Standard, wheel or bearingless configurations
- Lowest pressure drop motor in the industry
- Highly-efficient Geroler motor provides energy savings
Here are examples we make 109- series motors , motor models contact us to get
| Part # | Description | Category | |
| 109-1001-006 | EATON CHAR-LYNN | M04067AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1002-006 | EATON CHAR-LYNN | M04099AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1003-006 | EATON CHAR-LYNN | M04125AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1006-006 | EATON CHAR-LYNN | M04067AB02AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1008-006 | EATON CHAR-LYNN | M04125AB02AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1011-006 | EATON CHAR-LYNN | M04067AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1012-006 | EATON CHAR-LYNN | M04099AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1013-006 | EATON CHAR-LYNN | M04125AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1052-006 | EATON CHAR-LYNN | M04190AE05AA01000000000000000F | MOTOR 4000 SERIES |
| 109-1053-006 | EATON CHAR-LYNN | M04240AE05AA01000000000000000F | MOTOR 4000 SERIES |
| 109-1054-006 | EATON CHAR-LYNN | M04080AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1055-006 | EATON CHAR-LYNN | M04150AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1056-006 | EATON CHAR-LYNN | M04190AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1057-006 | EATON CHAR-LYNN | M04240AB01AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1059-006 | EATON CHAR-LYNN | M04150AB02AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1061-006 | EATON CHAR-LYNN | M04240AB02AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1062-006 | EATON CHAR-LYNN | M04080AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1063-006 | EATON CHAR-LYNN | M04150AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1064-006 | EATON CHAR-LYNN | M04190AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1065-006 | EATON CHAR-LYNN | M04240AB03AD02000000000000000F | MOTOR 4000 SERIES |
| 109-1087-006 | EATON CHAR-LYNN | M04067AB02AA01000000000000000F | MOTOR 4000 SERIES |
| 109-1094-006 | EATON CHAR-LYNN | M04171AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1100-006 | EATON CHAR-LYNN | M04067AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1101-006 | EATON CHAR-LYNN | M04080AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1102-006 | EATON CHAR-LYNN | M04099AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1103-006 | EATON CHAR-LYNN | M04125AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1104-006 | EATON CHAR-LYNN | M04150AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1105-006 | EATON CHAR-LYNN | M04190AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1106-006 | EATON CHAR-LYNN | M04240AB01AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1107-006 | EATON CHAR-LYNN | M04067AB02AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1108-006 | EATON CHAR-LYNN | M04080AB02AB02000000000000000F | MOTOR 4000 SERIES |
| 109-1109-006 | EATON CHAR-LYNN | M04099AB02AB02000000000000000F | MOTOR 4000 SERIES |
- J (129-)
- H (101-)
- S (103-)
- T (158-)
- W (162-)
- 2000 (104-, 105-, 106-,)
- 4000 (109-, 110-,)
- 6000 (112-, 113-, 114-)
- 10000 ( 119-)
Geroler motors offer several key advantages that make them well-suited for a wide range of applications
1. High Torque Output
Geroler motors are renowned for their exceptional torque output, even at low speeds.
This makes them ideal for heavy-duty applications where significant rotational force is required.
2. Smooth Operation
Geroler motors provide a smooth and pulsation-free operation, ensuring consistent performance and reduced noise levels.
3. Compact Design
Geroler motors are known for their compact size, allowing for efficient use of space in various installations.
4. Reversibility
Geroler motors can operate in both clockwise and counterclockwise directions, providing versatility in applications requiring reversible motion.
5. Wide Speed Range
Geroler motors are capable of operating over a wide range of speeds, making them adaptable to various requirements.
6. High Efficiency
Geroler motors generally exhibit high efficiency, converting hydraulic energy into mechanical energy with minimal losses.
7. Reliability and Durability
Geroler motors are designed for reliability and durability, ensuring long-term performance and minimal maintenance.
8. Versatility
Geroler motors are available in various sizes and configurations, making them suitable for a wide range of applications across different industries.
9. Low-Speed Performance
Geroler motors are particularly well-suited for low-speed applications, where they can maintain high torque output without sacrificing efficiency.
10. Ease of Maintenance
Geroler motors typically require minimal maintenance, with simple procedures for inspection and repair.
These advantages make Geroler motors a valuable choice for applications demanding high torque, smooth operation, and reliability.
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
