4000 Series Disc Geroler Motors 19.00 Cu In/rev 4 Bolt SAE B Mounting Flange 1-1/4 In. Straight Keyed Shaft 1-1/16-12 St.Thd. O-Ring Ports
Price:
Start from 500 usd
MOQ:
1 Sets
Delivery Time:
15 - 45 work days
Brand:
HANJIU
Product Description

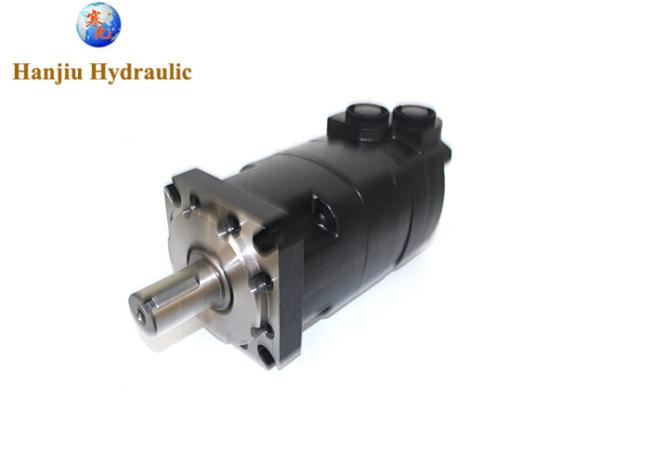

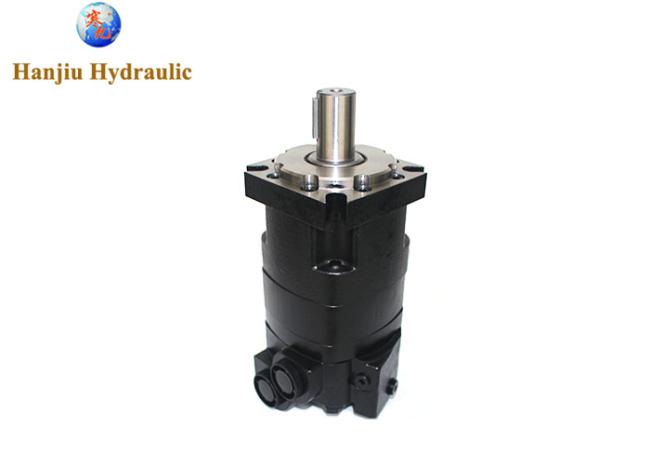

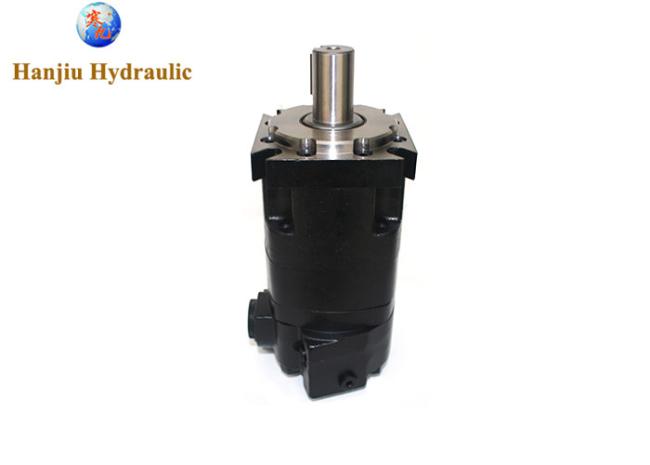

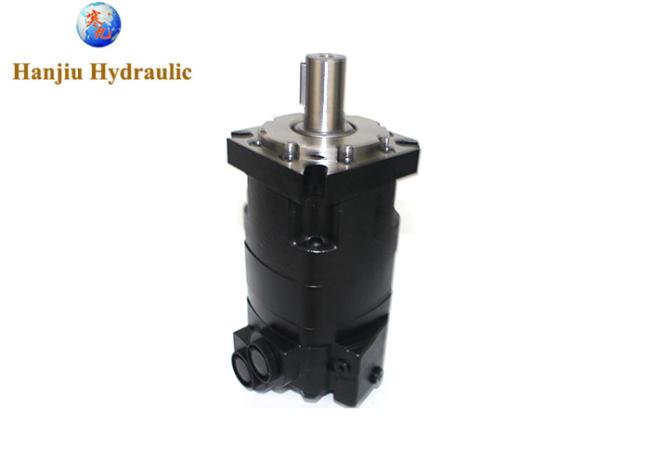

4000 Series Geroler Motor, 19.00 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports
109-1105-006,1091105006 eaton charlynn 4000series 4k motor
Specification
| Model code | M04190AB01AB02000000000000000F |
| Motor Series | 4000 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor size | 310 |
| Geometric displacement [cm3/r [in3/r]] | 311.8 [19.03] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 101.6 x 8.0, 127.0, 14.7 [4.00 x 0.32, 5.00, 0.58] SAE B |
| Shaft type | Straight |
| Shaft dimension | Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key | Square key, 5/16 x 1 5/8 inch |
| Main port thread type | UN / UNF |
| Main port style | Sideport - staggered |
| Main port dimension | 1 1/16 - 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Model number | displacement | Mount | shaft | ports | Features |
| 109-1101 | 7.9 | 4 Bolt SAE B | 1-1/4 in. Straight Keyed | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
| 109-1102 | 9.9 | 4 Bolt SAE B | 1-1/4 in. Straight Keyed | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
| 109-1103 | 12.5 | 4 Bolt SAE B | 1-1/4 in. Straight Keyed | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
| 109-1105 | 19 | 4 Bolt SAE B | 1-1/4 in. Straight Keyed | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
| 109-1106 | 24 | 4 Bolt SAE B | 1-1/4 in. Straight Keyed | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
| 109-1110 | 12.5 | 4 Bolt SAE B | 1-5/8 in. Tapered | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
| 109-1212 | 30 | 4 Bolt SAE B | 1-1/4 in. Straight Keyed | 1-1/16-12 St.Thd. O-Ring | Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings |
