MPC70 Series Sectional Control Valve 70LPM 250Bar Open Center For Russian Tractors
MPC70 Series Sectional Control Valve 70LPM 250Bar Open Center for Russian Tractors
Quick View:
Directional control valve MPC70 is used in hydraulic systems with flows up to 70 l/min. The segmented design makes the valve
flexible and easy to adapt to various applications
Features:
- Open centre
- Flow 70 l/min
- Rated inlet pressure 200 bar
- Maximum pressure at ports A and B 250 bar
- Number of segments 1-7 pieces
- Manual control
Applications:
- Tractors
- Municipal vehicles
- Motor graders

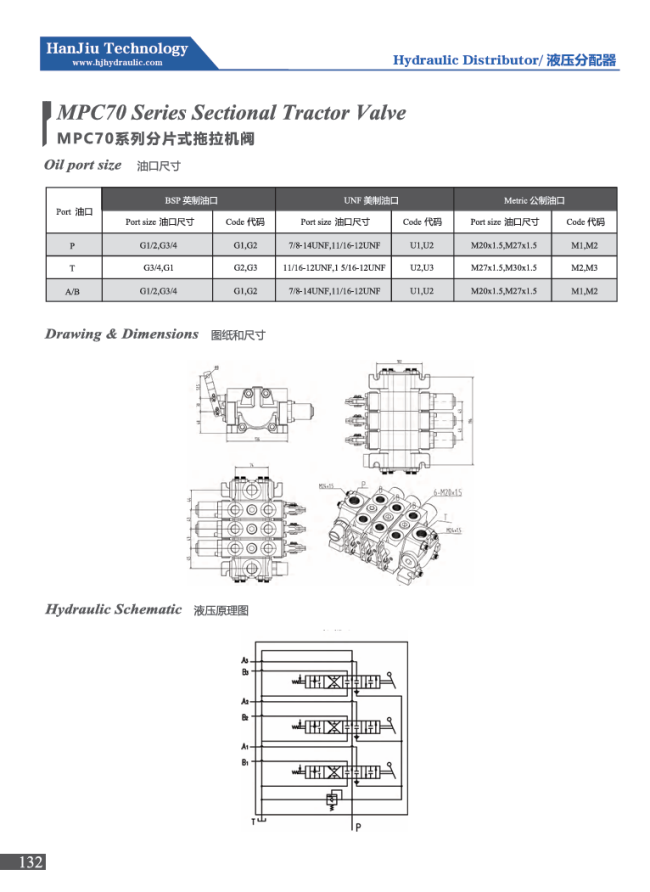

Drawing:

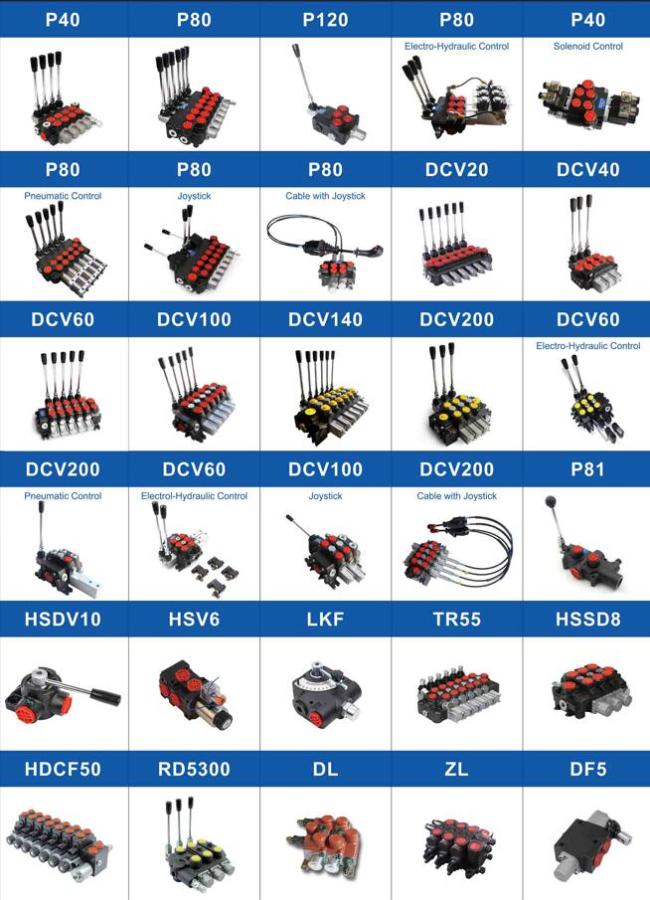

More series available:
| Type | Number of sections | Nominal flow rate | Max. inlet pressure (P) | Max. work port press. (A/B) |
| l/min | bar | bar | ||
| p40 | 1-8 | 45 | 250 | 320 |
| p80 | 1-8 | 80 | 250 | 320 |
| Hssd5 | 1-8 | 45 | 290 | 320 |
| Hssd11 | 1-8 | 75 | 280 | 320 |
| zt12 | 1-8 | 45 | 290 | 320 |
| zt20 | 1-8 | 90 | 280 | 320 |
| Hsv6 | 1-3 | 45 | 250 | 320 |
| Hsdv10 | 1 | 90 | 300 | 350 |
