6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
Price:
90 USD
MOQ:
100 Pieces
Delivery Time:
35 - 45 work days
Brand:
HANJIU
Product Description

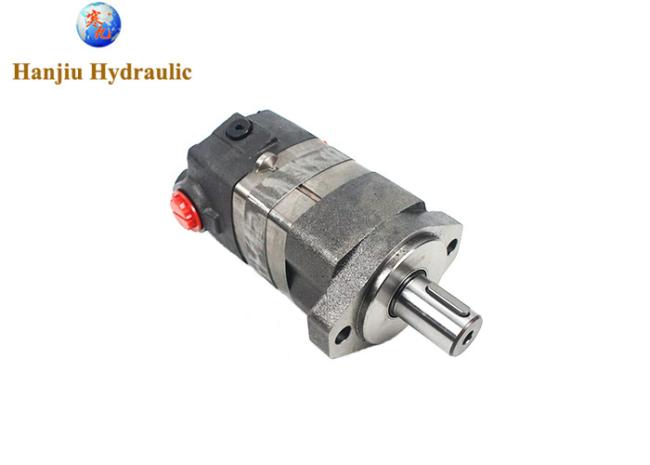

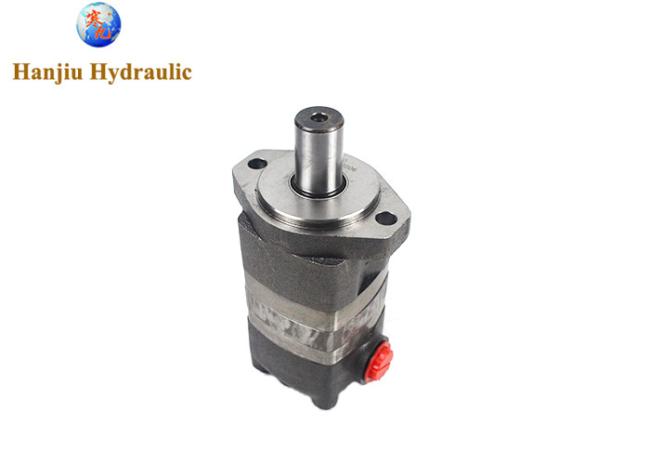

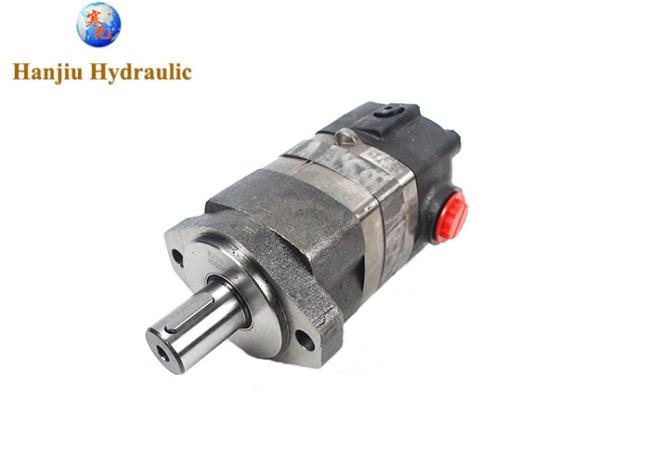

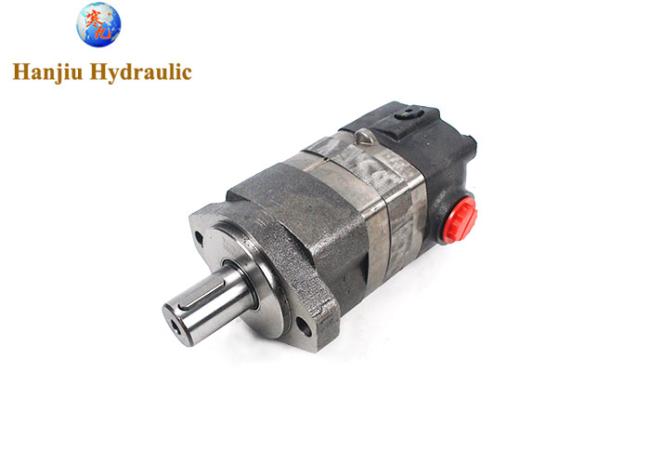

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 for Petroleum Trailer
Quick review:
Model No.: BMK2-100= 104-1062-006
- Rotation Reversible
- Mount Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A)
- Shaft :1 1/4 Inch Straight
- Ports 1.0625-12 UN-2B SAE O-Ring Ports - Ports Oriented 180 Deg To Each Other
- Case Drain .4375-20 UNF-2B SAE O-Ring Port
| displacement | 100 cubic centimetre per revolution |
| speed | 742-924 rpm |
| torque | 295-445 nm |
| mounting |
2 Bolt SAE A Flange
|
| shaft | 1 1/4 Inch Straight |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
| 80cc | 100cc | 130cc | 160cc | 195cc | 245cc | 305cc | 395cc | 490cc |
| 104-1001-006 | 104-1002-006 | 104-1003-006 | 104-1004-006 | 104-1005-006 | 104-1006-006 | 104-1007-006 | 104-1143-006 | |
| 104-1037-006 | 104-1038-006 | 104-1039-006 | 104-1040-006 | 104-1041-006 | 104-1042-006 | 104-1043-006 | 104-1044-006 | |
| 104-1022-006 | 104-1023-006 | 104-1024-006 | 104-1025-006 | 104-1026-006 | 104-1027-006 | 104-1028-006 | 104-1228-006 | 104-1420-006 |
| 104-1061-006 | 104-1062-006 | 104-1063-006 | 104-1064-006 | 104-1065-006 | 104-1066-006 | 104-1067-006 | 104-1068-006 | 104-1421-006 |
| 104-1029-006 | 104-1030-006 | 104-1031-006 | 104-1032-006 | 104-1033-006 | 104-1034-006 | 104-1035-006 | 104-1229-006 | 104-1422-006 |
| 104-1087-006 | 104-1088-006 | 104-1089-006 | 104-1090-006 | 104-1091-006 | 104-1092-006 | 104-1093-006 | 104-1094-006 | 104-1423-006 |
