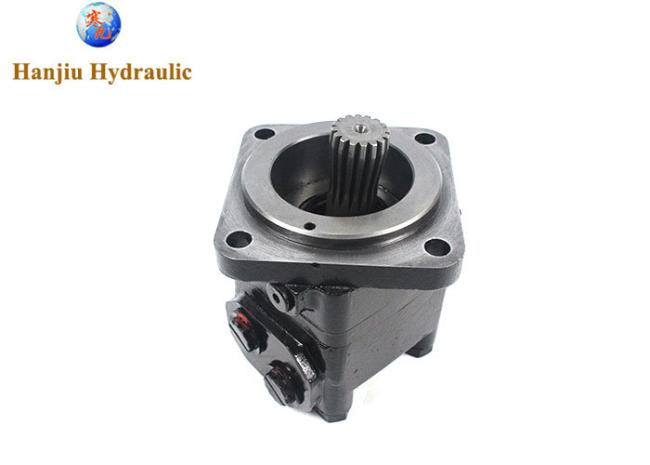

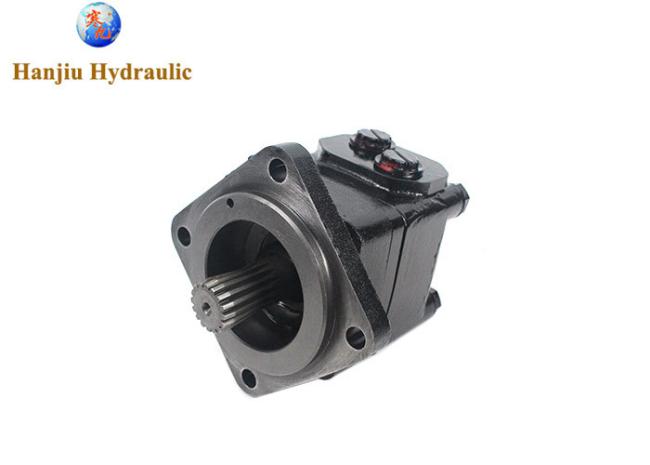

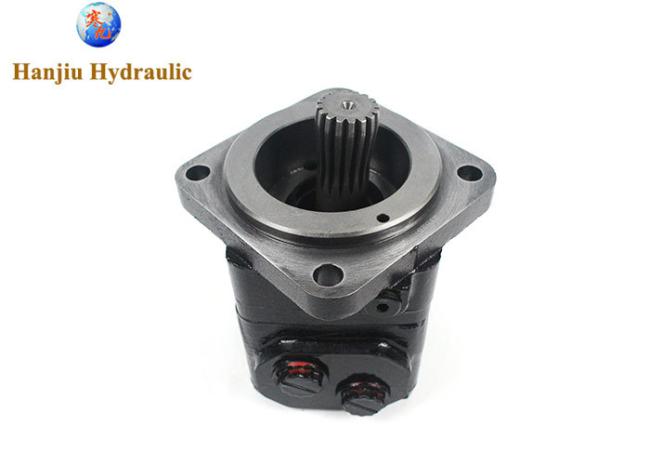

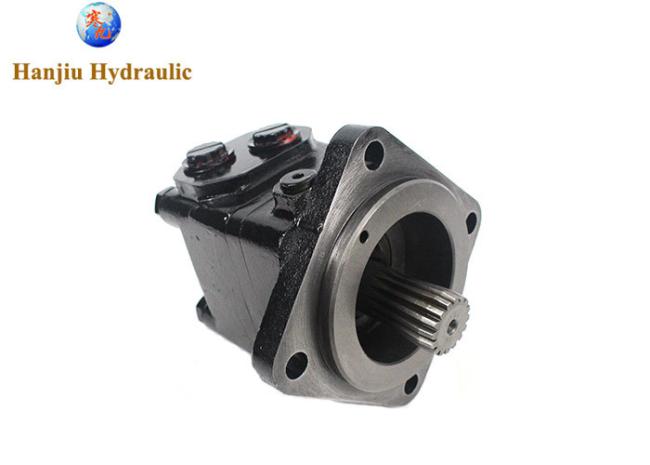

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor
Orbit Hydraulic Motor BMTS250 Bearingless motor interchangeable charlynn 6000 series motor
Details
the order code BMTS-250-E-S1
- Output volume (cc/rev): 250cc
- max r.p.m.: 600
- Torque max. (Nm): 730/880
- Power max. (kW): 34.5
- Pressure difference (bar): 200
- Inlet pressure (bar): 280
- Volume flow max. (l/min): 125
- Engine version: with non-return valves
- Connection: 1 1/16-12UN
- Leakage oil connection: 7/16-UNF
Main Specifications:
| Type | BMT 160 |
BMT 200 |
BMT 230 |
BMT 250 |
BMT 315 |
BMT 400 |
BMT 500 |
BMT 630 |
BMT 800 |
|
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) |
cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
HANJIU Technology is constantly increasing its product range and customer base with a customer and quality-oriented perspective and continues to grow. Our company, which set out with the principles of Respect for Humanity and Society, Respect for the Environment, Respect for the Product, Respect for Labor, and Ethical Trade Ethics, has the aim of representing the world's most respected quality brands in its sector on this very difficult and long path.
