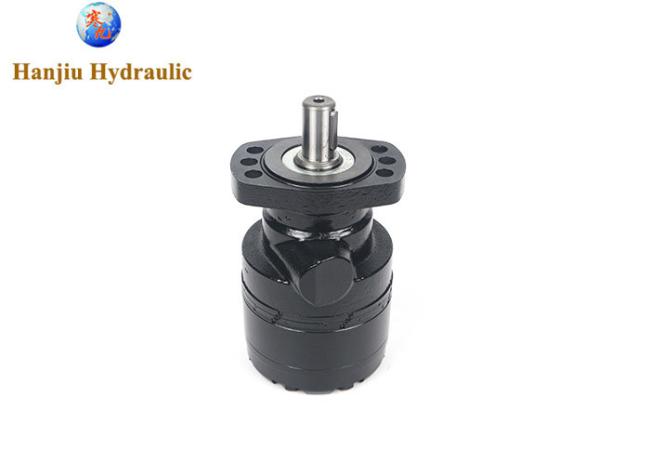

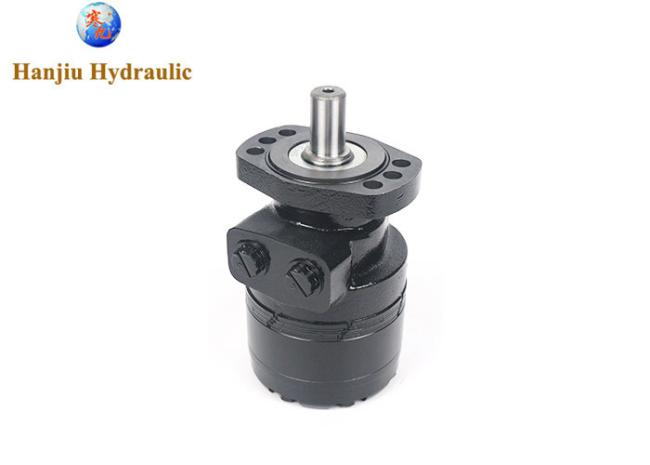

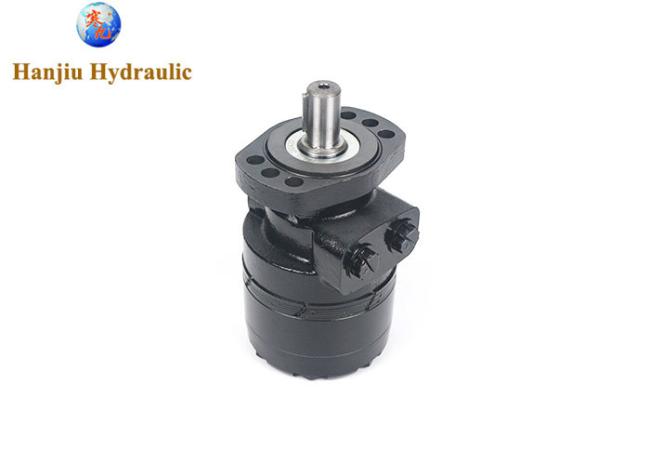

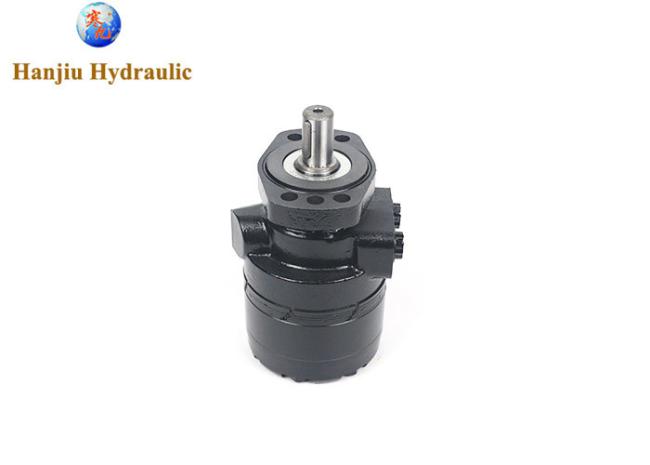

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor - 28.18 in³/rev - Magneto - 1" Keyed - SAE Ports - CW - BMER-2-475-FS-RW-S
Quick review:
Model no.: BMER-2-475-FS-RW-R-B
matching White motor RE530/531 ;Parker TG series motor
| displacement | 470 ml/r |
| flange | wheel mount |
| pilot | 82.55*5 |
| ports | BMER-2-475-FS-RW-R-B |
| output shaft |
Shaft RW: Cylindrical shaft Ø25.4
Parallel key 6.35x6.35x31.75
|
| rotation | right |
| paint | black |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
The Orbital motor specifications system is like a precision gear set, where the optimization of each parameter affects the overall performance. From the basic formulas of pressure and displacement to the in-depth synergy of materials and processes, parameter selection is not only the result of scientific calculations, but also the crystallization of engineering experience. With the penetration of intelligence and new material technology, the parameter boundaries are constantly being broken through, pushing this classic hydraulic component towards a new stage of higher efficiency and reliability.
