Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Price:
Negotiable
MOQ:
50 Sets
Delivery Time:
10-15 work days
Brand:
HANJIU
Product Description

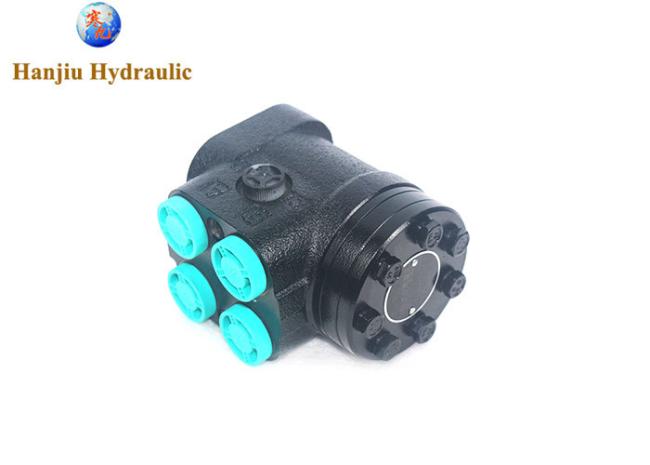

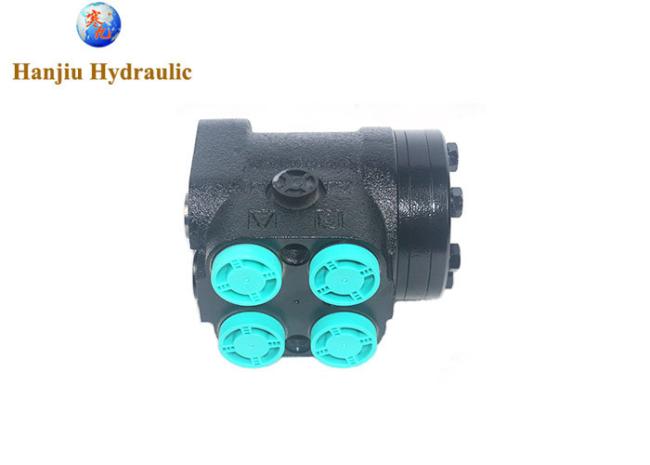

Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Hanjiu hydraulic supply OSPB ON, CN ,LS series hydraulic steering units,
used on wheel loaders, backhoe loaders, pushback tractors, forklifts....
same quality, high performance
specification:
| Parameters | Series 101-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| displacement | 80cc |
| type | 101s series |
| control type | load sensing |
| max pressure | 17.5mpa |
| max back pressure | 2.5mpa |
| port threads | M20*1.5 o-ring |
| LS ports | M12*1.5o-ring |
Hanjiu technology produce the a series hydraulic steering units/hydraulic orbitrols,
with the same specification as OSPM, OSPB, OSPC, HKU, HKUS,XCEL-45
widely used on tractors, backhoe loaders, wheelloaders...
109 series
101 series
101s series
060 series
