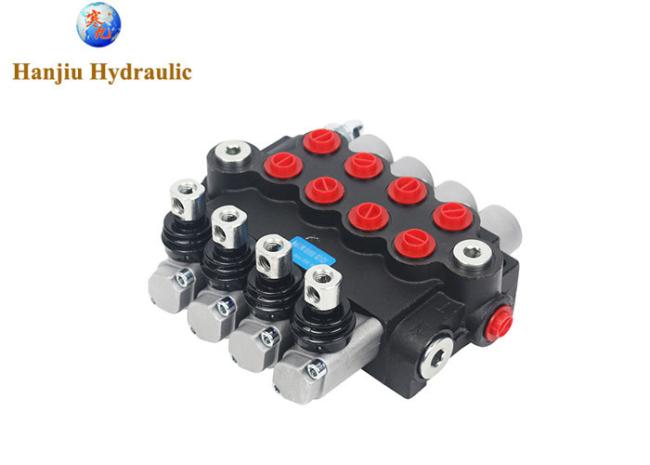

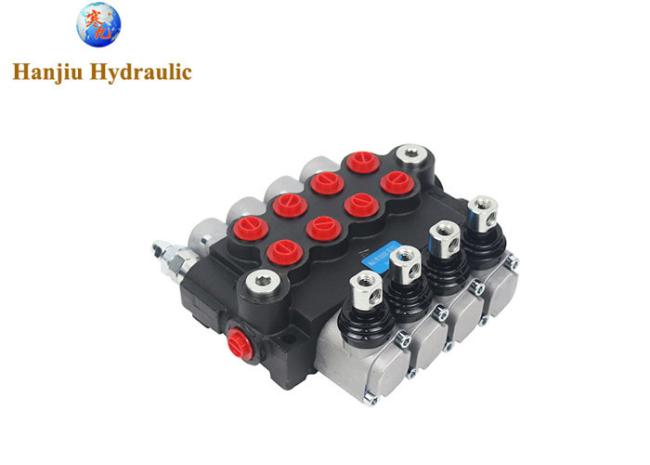

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
Price:
Contact the seller to get a quote
MOQ:
100 Sets
Delivery Time:
25 - 35 work days
Brand:
HANJIU
Product Description
4P40-1A1A1A1A1GKZ1 hydraulic direction valve 40liters, monoblock valves G3/8 ports size
type code
P40-4 manual spring type
Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8
| flow rate | 40 liters |
| number of spools | 4 spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G3/8 |
| spool type | 3 Positions, Double Acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G3/8 |
Different types

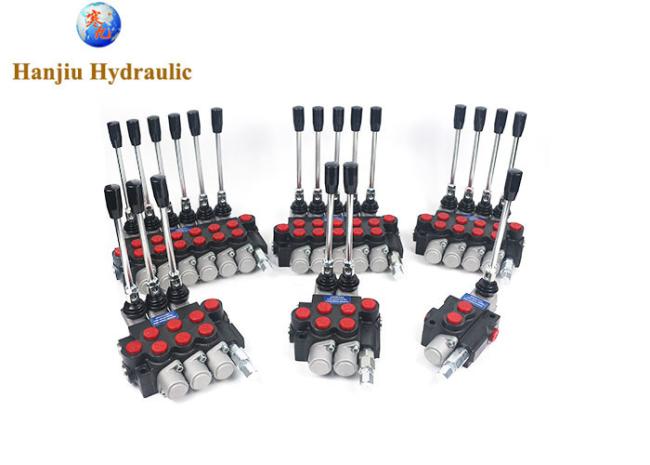

P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / RD500 series...
The valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.
if you are not sure about which valves you need,
pls feel free to contact us !
