HYDRAULIC MOTOR BMT SMT OMT 630 SHAFT 40mm for Sugar beet harvesters
Price:
Negotiable
MOQ:
20 Sets
Delivery Time:
Negotiable
Brand:
HANJIU
Product Description

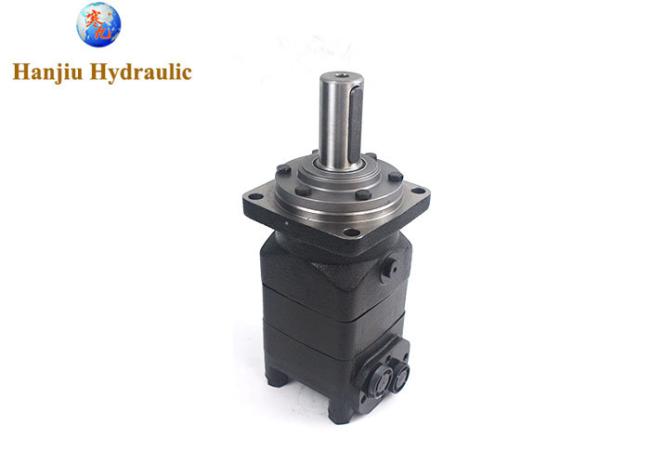

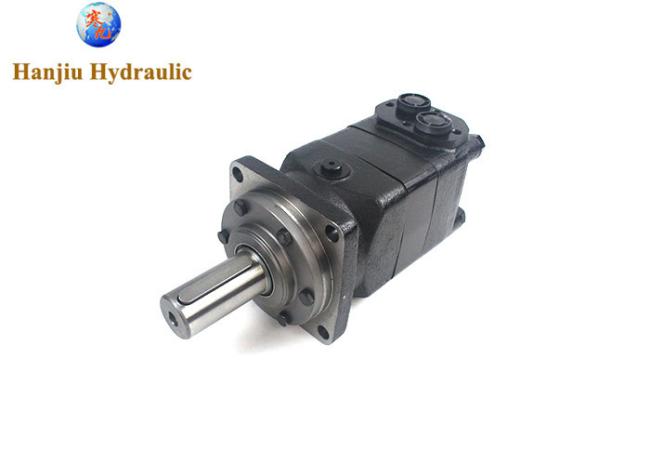

HYDRAULIC MOTOR BMT SMT OMT 630 SHAFT 40mm for Sugar beet harvesters
Product Specifications
| Attribute | Value |
|---|---|
| Categories | Hydraulic Heavy Motor |
| Name | BMV600 |
| Max. Output | cont.40kw/int.56kw |
| Max. Torque | cont.1660N.m/int.1940N.m |
| Flange | Square Flange |
| Shaft | key Shaft |
The HANJIU OMV630/BMV630 hydraulic gerotor motor is specifically designed for Holmer and Ropa sugar beet harvesters (for tiger 6s)
Technical Parameters
- Geometrical displacement: 666 cm³/r
- Max. Speed: 320/380 min⁻¹ [rpm]
- Max. Torque: 1660 Nm
- Max. Output: 40 kW
- Max. Oil flow: 200 l/min
- Max. Inlet pressure: 180 bar
BMV Series Specifications Comparison
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 |
|---|---|---|---|---|---|---|
| Geometric displacement (cm³/rev.) | 333 | 419 | 518 | 666 | 801 | 990 |
| Max. speed (rpm) | cont. 510 int. 630 |
cont. 500 int. 600 |
cont. 400 int. 480 |
cont. 320 int. 380 |
cont. 250 int. 300 |
cont. 200 int. 240 |
| Max. torque (N*m) | cont. 920 int. 1110 peak 1290 |
cont. 1180 int. 1410 peak 1640 |
cont. 1460 int. 1760 peak 2050 |
cont. 1660 int. 1940 peak 2210 |
cont. 1880 int. 2110 peak 2470 |
cont. 2015 int. 2280 peak 2400 |
| Max. output (kW) | cont. 38 int. 46 |
cont. 47 int. 56 |
cont. 47 int. 56 |
cont. 40 int. 56 |
cont. 33 int. 44 |
cont. 28.6 int. 40 |
| Max. pressure drop (MPa) | cont. 20 int. 24 peak 28 |
cont. 20 int. 24 peak 28 |
cont. 20 int. 24 peak 28 |
cont. 18 int. 21 peak 24 |
cont. 16 int. 18 peak 21 |
cont. 14 int. 16 peak 18 |
| Max. flow (L/min) | cont. 160 int. 200 |
cont. 200 int. 240 |
cont. 200 int. 240 |
cont. 200 int. 240 |
cont. 200 int. 240 |
cont. 200 int. 240 |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 |
