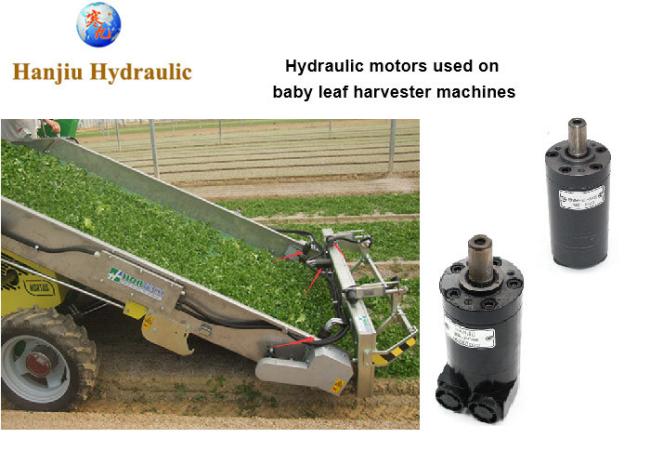

Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines
Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines
Product Details:
Brand:Hanjiu
type:OMM20/BMM20
shaft:key shaft
ports:side ports
or end ports
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
HANJIU Technology designs and produces hydraulic orbit motors for soil preparation, transplanting and harvest of vegetables.
It has a almost 20 – year experience in the hydraulic products field and it aspires to constantly renew, always taking new challenges and developing new markets.
Today it is present at more than 60 countries. The innovation technology is the company main goal: it has been always concentrating in the research of new high quality, innovative and eco-friendly products, able to assure a relevant reliability. Hanjiu technology always invests part of its resources in projects of R&D. The attention and support to the client is really relevant. The specialized and skilled workforce always guarantees a prompt and excellent after sale service.
